YR20RG-PQQ (1982)
Toyota Model-F

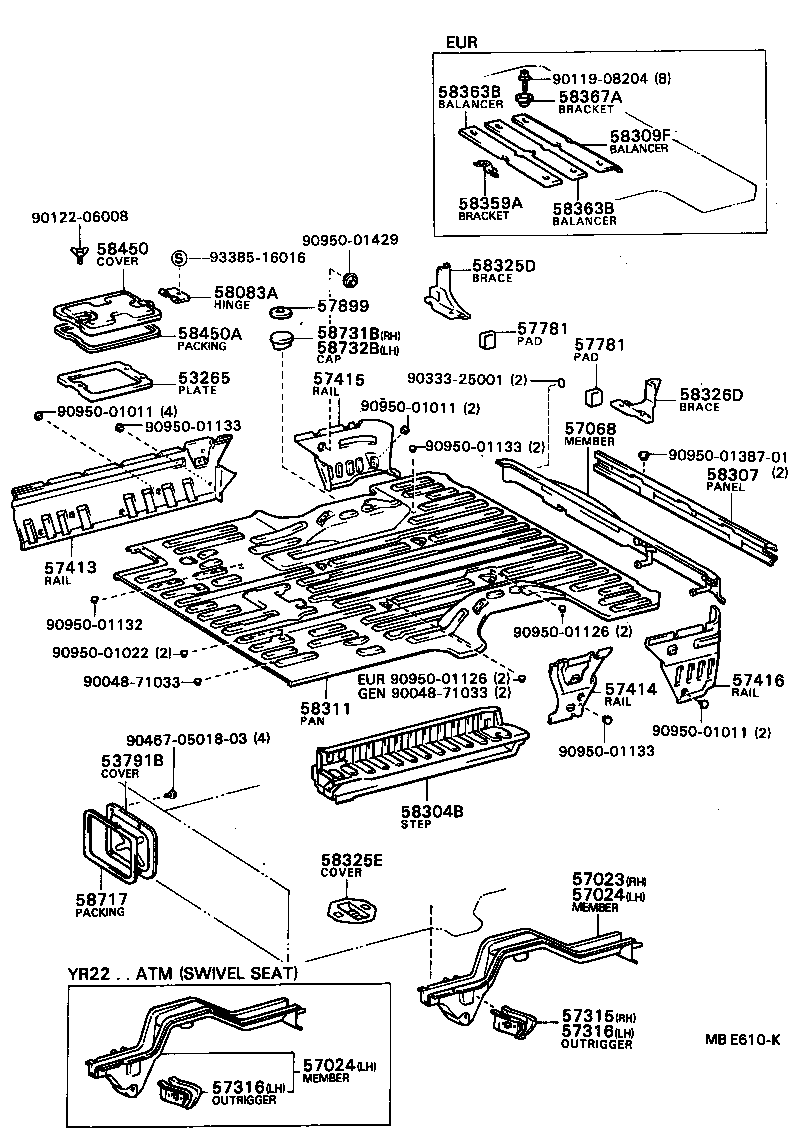

ILLUST NO. 1 OF 2(8211- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53265 - PLATE, BATTERY CARRIER MOUNTING, NO.2 | ||||
| 53265-87007 |
CR21,YR2#..RHD |
1 | ||
| 53791B - COVER, COOL AIR INTAKE HOLE | ||||
| 53791-87003 |
YR31;CR21,YR20,21..ARL,GEN;CR21,YR20,21..LHD..EUR |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-87004 |
CR21,YR2# |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-87002 |
CR21,YR2#..RHD..(ARL,EUR) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-87001 |
CR21,YR2#,31..RHD..(ARL,EUR) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-87001 |
CR21,YR2#..RHD |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-87001 |
CR21,YR2#..RHD |
1 | ||
| 57781 - PAD, DUST PROOF REAR FLOOR, NO.1 | ||||
| 57575-87002 |
CR21,YR2#,31 |
2 | ||
| 57781 - PAD, DUST PROOF REAR FLOOR, NO.1 | ||||
| 57575-87002 |
CR21,YR2#,31 |
2 | ||
| 58083A - HINGE SUB-ASSY, BATTERY SERVICE COVER, MALE | ||||
| 58083-87002 |
CR21,YR2#,31 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-87002 |
CR21,YR2#..RHD |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-87003 |
CR21,YR2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-87017 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 58325D - BRACE, REAR FLOOR PANEL, RH | ||||
| 58325-87001 |
CR21,YR2#,31 |
1 | ||
| 58326D - BRACE, REAR FLOOR PANEL, LH | ||||
| 58326-87001 |
CR21,YR2#,31 |
1 | ||
| 58450 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58209-87001 |
CR21,YR2#,31 |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-87002 |
CR21,YR2#,31 |
1 | ||
| 58717 - PACKING, COOLER AIR INLET COVER | ||||
| 58717-87004 |
YR31;CR21,YR20,21..ARL,GEN;CR21,YR20,21..LHD..EUR |
1 | ||
| 58731B - CAP, REAR ABSORBER, RH | ||||
| 58731-87001 |
CR21,YR2#,31 |
1 | ||
| 58732B - CAP, REAR ABSORBER, LH | ||||
| 58732-87001 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90048-71033 | ||||
| 90119-08204 | ||||
| 90122-06008 | ||||
| 90333-25001 | ||||
| 90467-0501803 | ||||
| 90950-01011 | ||||
| 90950-01022 | ||||
| 90950-01126 | ||||
| 90950-01132 | ||||
| 90950-01133 | ||||
| 90950-0138701 | ||||
| 90950-01429 | ||||
| 93385-16016 | ||||

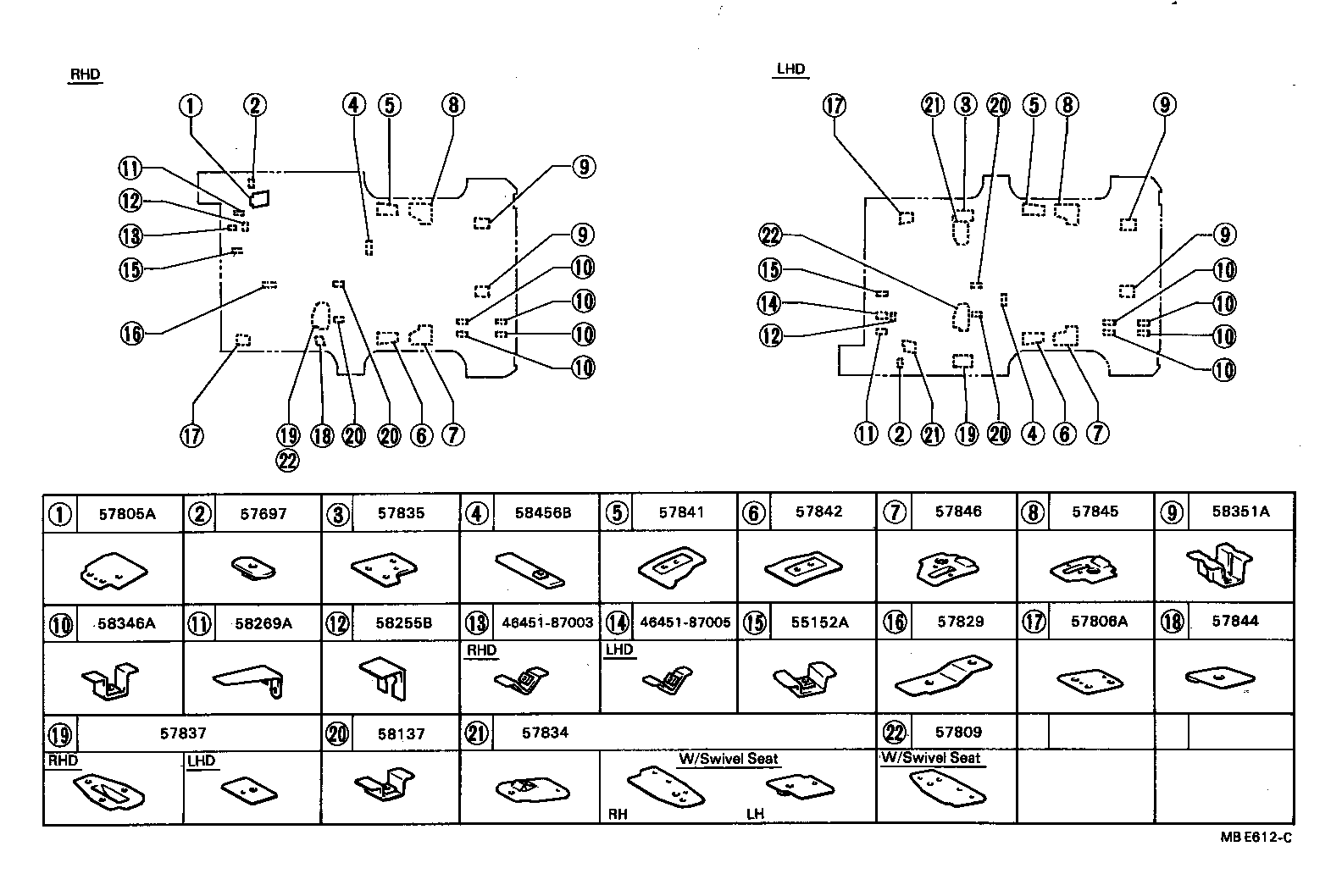

ILLUST NO. 2 OF 2(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55152A - BRACKET, 3 WAY ATTACHING | ||||
| 55152-87701 |
CR21,YR2#..RHD |
1 | ||
| 57805A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 | ||||
| 57805-87002 |
CR21,YR2#,31..RHD |
1 | ||
| 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 | ||||
| 57806-87001 |
CR21,YR20..RHD |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-87001 |
CR21,YR2#,31..RHD |
1 | ||
| 57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57837-87002 |
CR21,YR2#,31..RHD |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-87001 |
CR21,YR2# |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-87001 |
CR21,YR2# |
1 | ||
| 57844 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.6 | ||||
| 57844-87001 |
CR21,YR2#..RHD |
1 | ||
| 57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH | ||||
| 57845-87001 |
CR21,YR2# |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 57846-87001 |
CR21,YR2# |
1 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
CR21,YR2#,31 |
2 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58267-87003 |
CR21,YR2#,31 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-87002 |
CR21,YR2#,31 |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-87002 |
CR21,YR20 |
4 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-87003 |
CR21,YR2#,31 |
2 | ||
| 58456B - BRACKET, BRAKE TUBE CLAMP | ||||
| 58456-87002 |
YR20 |
1 | ||
| Common parts | ||||
| 46451-87003 | ||||
| 46451-87005 | ||||
