YR20RG-PQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )2Y#,3Y#,4YEC

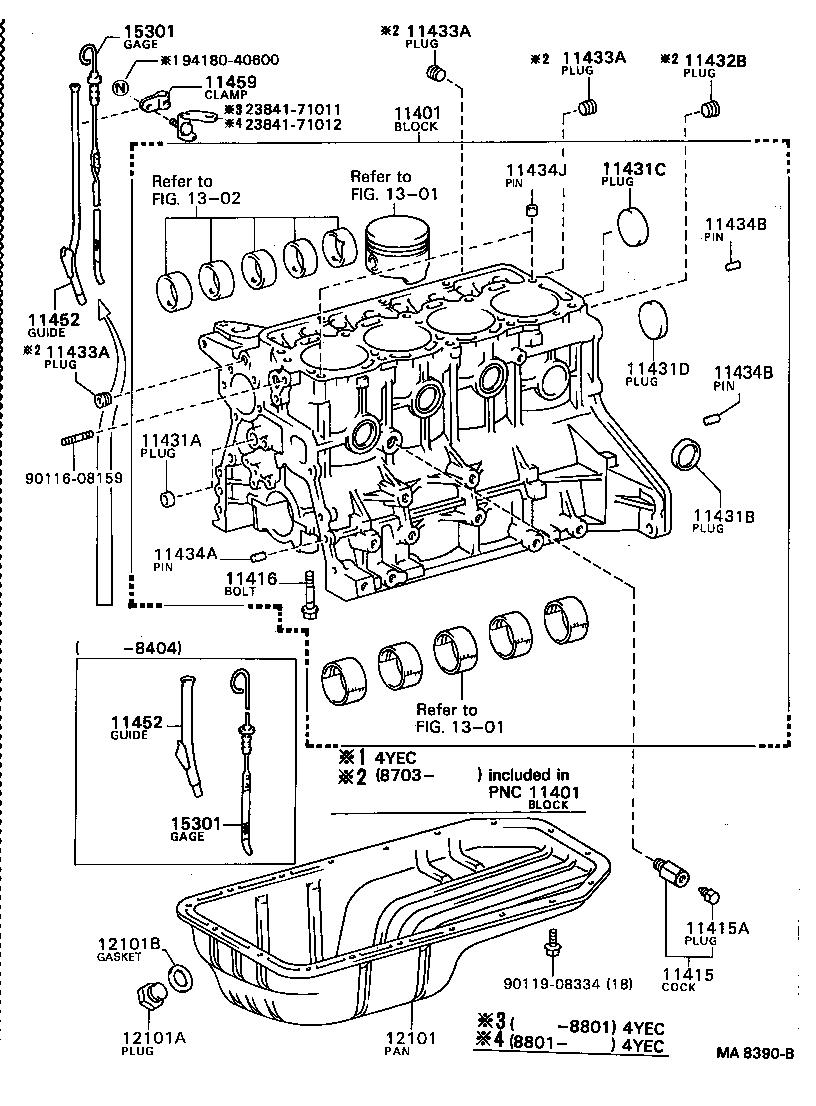

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 15301 2384171011 2384171012 9011608159 9011908334 9418040600
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79065

2Y#..YR20

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

2Y#,3Y#..YR2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

2Y#,3Y#..YR2#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

2Y#,3Y#,4YEC..YR2#,31

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-01800

2Y#,3Y#,4YEC..YR2#,31

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2Y#,3Y#,4YEC..YR2#,31

OD=35

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2Y#,3Y#,4YEC..YR2#,31

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-45000

2Y#,3Y#,4YEC..YR2#,31

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53002

2Y#,3Y#..YR2#

 1
11433A - PLUG, STRAIGHT, NO.1
90344-51014

2Y#,3Y#..YR2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51014

2Y#,3Y#..YR2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51014

2Y#,3Y#..YR2#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

2Y#,3Y#,4YEC..YR2#,31

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2Y#,3Y#,4YEC..YR2#,31

L=18,OD=8,L=18,OD=8

 2
90250-10113

2Y#,3Y#,4YEC..YR2#,31

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2Y#,3Y#,4YEC..YR2#,31

L=18,OD=8,L=18,OD=8

 2
90250-10113

2Y#,3Y#,4YEC..YR2#,31

L=22,OD=10,L=22,OD=10

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

2Y#,3Y#,4YEC..YR2#,31

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71010

2Y#,3Y#..YR2#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-71010

2Y#,3Y#..YR2#

 1
12101 - PAN SUB-ASSY, OIL
12101-71010

2Y#,3Y#..YR2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2Y#,3Y#..YR2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

2Y#,3Y#..YR2#

ID=18

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71010

2Y#,3Y#..YR2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71010

2Y#,3Y#..YR2#

 1
Common parts
23841-71011
23841-71012
90116-08159
90119-08334
94180-40600
Linked diagrams
1301
1302
