YR20RG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

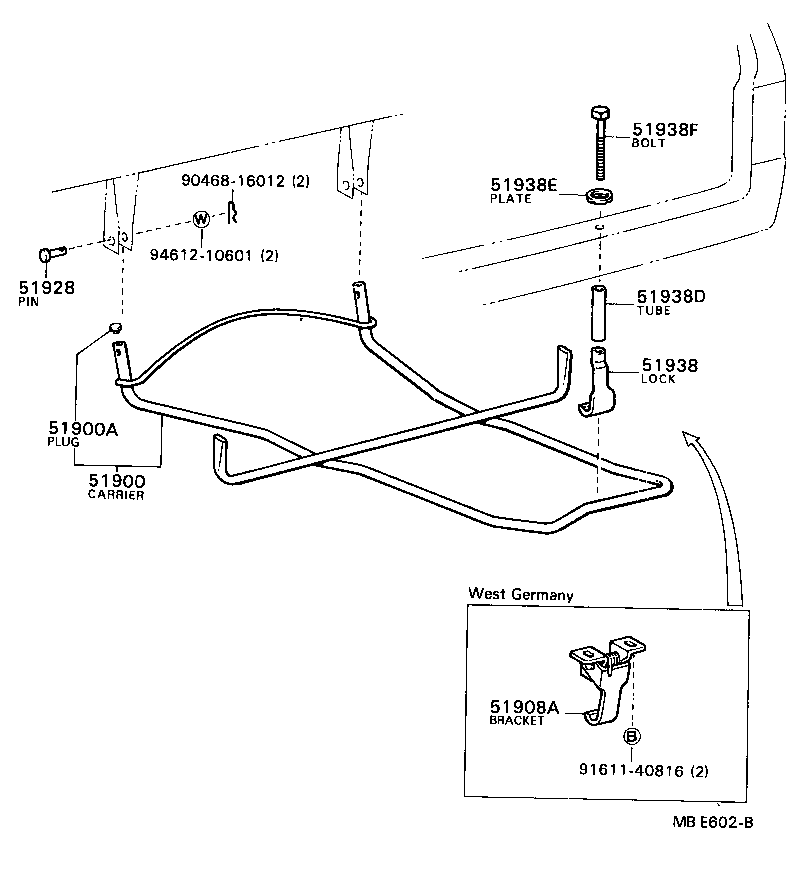

Click highlighted areas on diagram

diagram 51900 51900A 51908A 51928 51938 51938D 51938E 51938F 9046816012 9161140816 9461210601
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-28020

CR21,YR2#

 1
51928 - PIN, SPARE WHEEL CARRIER
90240-06002

CR21,YR2#,31

 2
51938 - LOCK, SPARE WHEEL CARRIER
51938-28020

CR21,YR2#

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17033

CR21,YR2#

 1
51938E - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

CR21,YR2#,31

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90101-12101

CR21,YR2#

 1
Common parts
90468-16012
91611-40816
94612-10601
