YR20RG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )CR21,YR2#

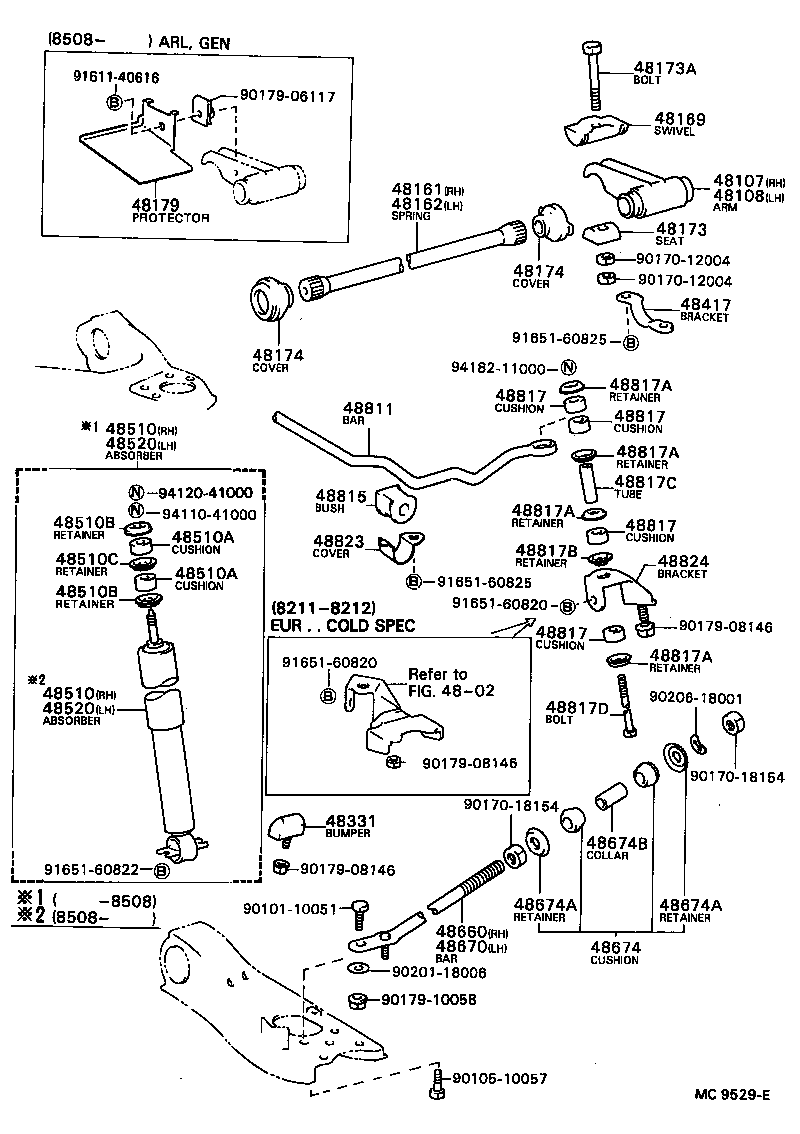

Click highlighted areas on diagram

diagram 4802 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48179 48331 48417 48510 48510 48510A 48510A 48510B 48510B 48510C 48520 48520 48660 48670 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817B 48817C 48817D 48823 48824 9010110051 9010510057 9017012004 9017012004 9017018154 9017018154 9017906117 9017908146 9017908146 9017908146 9017910058 9020118006 9020618001 9161140616 9165160820 9165160820 9165160822 9165160825 9165160825 9411041000 9412041000 9418211000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-28010

CR21,YR2#,31

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-28010

CR21,YR2#,31

 1
48161 - SPRING, TORSION BAR, RH
48161-28010

CR21,YR2#

 1
48162 - SPRING, TORSION BAR, LH
48162-28010

CR21,YR2#

 1
48169 - SWIVEL, ANCHOR ARM
48169-28010

CR21,YR2#

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

CR21,YR2#,31

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12096

CR21,YR2#,31

 2
48174 - COVER, TORSION BAR DUST
48174-27010

CR21,YR2#,31

FR

 2
48175-27010

CR21,YR2#,31

RR

 2
48174 - COVER, TORSION BAR DUST
48174-27010

CR21,YR2#,31

FR

 2
48175-27010

CR21,YR2#,31

RR

 2
48331 - BUMPER, FRONT SPRING, NO.1
48305-39015

CR21,YR2#,31

 1
48417 - BRACKET, SPRING
48417-28030

CR21,YR2#,31

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29275

CR21,YR2#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29275

CR21,YR2#

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CR21,YR2#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CR21,YR2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CR21,YR2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CR21,YR2#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

CR21,YR2#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29275

CR21,YR2#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29275

CR21,YR2#

 1
48660 - BAR ASSY, STRUT, RH
48660-28010

CR21,YR2#

 1
48670 - BAR ASSY, STRUT, LH
48670-28010

CR21,YR2#

 1
48674 - CUSHION, STRUT BAR
48674-29026

CR21,YR2#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CR21,YR2#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CR21,YR2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18002

CR21,YR2#

 2
48811 - BAR, STABILIZER, FRONT
48811-28040

CR21,YR2#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-28010

CR21,YR2#

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

CR21,YR2#,31

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

CR21,YR2#,31

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

CR21,YR2#,31

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

CR21,YR2#,31

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

CR21,YR2#,31

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

CR21,YR2#,31

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

CR21,YR2#,31

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

CR21,YR2#,31

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14004

CR21,YR2#

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-10090

CR21,YR2#

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48823-28020

CR21,YR2#

 2
48824 - BRACKET, STABILIZER, FRONT
48829-28020

CR21,YR2#

LH,EXCL COLD SPEC

 1
48824-28020

CR21,YR2#

RH,EXCL COLD,SPEC

 1
Common parts
90101-10051
90105-10057
90170-12004
90170-18154
90179-06117
90179-08146
90179-10058
90201-18006
90206-18001
91611-40616
91651-60820
91651-60822
91651-60825
94110-41000
94120-41000
94182-11000
Linked diagrams
4802
