YR20RG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

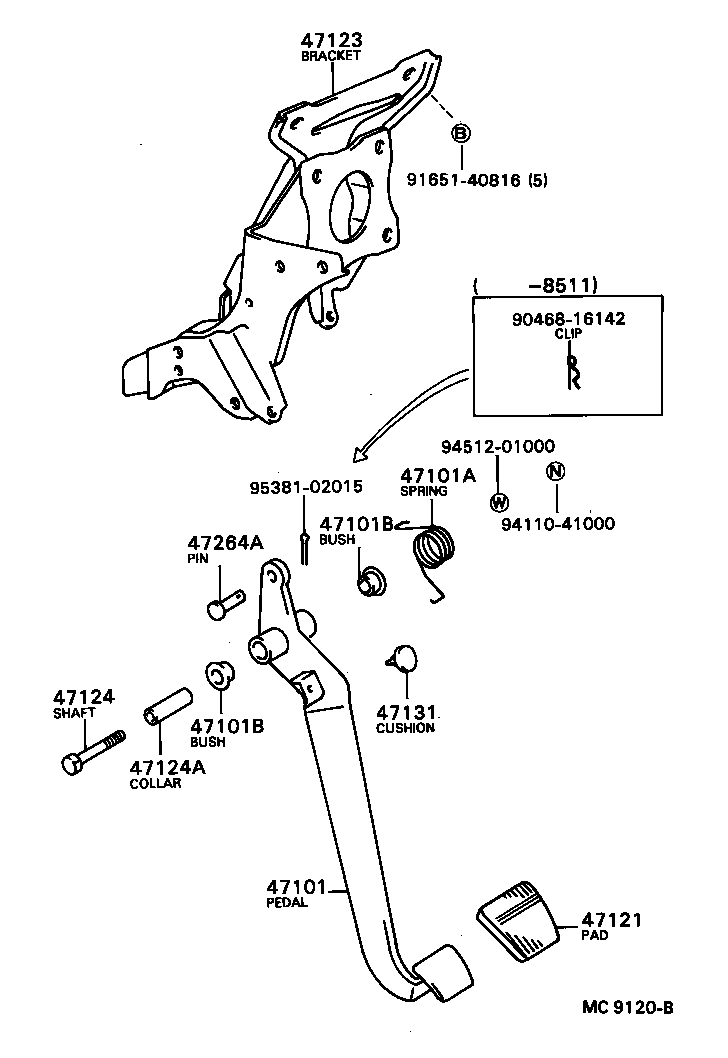

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816142 9165140816 9411041000 9451201000 9538102015
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-28030

YR22..ARL;YR22..GL..EUR;CR21,YR20,21,31

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35131

CR21,YR2#,31

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CR21,YR2#,31

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CR21,YR2#,31

 2
47121 - PAD, BRAKE PEDAL
31321-14020

CR21,YR2#,31

 1
47123 - BRACKET, BRAKE PEDAL
55106-87004

CR21,YR2#..RHD..5F

 1
47124 - SHAFT, BRAKE PEDAL
91111-51070

CR21,YR2#,31

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

CR21,YR2#,31

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

CR21,YR2#,31

 2
47264A - PIN(FOR PUSH ROD)
90240-08070

CR21,YR2#,31

 1
Common parts
90468-16142
91651-40816
94110-41000
94512-01000
95381-02015
