YR20RG-MQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

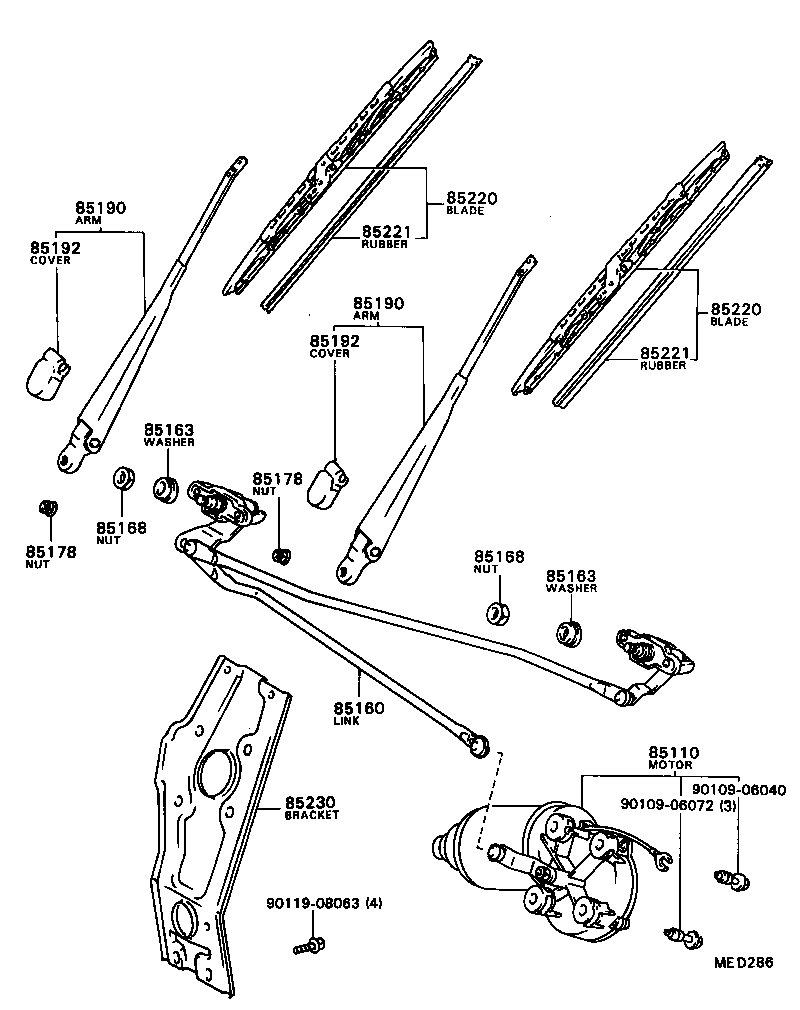

Click highlighted areas on diagram

diagram 85110 85160 85163 85163 85168 85168 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 85230 9010906040 9010906072 9011908063
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-87007

CR21,YR20..RHD..(ARL,GEN)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-87003

CR21,YR2#,31..RHD

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85179-87002

CR21,YR2#,31

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85179-87002

CR21,YR2#,31

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

CR21,YR2#,31

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

CR21,YR2#,31

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

CR21,YR2#,31

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

CR21,YR2#,31

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87003

YR20..RHD..(ARL,GEN)

RH

 1
85190-87010

CR21,YR20..RHD..(ARL,GEN)

RH

 1
85210-87002

CR21,YR20..RHD

LH

 1
85210-87001

YR20..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87003

YR20..RHD..(ARL,GEN)

RH

 1
85190-87010

CR21,YR20..RHD..(ARL,GEN)

RH

 1
85210-87002

CR21,YR20..RHD

LH

 1
85210-87001

YR20..RHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85195-28010

CR21,YR20

 2
85195-28010

CR21,YR20..RHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-28010

CR21,YR20

 2
85195-28010

CR21,YR20..RHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16160

CR21,YR20..RHD

RH

 1
85220-16170

CR21,YR20..RHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16160

CR21,YR20..RHD

RH

 1
85220-16170

CR21,YR20..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30080

CR21,YR20..RHD

 2
85221-30120

CR21,YR20..RHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30080

CR21,YR20..RHD

 2
85221-30120

CR21,YR20..RHD

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-87003

CR21,YR2#,31..RHD

 1
Common parts
90109-06040
90109-06072
90119-08063
