YR20RG-MQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)2Y#,3Y#

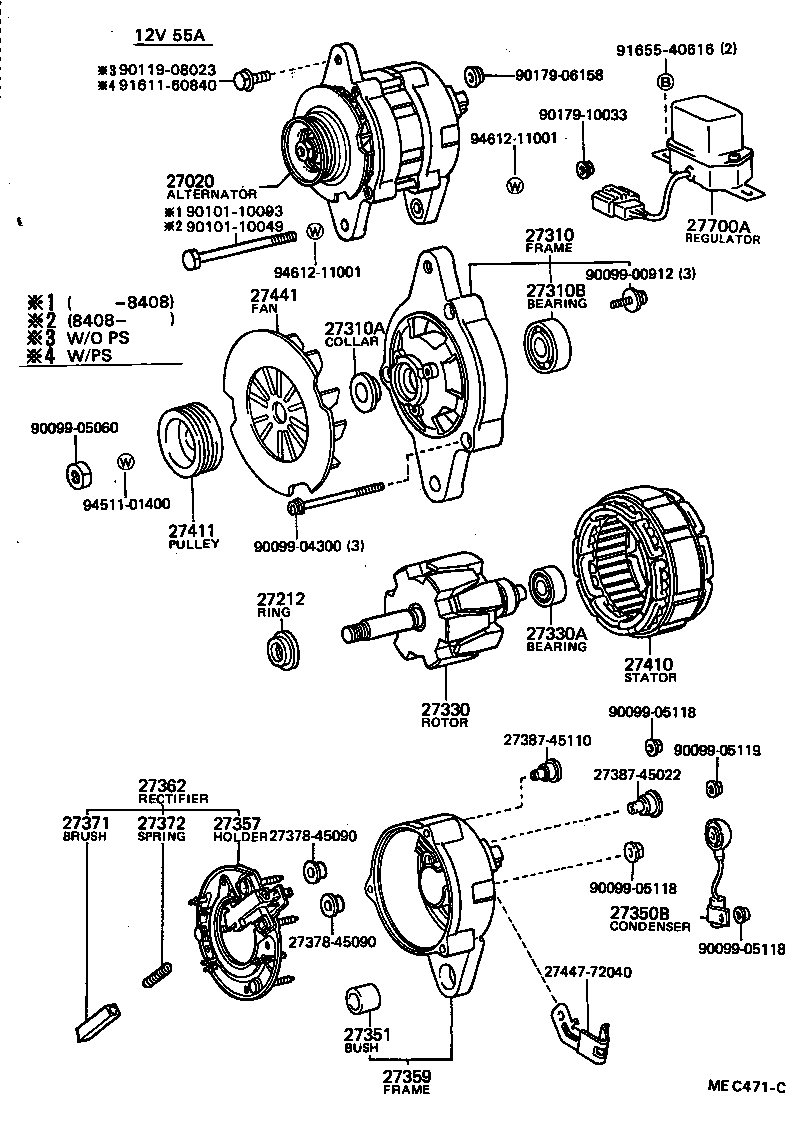

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 2744772040 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9010110093 9011908023 9017906158 9017910033 9161160840 9165540616 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72010

2Y#,3Y#..YR2#

12V 55A,12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

2Y#,3Y#..YR2#

12V 55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72040

2Y#..YR20

12V 55A

 1
27310-45110

2Y#..YR20

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-63030

2Y#..YR20

12V 55A

 1
27412-31040

2Y#..YR20

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

2Y#..YR20

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63010

2Y#,3Y#..YR2#

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

2Y#,3Y#..YR2#

12V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2Y#,3Y#..YR2#

12V 55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2Y#,3Y#..YR2#

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63011

2Y#,3Y#..YR2#

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72010

2Y#,3Y#..YR2#

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-63011

2Y#,3Y#..YR2#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2Y#,3Y#..YR2#

12V 55A

 1
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2Y#,3Y#..YR2#

12V 55A

 1
27410 - STATOR ASSY, ALTERNATOR
27410-43040

2Y#,3Y#..YR2#

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-72040

2Y#,3Y#..YR2#

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-63030

2Y#,3Y#..YR2#

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72010

2C,2Y#,3Y#..CR21,YR20,21

 1
Common parts
27378-45090
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10093
90119-08023
90179-06158
90179-10033
91611-60840
91655-40616
94511-01400
94612-11001
