YR20RG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

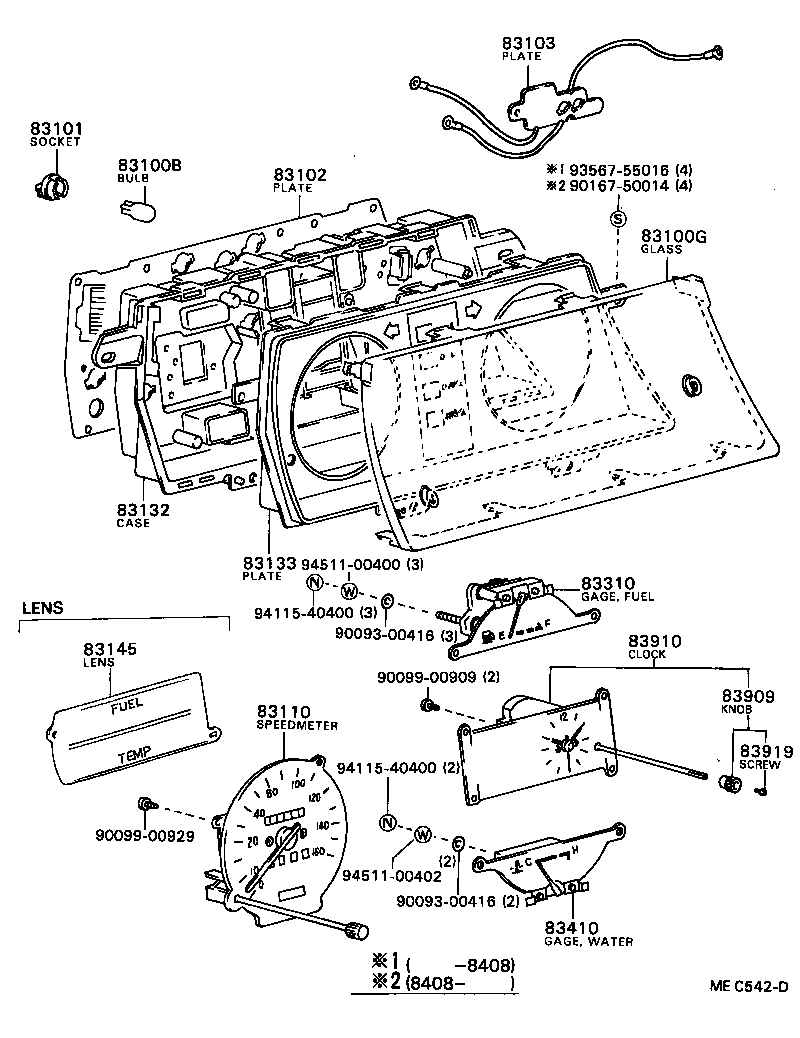

ILLUST NO. 1 OF 3(8211- )

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83102 83103 83110 83132 83133 83145 83310 83410 83909 83910 83919 9009300416 9009300416 9009900909 9009900929 9016750014 9356755016 9411540400 9411540400 9451100400 9451100402
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CR21,YR2#,31

12V 3.4W

 10
83109-28010

CR21,YR2#,31

12V3.4W W(GREEN CAP)

 4
83100G - GLASS, COMBINATION METER
83138-87003

YR20..DLX

 1
83138-87005

CR21,YR20..DLX..(EUR,GEN)

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

CR21,YR2#,31

12V 3.4W

 14
83101-28010

CR21,YR2#

12V 3.4W,W/GREEN CAP

 4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-28210

YR20..DLX..(EUR,GEN)

 1
83110 - SPEEDOMETER ASSY
83110-87009

YR20..RHD..DLX..EUR

MILE/KM

 1
83132 - CASE, COMBINATION METER
83132-87023

YR2#..DLX

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-87025

CR21,YR20..DLX..(EUR,GEN)

MILE/KM

 1
83145 - LENS, METER, NO.1
83145-87001

YR2#..DLX

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-87005

CR21,YR2#,31..DLX

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-28030

YR2#,31..DLX..(EUR,GEN)

 1
83909 - KNOB, CLOCK
83909-14012

CR21,YR20,21..DLX

 1
83910 - CLOCK ASSY
83910-87004

YR2#..RHD..DLX

 1
83919 - SCREW, CLOCK
83919-14012

CR21,YR20,21..DLX

 1
Common parts
90093-00416
90099-00909
90099-00929
90167-50014
93567-55016
94115-40400
94511-00400
94511-00402

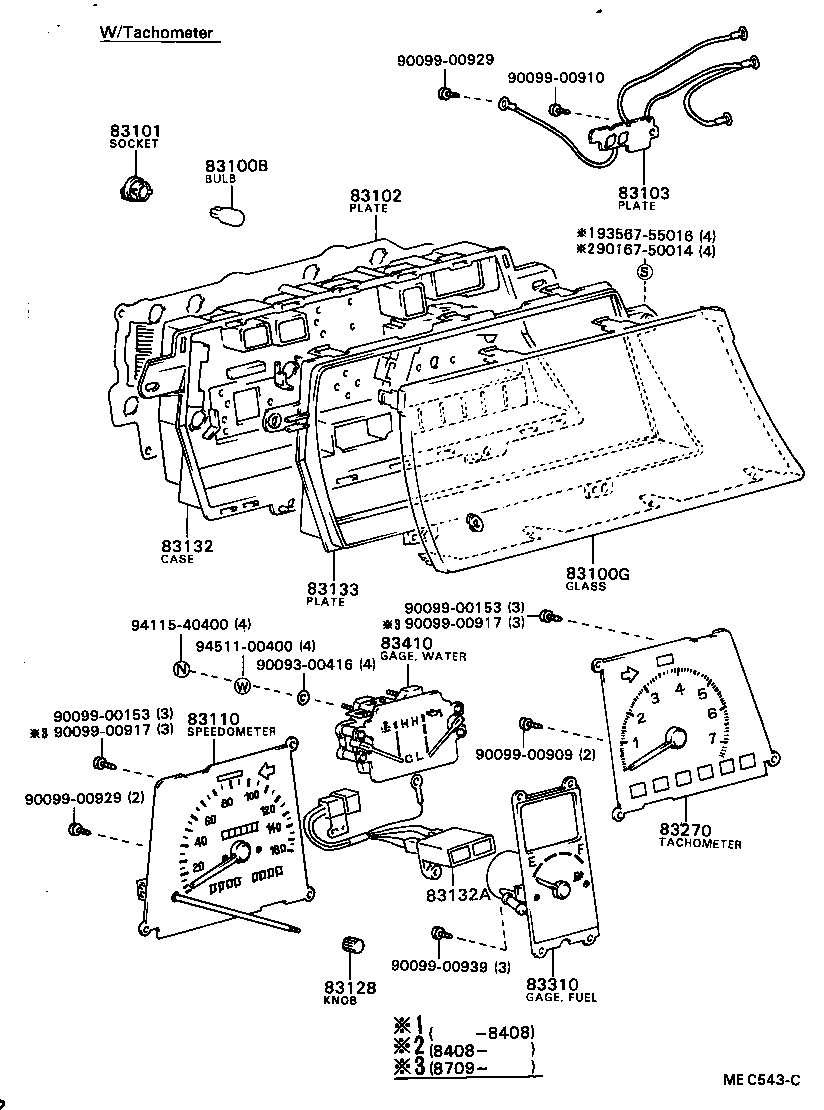

ILLUST NO. 1 OF 3(8211- )

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83102 83103 83110 83128 83132 83132A 83133 83270 83310 83410 9009300416 9009900153 9009900153 9009900909 9009900910 9009900917 9009900917 9009900929 9009900929 9009900939 9016750014 9356755016 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CR21,YR2#,31

12V 3.4W

 10
83109-28010

CR21,YR2#,31

12V3.4W W(GREEN CAP)

 4
83100G - GLASS, COMBINATION METER
83138-87003

YR20..DLX

 1
83138-87005

CR21,YR20..DLX..(EUR,GEN)

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

CR21,YR2#,31

12V 3.4W

 14
83101-28010

CR21,YR2#

12V 3.4W,W/GREEN CAP

 4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-28210

YR20..DLX..(EUR,GEN)

 1
83110 - SPEEDOMETER ASSY
83110-87009

YR20..RHD..DLX..EUR

MILE/KM

 1
83132 - CASE, COMBINATION METER
83132-87023

YR2#..DLX

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-87025

CR21,YR20..DLX..(EUR,GEN)

MILE/KM

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-87005

CR21,YR2#,31..DLX

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-28030

YR2#,31..DLX..(EUR,GEN)

 1
Common parts
90093-00416
90099-00153
90099-00909
90099-00910
90099-00917
90099-00929
90099-00939
90167-50014
93567-55016
94115-40400
94511-00400

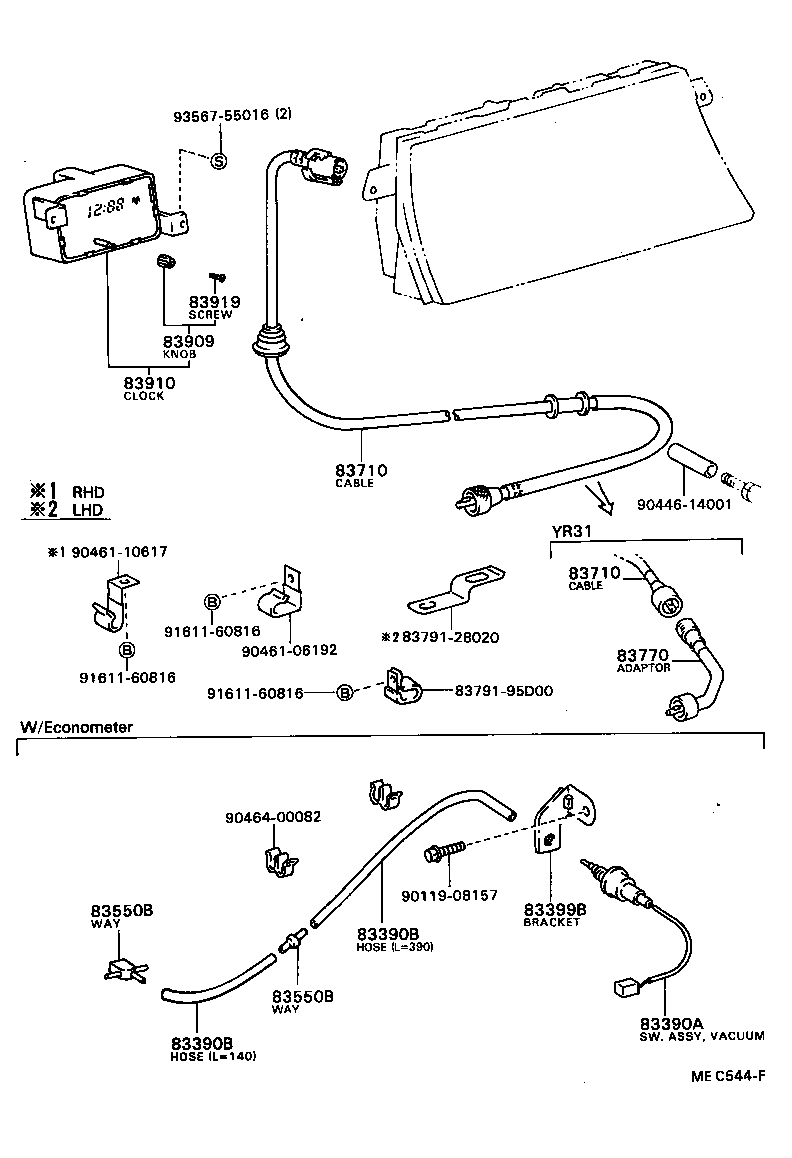

ILLUST NO. 2 OF 3(8211- )

Click highlighted areas on diagram

diagram 83390A 83390B 83390B 83399B 83550B 83550B 83710 83710 83770 8379128020 8379195D00 83909 83910 83919 9011908157 9044614001 9046106192 9046110617 9046400082 9161160816 9161160816 9161160816 9356755016
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-87005

YR2#..RHD..5F

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-87005

YR2#..RHD..5F

 1
83909 - KNOB, CLOCK
83909-14012

CR21,YR20,21..DLX

 1
83910 - CLOCK ASSY
83910-87004

YR2#..RHD..DLX

 1
83919 - SCREW, CLOCK
83919-14012

CR21,YR20,21..DLX

 1
Common parts
83791-28020
83791-95D00
90119-08157
90446-14001
90461-06192
90461-10617
90464-00082
91611-60816
93567-55016
