YR20RG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

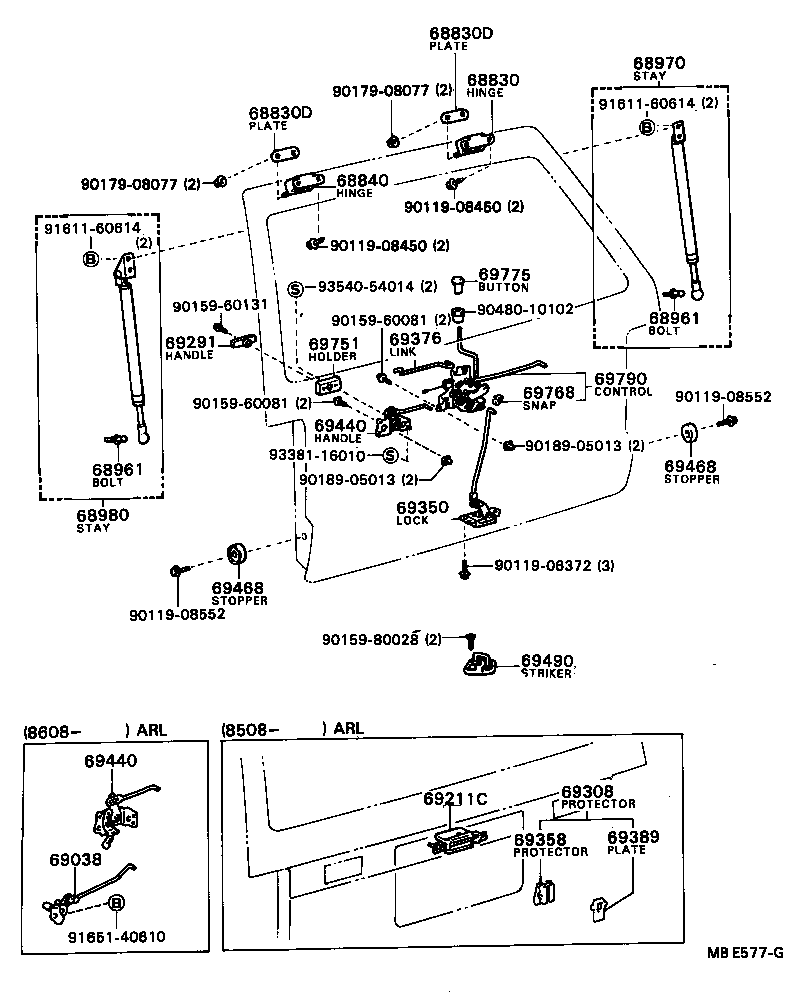

Click highlighted areas on diagram

diagram 68830 68830D 68830D 68840 68961 68961 68970 68980 69038 69211C 69291 69308 69350 69358 69376 69389 69440 69468 69468 69490 69751 69768 69775 69790 9011906372 9011908450 9011908450 9011908552 9011908552 9015960081 9015960081 9015960131 9015980028 9017908077 9017908077 9018905013 9018905013 9048010102 9161160614 9161160614 9165140610 9338116010 9354054014
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-87002

CR21,YR2#,31

W/*RW

 1
68801-87001

CR21,YR2#..DLX;YR20,21..GL..GEN

 1
68830D - PLATE, BACK DOOR HINGE
68715-87001

CR21,YR20,21,31

 2
68830D - PLATE, BACK DOOR HINGE
68715-87001

CR21,YR20,21,31

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-87001

CR21,YR2#,31

 1
68961 - BOLT, BACK DOOR STAY
68459-87501

CR21,YR2#

 2
68961 - BOLT, BACK DOOR STAY
68459-87501

CR21,YR2#

 2
68970 - STAY ASSY, BACK DOOR, RH
68950-29125

YR20..DLX;YR20..GL..GEN

 1
68950-29195

YR2#..GL..GEN;CR21,YR2#..DLX

 1
68950-29135

YR20

W/*RW OR COLD SPEC

 1
68950-29205

CR21,YR20..EUR

W/*RW & COLD SPEC

 1
68950-29205

YR2#

W/*RW OR COLD SPEC

 1
68950-29135

YR20..EUR

W/*RW & COLD SPEC

 1
68980 - STAY ASSY, BACK DOOR
68960-29115

YR20..EUR

W/*RW & COLD SPEC

 1
68960-29085

YR20

 1
68960-29135

CR21,YR20..EUR

W/*RW & COLD SPEC

 1
68960-29125

YR2#..GL..GEN;CR21,YR2#..DLX

 1
68960-29135

CR21,YR2#

W/*RW

 1
68960-29115

YR20

W/*RW

 1
68960-29085

YR20..DLX;YR20..GL..GEN

 1
69350 - LOCK ASSY, BACK DOOR
69350-87003

CR21,YR2#

 1
69468 - STOPPER, BACK DOOR SIDE MALE
69463-87002

CR21,YR2#,31

 2
69468 - STOPPER, BACK DOOR SIDE MALE
69463-87002

CR21,YR2#,31

 2
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-87002

CR21,YR2#,31

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
69377-13020

CR21,YR2#,31

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-87001

CR21,YR2#..DLX

 1
Common parts
90119-06372
90119-08450
90119-08552
90159-60081
90159-60131
90159-80028
90179-08077
90189-05013
90480-10102
91611-60614
91651-40610
93381-16010
93540-54014
