YR20RG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

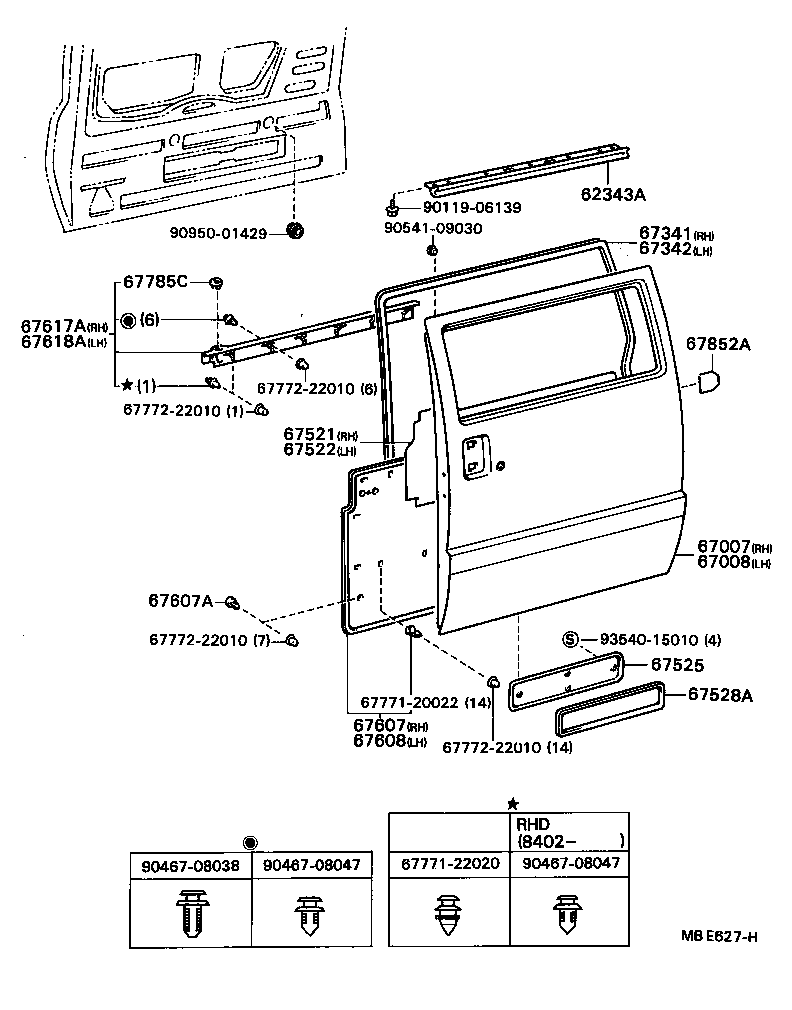

Click highlighted areas on diagram

diagram 62343A 67007 67008 67341 67342 67521 67522 67525 67528A 67607 67607A 67608 67617A 67618A 6777120022 6777122020 6777222010 6777222010 6777222010 6777222010 67785C 67852A 9011906139 9046708038 9046708047 9046708047 9054109030 9095001429 9354015010
Part # Description Qty Price
62343A - WEATHERSTRIP, SLIDE DOOR, NO.2
62343-87001

CR21,YR2#,31

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
67872-87001

CR21,YR2#,31..RHD

 1
67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67851-87002

CR21,YR2#,31..RHD

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-87001

CR21,YR20

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-87001

CR21,YR2#,31

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-1207805

CR21,YR20

BEIGE,BEIGE,TRIM4#

 3
90467-1207805

CR21,YR2#..RHD

BEIGE,BEIGE,TRIM4#

 6
90467-1207805

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 6
90467-0903305

YR20

BEIGE,BEIGE,TRIM4#

 3
67608 - BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
67640-87006

CR21,YR20..RHD..DLX

BEIGE

 1
67640-87012

CR21,YR2#..RHD..DLX

BEIGE

 1
67618A - BASE, REAR DOOR TRIM, LH
67618-8700105

CR21,YR2#..RHD..DLX

BEIGE,BEIGE,TRIM4#

 1
67785C - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR SLIDE DOOR)
69751-87001

CR21,YR2#,31

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-87001

CR21,YR2#,31

 1
Common parts
67771-20022
67771-22020
67772-22010
90119-06139
90467-08038
90467-08047
90541-09030
90950-01429
93540-15010
