YR20RG-MDQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

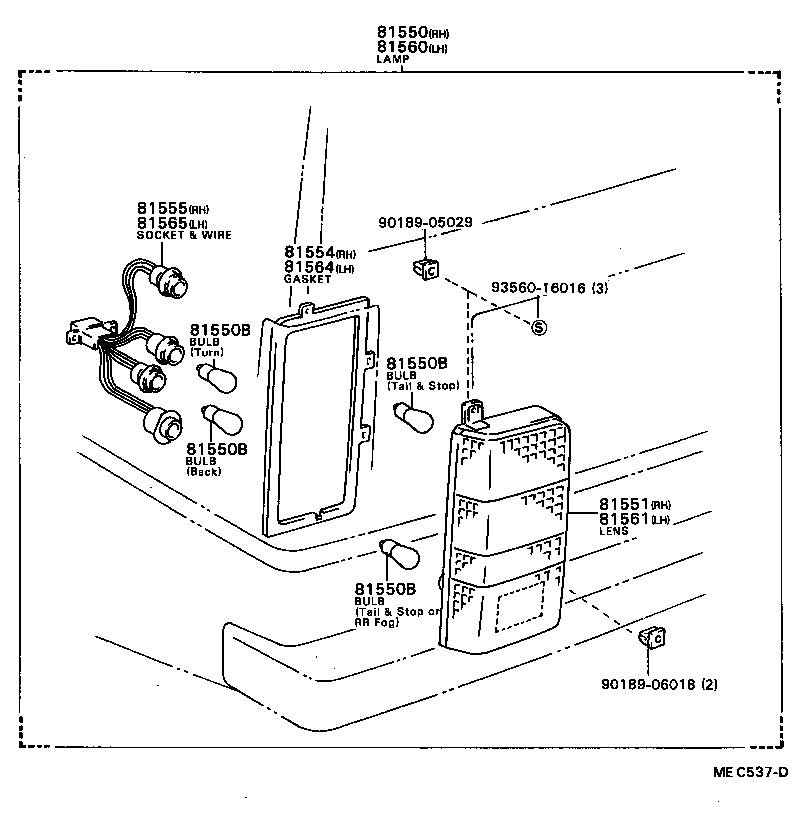

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9018905029 9018906018 9356016016
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80149

CR21,YR2#..ARL,GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CR21,YR2#,31..ARL,GEN

12V 23W,12V 23W

 4
99132-21210

CR21,YR2#,31

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CR21,YR2#,31..ARL,GEN

12V 23W,12V 23W

 4
99132-21210

CR21,YR2#,31

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CR21,YR2#,31..ARL,GEN

12V 23W,12V 23W

 4
99132-21210

CR21,YR2#,31

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CR21,YR2#,31..ARL,GEN

12V 23W,12V 23W

 4
99132-21210

CR21,YR2#,31

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-87003

CR21,YR2#..ARL,GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-87003

CR21,YR2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-87003

CR21,YR2#..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80154

CR21,YR2#..ARL,GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-87003

CR21,YR2#..ARL,GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-87003

CR21,YR2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-87003

CR21,YR2#..ARL,GEN

 1
Common parts
90189-05029
90189-06018
93560-16016
