YR20RG-MDQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8408)

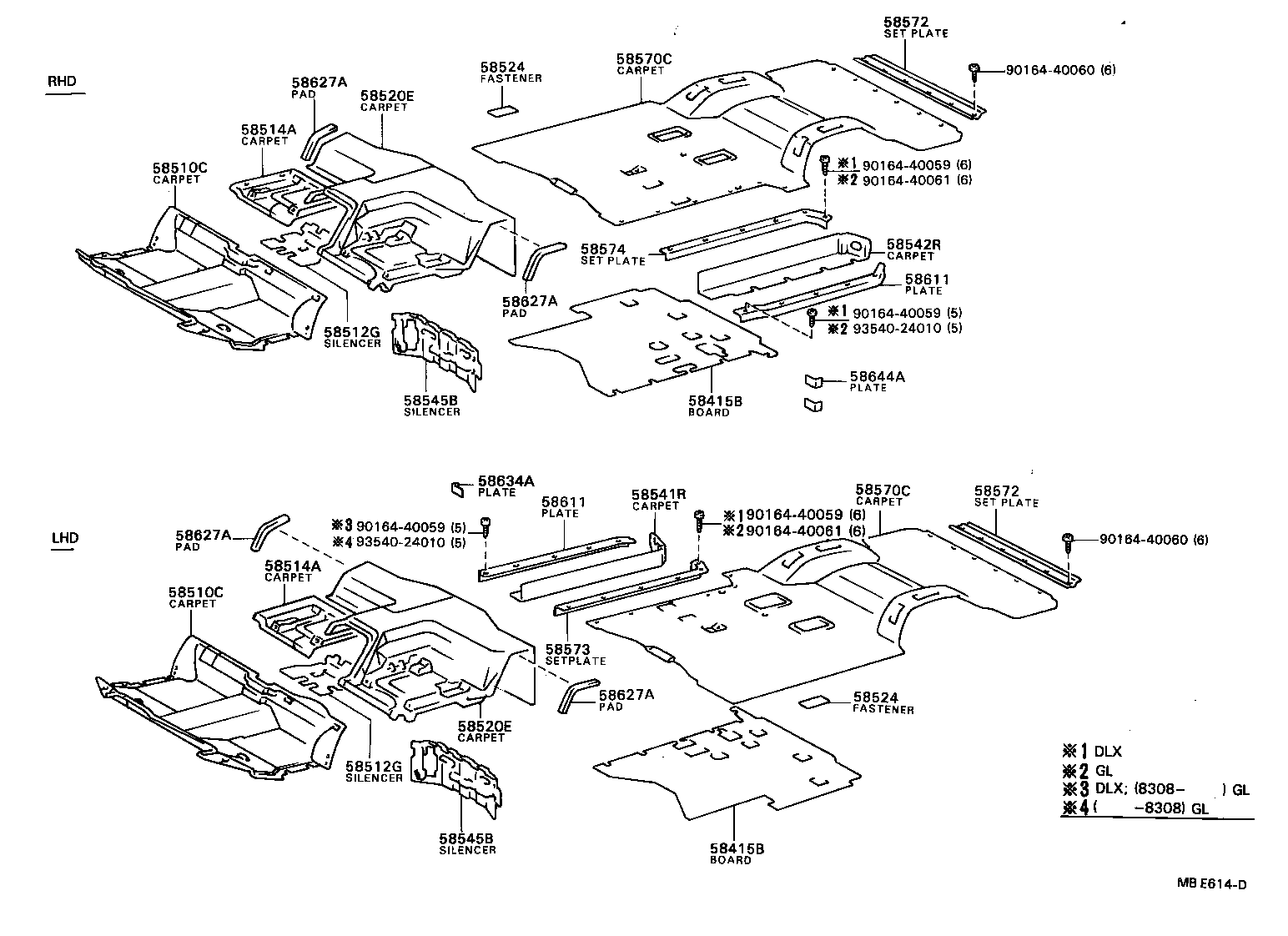

Click highlighted areas on diagram

diagram 58415B 58415B 58510C 58510C 58512G 58512G 58514A 58514A 58520E 58520E 58524 58524 58541R 58542R 58545B 58545B 58570C 58570C 58572 58572 58573 58574 58611 58611 58627A 58627A 58627A 58627A 58634A 58644A 9016440059 9016440059 9016440059 9016440059 9016440060 9016440060 9016440061 9016440061 9354024010 9354024010
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-87040

CR21,YR2#..RHD..DLX

 1
58510-87042

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX

 1
58510-87043

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX,*WS

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-87040

CR21,YR2#..RHD..DLX

 1
58510-87042

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX

 1
58510-87043

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX,*WS

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87004

CR21,YR2#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87004

CR21,YR2#

 1
58514A - CARPET, FLOOR, CENTER
58530-87068

YR20..RHD..DLX

W/SEAT BELT

 1
58514A - CARPET, FLOOR, CENTER
58530-87068

YR20..RHD..DLX

W/SEAT BELT

 1
58520E - CARPET ASSY, FRONT FLOOR, FRONT NO.2
58520-87030

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,BEIGE

 1
58520-87027

CR21,YR20..RHD..DLX

W/*REH,SEAT BELT

 1
58520-87026

CR21,YR20..RHD..DLX

W/SEAT BELT

 1
58520E - CARPET ASSY, FRONT FLOOR, FRONT NO.2
58520-87030

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,BEIGE

 1
58520-87027

CR21,YR20..RHD..DLX

W/*REH,SEAT BELT

 1
58520-87026

CR21,YR20..RHD..DLX

W/SEAT BELT

 1
58524 - FASTENER, FLOOR MAT, MALE
90530-25004

CR21,YR2#,31

 2
58524 - FASTENER, FLOOR MAT, MALE
90530-25004

CR21,YR2#,31

 2
58542R - CARPET, STEP, LH
58509-87002

CR21,YR2#..RHD..DLX

 1
58545B - SILENCER, HEADER PANEL
58545-87001

CR21,YR2#,31

 1
58545B - SILENCER, HEADER PANEL
58545-87001

CR21,YR2#,31

 1
58570C - CARPET ASSY, REAR FLOOR
58540-87040

CR21,YR2#..DLX..ARL

 1
58570C - CARPET ASSY, REAR FLOOR
58540-87040

CR21,YR2#..DLX..ARL

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58574-87001

CR21,YR2#,31

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58574-87001

CR21,YR2#,31

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58578-87001

CR21,YR2#..RHD..DLX

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67918-87001

CR21,YR20..RHD..DLX

 1
67917-87001

CR21,YR2#..RHD..DLX

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67918-87001

CR21,YR20..RHD..DLX

 1
67917-87001

CR21,YR2#..RHD..DLX

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-87002

CR21,YR20

 2
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-87002

CR21,YR20

 2
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-87002

CR21,YR20

 2
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-87002

CR21,YR20

 2
58644A - PLATE, ENGINE SERVICE HOLE MAT, LH
58634-87001

CR21,YR2#,31..RHD

 2
Common parts
90164-40059
90164-40060
90164-40061
93540-24010
