YR20RG-MDQ (1982)
Toyota Model-F
Production
Nov 1982
-
Jan 1984
Engine
2YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

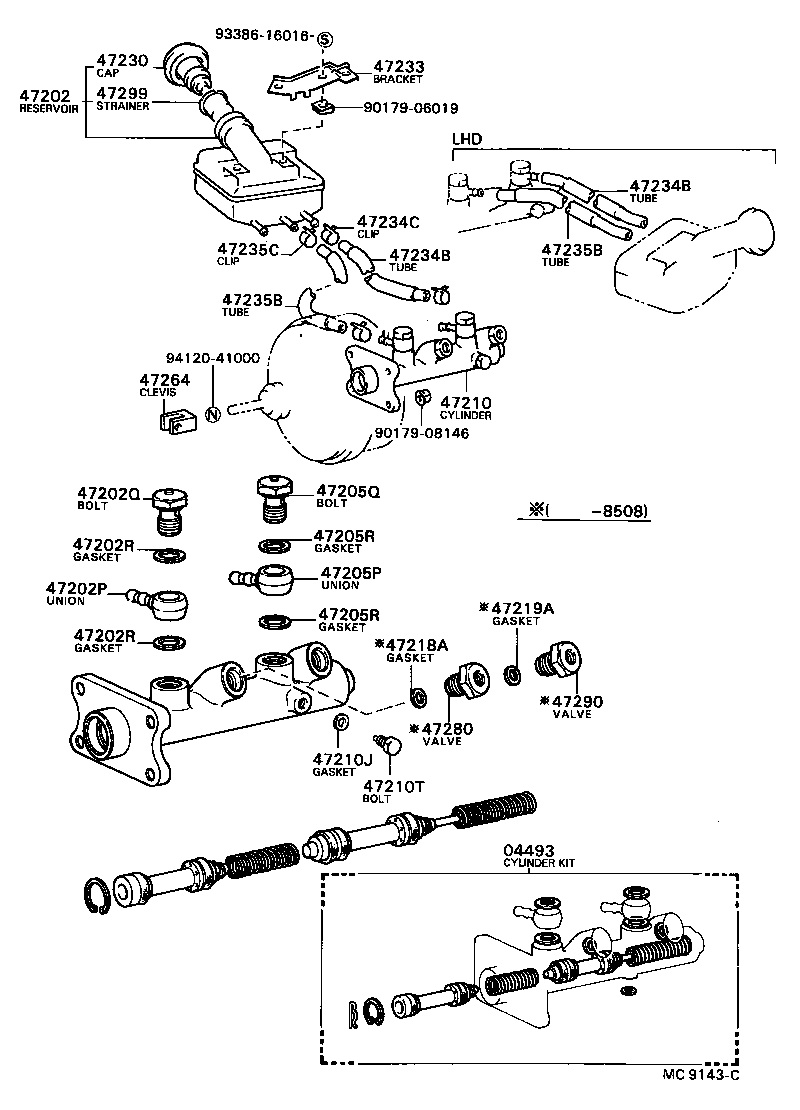

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-27070 |
CR21,YR2#..ARL,GEN |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-28040 |
YR20..RHD..5F |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10003 |
CR21,YR2#,31 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
CR21,YR2#,31 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
CR21,YR2#,31 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
CR21,YR2#,31 |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-10003 |
CR21,YR2#,31 |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
CR21,YR2#,31 |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CR21,YR2#,31 |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CR21,YR2#,31 |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-28040 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
CR21,YR2#,31 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
CR21,YR2# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
CR21,YR2# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
CR21,YR2#,31 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-28020 |
CR21,YR2#..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-28030 |
CR21,YR2#..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-28030 |
CR21,YR2#..RHD |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-28030 |
CR21,YR2#..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-28030 |
CR21,YR2#..RHD |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
CR21,YR2#,31 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26030 |
CR21,YR2# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-26030 |
CR21,YR2# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 93386-16016 | ||||
| 94120-41000 | ||||
