YR20RG-MD (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

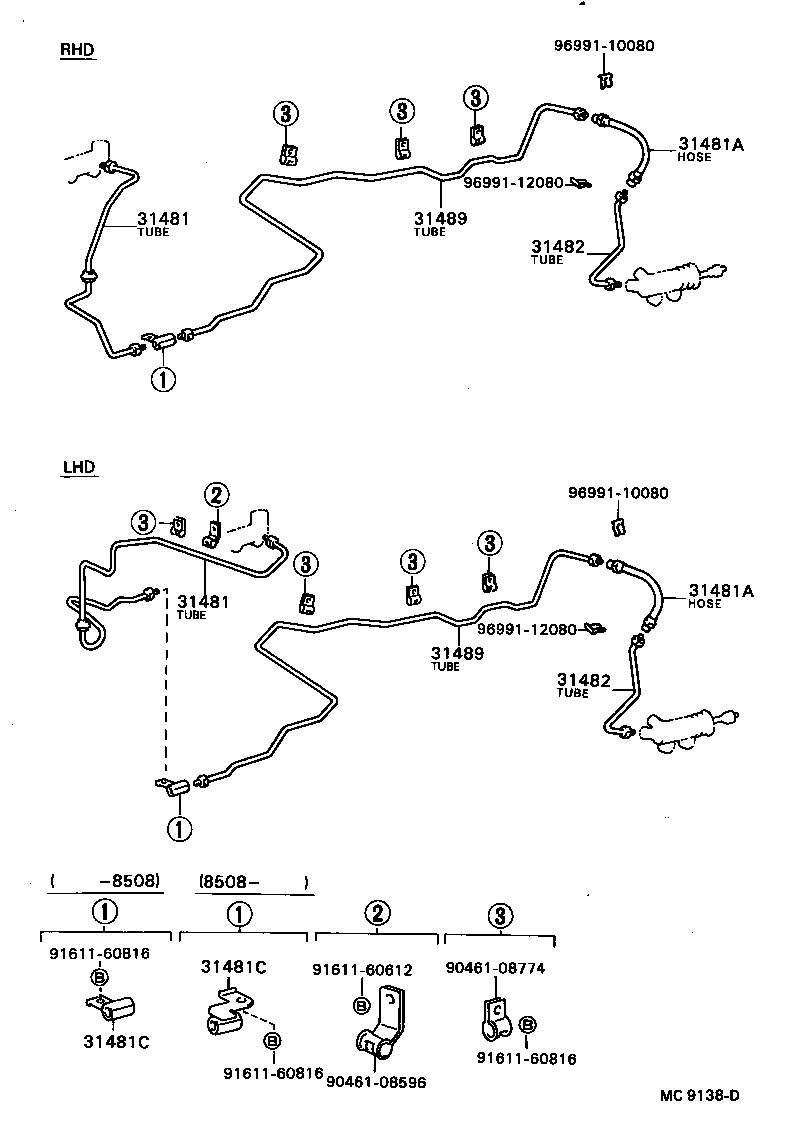

ILLUST NO. 2 OF 3(8211- )YR2#,31..5F

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31481C 31481C 31482 31482 31489 31489 9046108596 9046108774 9161160612 9161160816 9161160816 9161160816 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-28040

CR21,YR2#..RHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-28040

CR21,YR2#..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
31418-28020

YR2#,31..5F

 1
31481A - HOSE, CLUTCH, NO.1
31418-28020

YR2#,31..5F

 1
31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
90412-12008

CR21,YR2#..5F

 1
31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
90412-12008

CR21,YR2#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28030

YR2#,31..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28030

YR2#,31..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-28050

YR2#..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-28050

YR2#..5F

 1
Common parts
90461-08596
90461-08774
91611-60612
91611-60816
96991-10080
96991-12080

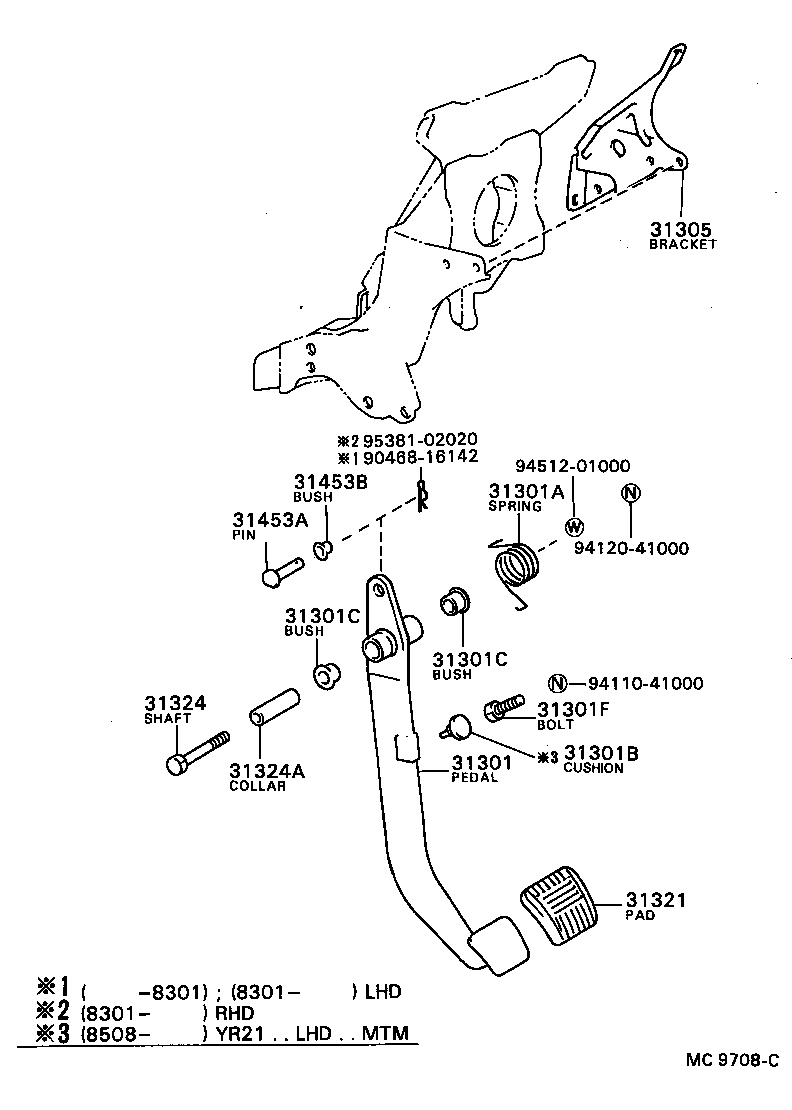

ILLUST NO. 1 OF 3(8211- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412041000 9451201000 9538102020
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-28060

CR21,YR2#,31..RHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32012

CR21,YR2#,31..RHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CR21,YR2#,31..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CR21,YR2#,31..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10085

CR21,YR2#,31..5F

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55156-87002

CR21,YR2#,31..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CR21,YR2#,31..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51060

CR21,YR2#,31..RHD..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CR21,YR2#,31..RHD..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

CR21,YR2#,31..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CR21,YR2#,31..5F

 1
Common parts
90468-16142
94110-41000
94120-41000
94512-01000
95381-02020
