YR20LG-PQW (1982)
Toyota Model-F
Production
Nov 1982
-
Aug 1984
Engine
2Y
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

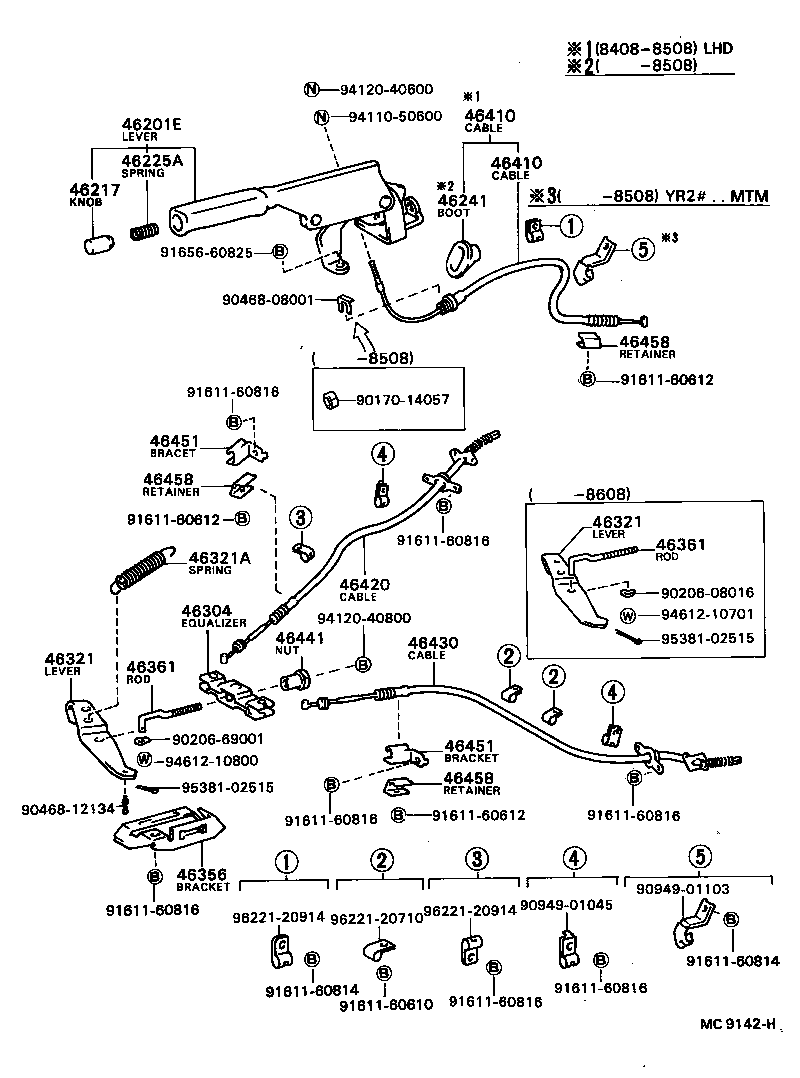

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2804003 |
CR21,YR2#..LHD..GL GRAY,GRAY,TRIM1# |
1 | ||
| 46201-2804005 |
CR21,YR2#..LHD..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002023 |
CR21,YR2#..GL GRAY,GRAY,TRIM1# |
1 | ||
| 46217-1002025 |
CR21,YR2#..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
CR21,YR2# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-28010 |
CR21,YR2# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-22020 |
CR21,YR2#,31 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-28020 |
CR21,YR20 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-28020 |
CR21,YR20 |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-10027 |
CR21,YR2#,31 |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28020 |
CR21,YR20 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-28020 |
CR21,YR2#,31 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-28020 |
CR21,YR2#,31 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28071 |
YR2#..LHD |
1 | ||
| 46410-28070 |
YR20..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28071 |
YR2#..LHD |
1 | ||
| 46410-28070 |
YR20..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28100 |
CR21,YR20..ARL,EUR |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28100 |
CR21,YR20..ARL,EUR |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-22010 |
CR21,YR2# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46453-28010 |
CR21,YR2#,31 LH |
1 | ||
| 46452-28060 |
CR21,YR2#,31 RH |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46453-28010 |
CR21,YR2#,31 LH |
1 | ||
| 46452-28060 |
CR21,YR2#,31 RH |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CR21,YR2#,31 |
3 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CR21,YR2#,31 |
3 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CR21,YR2#,31 |
3 | ||
| Common parts | ||||
| 90170-14057 | ||||
| 90206-08016 | ||||
| 90206-69001 | ||||
| 90468-08001 | ||||
| 90468-12134 | ||||
| 90949-01045 | ||||
| 90949-01103 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91656-60825 | ||||
| 94110-50600 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94612-10701 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| 96221-20710 | ||||
| 96221-20914 | ||||
