YR20LG-PQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )2Y#,3Y#,4YEC

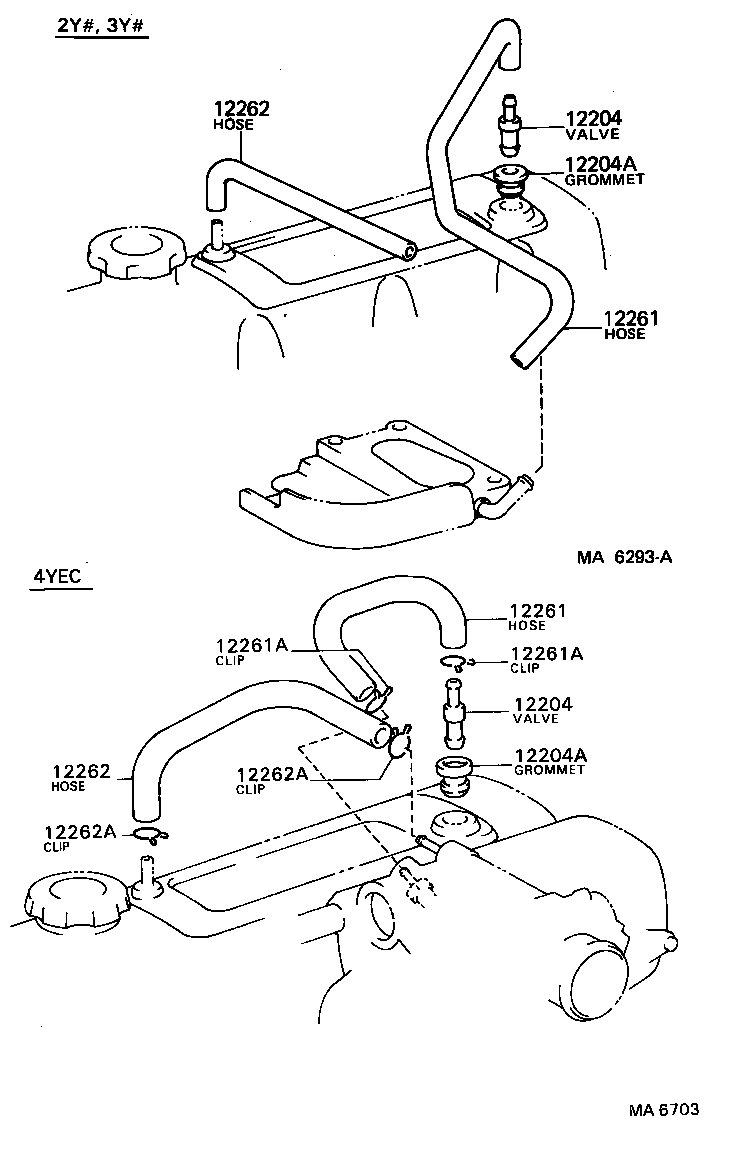

Click highlighted areas on diagram

MA6293A,MA6703

diagram 12204 12204 12204A 12204A 12261 12261 12261A 12261A 12262 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-71010

2Y#,3Y#,4YEC..YR2#,31

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-71010

2Y#,3Y#,4YEC..YR2#,31

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2Y#,3Y#,4YEC..YR2#,31

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2Y#,3Y#,4YEC..YR2#,31

 1
12261 - HOSE, VENTILATION
12261-71010

2Y#,3Y#..YR2#

 1
12261 - HOSE, VENTILATION
12261-71010

2Y#,3Y#..YR2#

 1
12262 - HOSE, VENTILATION, NO.2
12262-71010

2Y#,3Y#..YR20,21

 1
12262 - HOSE, VENTILATION, NO.2
12262-71010

2Y#,3Y#..YR20,21

 1
