YR20LG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

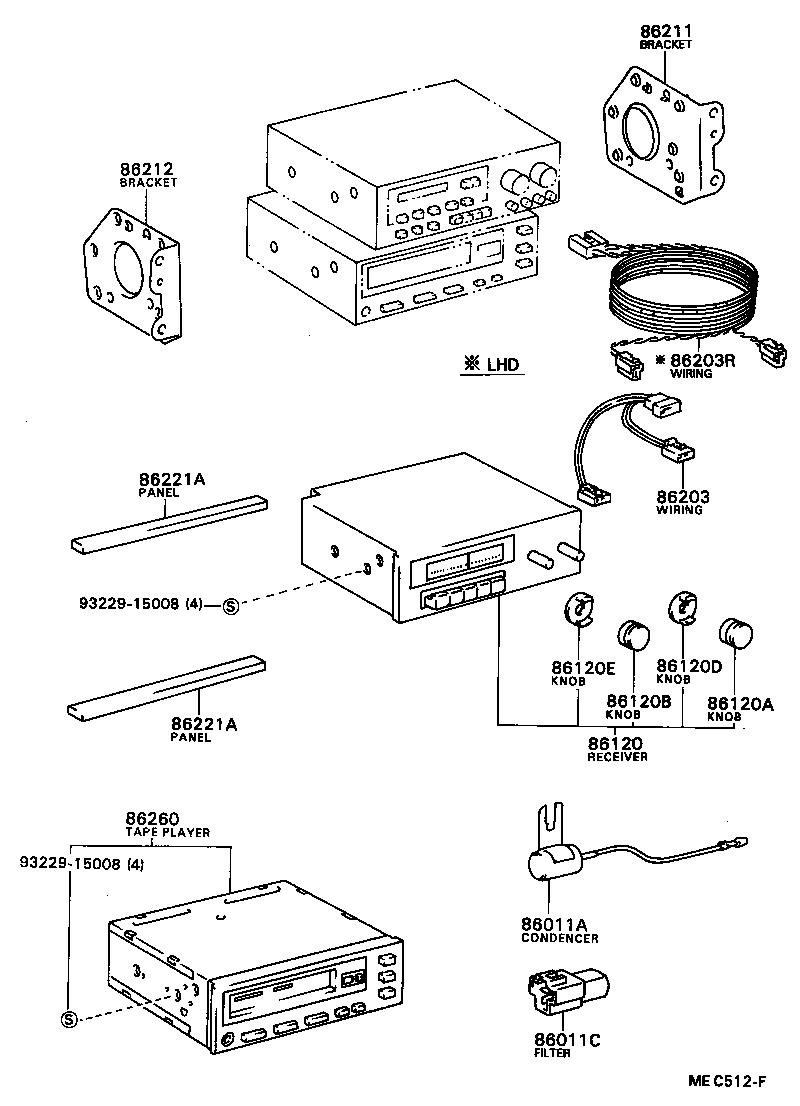

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86120A 86120B 86120D 86120E 86203 86203R 86211 86212 86221A 86221A 86260 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04010

CR21,YR20,21

REGULATOR

 1
86120 - RECEIVER ASSY, RADIO
86120-14420

CR21,YR2#..LHD

AM

 1
86120-22400

CR21,YR20..LHD..EUR

LW/MW/UKW,W/ARI

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14240

CR21,YR20..LHD..EUR

LW/MW/UKW,W/ARI

 1
86128-14500

CR21,YR2#..LHD

AM,AM/FM

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14500

CR21,YR2#..LHD

AM,AM/FM

 1
86128-14240

CR21,YR20..LHD..EUR

LW/MW/UKW,W/ARI

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14260

CR21,YR20..LHD..EUR

LW/MW/UKW,W/ARI

 1
86128-14200

CR21,YR2#..LHD

AM,AM/FM

 1
86211 - BRACKET, RADIO, NO.1
86211-87003

CR21,YR2#,31

 1
86212 - BRACKET, RADIO, NO.2
86212-87002

CR21,YR2#,31

 1
86221A - PANEL, RADIO RECEIVER
86221-12020

CR21,YR20..LHD

 1
86221A - PANEL, RADIO RECEIVER
86221-12020

CR21,YR20..LHD

 1
Common parts
93229-15008
