YR20LG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

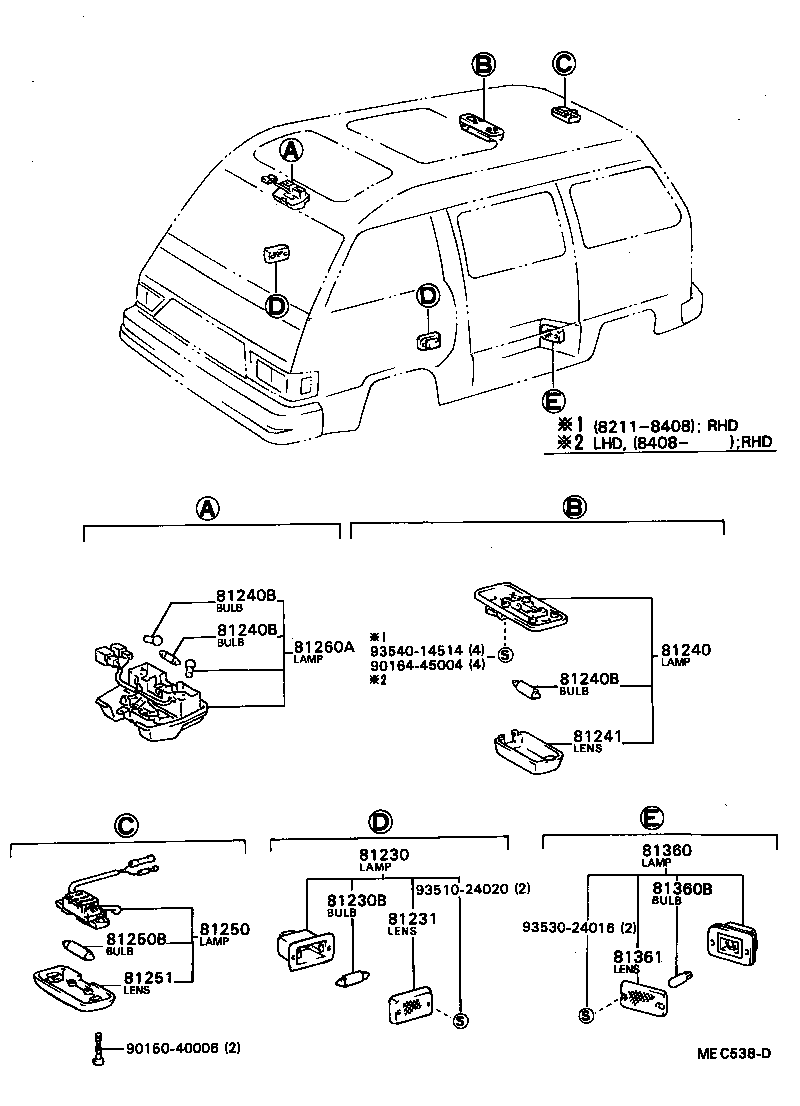

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81240B 81240B 81241 81250 81250B 81251 81260A 81360 81360B 81361 9015040006 9016445004 9351024020 9353024016 9354014514
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-28010

CR21,YR2#..GL

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

CR21,YR2#..GL

12V 5W,12V 5W

 2
81231 - LENS, COURTESY LAMP
81231-30100

CR21,YR2#..GL

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-1601023

YR2#..GL

W/*PSR,GRAY,GRAY,TRIM1#

 1
81240-1601025

YR2#..GL

W/*PSR,BEIGE,BEIGE,TRIM4#

 1
81240-2006023

CR21,YR2#..GL

GRAY,GRAY,TRIM1#

 1
81240-2006025

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-12005

YR2#,31..GL

12V 8W,12V 8W

 2
99132-12100

CR21,YR2#,31

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-12005

YR2#,31..GL

12V 8W,12V 8W

 2
99132-12100

CR21,YR2#,31

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-12005

YR2#,31..GL

12V 8W,12V 8W

 2
99132-12100

CR21,YR2#,31

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

YR2#..GL

W/*PSR

 1
81241-20060

CR21,YR2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-87004

CR21,YR2#..GL

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11004

CR21,YR2#,31..GL

12V 10W,12V 10W

 1
81251 - LENS, ROOM LAMP, NO.2
81241-87004

CR21,YR2#,31..GL

 1
81260A - LAMP ASSY, MAP
81240-8700503

YR20..GL

GRAY,GRAY,TRIM1#

 1
81240-8700803

YR2#..GL

GRAY,GRAY,TRIM1#

 1
81240-8700805

YR2#..GL

BEIGE,BEIGE,TRIM4#

 1
81240-8700505

YR20..GL

BEIGE,BEIGE,TRIM4#

 1
81360 - LAMP ASSY, STEP OR SPOT
81230-87003

CR21,YR2#..GL

 1
81360B - BULB, STEP OR SPOT LAMP
90981-11013

CR21,YR2#..GL

12V 5W T10

 1
Common parts
90150-40006
90164-45004
93510-24020
93530-24016
93540-14514
