YR20LG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

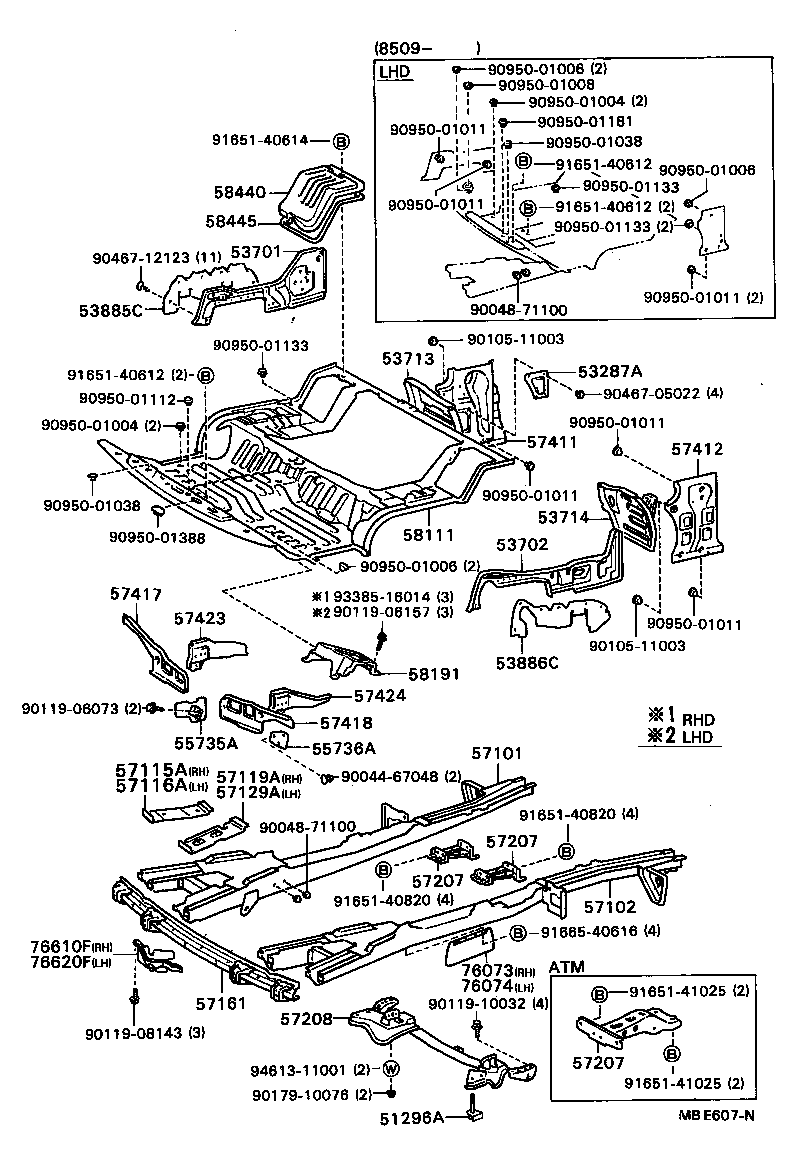

ILLUST NO. 1 OF 3(8211- )

Click highlighted areas on diagram

diagram 51296A 53287A 53701 53702 53713 53714 53885C 53886C 55735A 55736A 57101 57102 57115A 57116A 57119A 57129A 57161 57207 57207 57207 57208 57411 57412 57417 57418 57423 57424 58111 58191 58440 58445 76073 76074 76610F 76620F 9004467048 9004871100 9004871100 9010511003 9010511003 9011906073 9011906157 9011908143 9011910032 9017910076 9046705022 9046712123 9095001004 9095001004 9095001006 9095001006 9095001006 9095001008 9095001011 9095001011 9095001011 9095001011 9095001011 9095001011 9095001038 9095001038 9095001112 9095001133 9095001133 9095001133 9095001181 9095001388 9165140612 9165140612 9165140612 9165140614 9165140820 9165140820 9165141025 9165141025 9166540616 9338516014 9461311001
Part # Description Qty Price
51296A - BOLT, ENGINE FRONT SUPPORT MEMBER
51296-87002

CR21,YR2#,31

LH

 2
51296-87001

CR21,YR2#,31

RH

 2
53287A - COVER, COOLER PIPE HOLE
53287-87001

CR21,YR20,21,31

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-87009

CR21,YR2#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-87010

CR21,YR2#

 1
53713 - APRON, FENDER SIDE, RH
53707-87004

CR21,YR2#,31

 1
53714 - APRON, FENDER SIDE, LH
53708-87001

YR20,21

 1
53885C - SEAL, FENDER APRON MUDGUARD, RH
53885-87003

CR21,YR2#

 1
53886C - SEAL, FENDER APRON MUDGUARD, LH
53886-87001

CR21,YR2#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-28020

CR21,YR20..LHD..EUR

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-28020

CR21,YR20..LHD..EUR

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-87003

CR21,YR2#..EUR

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-87003

CR21,YR2#..EUR

 1
57119A - PLATE, FRONT SIDE MEMBER, FRONT RH
57119-87003

CR21,YR2#..EUR

 1
57129A - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-87003

CR21,YR2#,31..EUR

 1
57161 - CROSSMEMBER, FRONT
57104-28010

YR2#..GL;CR21..LHD;YR20..LHD..DLX

 1
57104-28010

CR21,YR20

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
51431-87001

CR21,YR20..5F

RH

 1
51432-87001

CR21,YR20..5F

LH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
51431-87001

CR21,YR20..5F

RH

 1
51432-87001

CR21,YR20..5F

LH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
51431-87001

CR21,YR20..5F

RH

 1
51432-87001

CR21,YR20..5F

LH

 1
57208 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-87001

YR20

 1
57411 - PLATE, FLOOR SIDE RAIL, RH
57045-28010

CR21,YR2#..LHD

 1
57412 - PLATE, FLOOR SIDE RAIL, LH
57046-28010

CR21,YR20,21..LHD

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-87001

CR21,YR2#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-87001

CR21,YR2#

 1
57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH
57423-87001

CR21,YR2#

 1
57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH
57424-87001

CR21,YR2#

 1
58111 - PAN, FRONT FLOOR
58111-28020

CR21,YR2#..LHD

 1
58111-28070

CR21,YR20..LHD..GL..EUR

W/FOOT REST

 1
58111-87024

YR20..EUR

 1
58191 - FOOTREST, FRONT FLOOR
58190-28010

CR21,YR20..LHD..GL..EUR

 1
58440 - COVER ASSY, BATTERY SERVICE HOLE
58207-87002

CR21,YR2#,31

 1
58445 - PACKING, BATTERY SERVICE HOLE COVER
58459-87001

CR21,YR2#,31

 1
Common parts
90044-67048
90048-71100
90105-11003
90119-06073
90119-06157
90119-08143
90119-10032
90179-10076
90467-05022
90467-12123
90950-01004
90950-01006
90950-01008
90950-01011
90950-01038
90950-01112
90950-01133
90950-01181
90950-01388
91651-40612
91651-40614
91651-40820
91651-41025
91665-40616
93385-16014
94613-11001

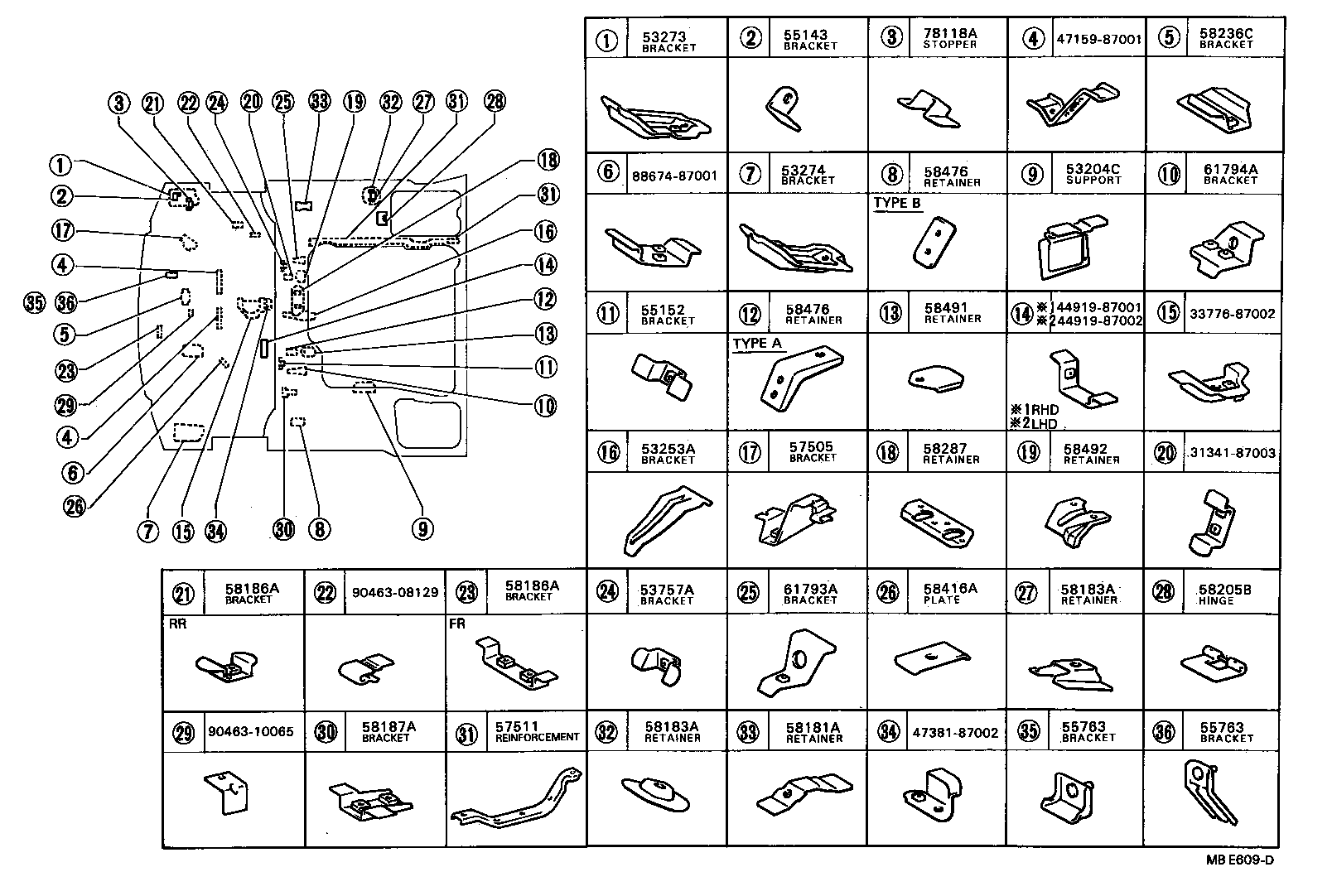

ILLUST NO. 3 OF 3(8211- )

Click highlighted areas on diagram

diagram 3134187003 3377687002 4491987001 4491987002 4715987001 4738187002 53204C 53253A 53273 53274 53757A 55143 55152 55763 55763 57505 57511 58181A 58183A 58183A 58186A 58186A 58187A 58205B 58236C 58287 58416A 58476 58476 58491 58492 61793A 61794A 78118A 8867487001 9046308129 9046310065
Part # Description Qty Price
53204C - SUPPORT SUB-ASSY, RADIATOR RESERVER TANK
53204-87001

CR21,YR20

 1
53253A - BRACKET, RADIATOR MOUNTING, UPPER
53253-87002

CR21,YR2#,31

 1
53757A - BRACKET, HEATER HOSE MOUNTING
53757-87003

CR21,YR2#,31

 1
55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1
55143-87001

CR21,YR2#

 1
55152 - BRACKET, 3 WAY ATTACHING
55152-87001

CR21,YR2#

 1
55763 - BRACKET, COOLER MOUNTING
55763-28010

CR21,YR2#,31..LHD

 1
55763 - BRACKET, COOLER MOUNTING
55763-28010

CR21,YR2#,31..LHD

 1
57511 - REINFORCEMENT, FRONT FLOOR, CENTER
57511-28020

CR21,YR2#,31..LHD

 1
58181A - RETAINER, SEAT RAIL, FRONT
58181-87005

CR21,YR2#

 1
58183A - RETAINER, SEAT RAIL, REAR RH
58183-28010

CR21,YR2#..LHD

 1
58183A - RETAINER, SEAT RAIL, REAR RH
58183-28010

CR21,YR2#..LHD

 1
58186A - BRACKET, BRAKE TUBE SET
58186-28010

CR21,YR2#,31..LHD

FR

 1
58186A - BRACKET, BRAKE TUBE SET
58186-28010

CR21,YR2#,31..LHD

FR

 1
58205B - HINGE SUB-ASSY, BATTERY SERVICE COVER MALE
58205-87001

CR21,YR2#,31

 1
58236C - BRACKET, CLUTCH TUBE
58236-87004

CR21,YR2#,31

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-87002

YR2#..5F

 1
58476 - RETAINER, ENGINE SERVICE HOLE COVER CATCH
58476-28030

CR21,YR2#,31

TYPE B

 1
58476-87006

CR21,YR2#,31

TYPE A

 1
58476 - RETAINER, ENGINE SERVICE HOLE COVER CATCH
58476-28030

CR21,YR2#,31

TYPE B

 1
58476-87006

CR21,YR2#,31

TYPE A

 1
58491 - RETAINER, ENGINE COVER, NO.1
58491-87003

CR21,YR2#,31

 1
58492 - RETAINER, ENGINE COVER, NO.2
58492-87002

CR21,YR2#,31

 1
61793A - BRACKET, COOLER CONDENSER, NO.1
61793-87001

CR21,YR20

 1
61794A - BRACKET, COOLER CONDENSER, NO.2
61794-87002

CR21,YR20

 1
Common parts
31341-87003
33776-87002
44919-87001
44919-87002
47159-87001
47381-87002
88674-87001
90463-08129
90463-10065

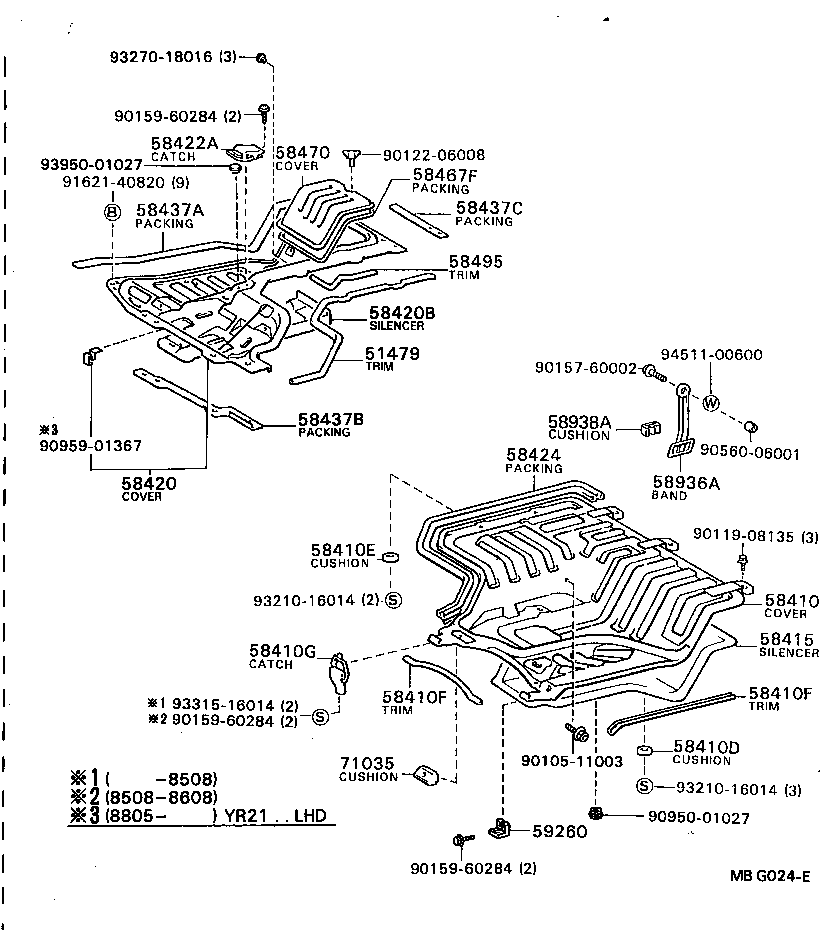

ILLUST NO. 2 OF 3(8211- )

Click highlighted areas on diagram

diagram 51479 58410 58410D 58410E 58410F 58410F 58410G 58415 58420 58420B 58422A 58424 58437A 58437B 58437C 58467F 58470 58495 58936A 58938A 59260 71035 9010511003 9011908135 9012206008 9015760002 9015960284 9015960284 9015960284 9056006001 9095001027 9095901367 9162140820 9321016014 9321016014 9327018016 9331516014 9395001027 9451100600
Part # Description Qty Price
51479 - TRIM, ENGINE COVER, NO.2
51479-87001

CR21,YR2#,31

 1
58410 - COVER, ENGINE SERVICE HOLE
58401-28010

CR21,YR2#..LHD

 1
58410D - CUSHION, NO.1
90540-06011

CR21,YR2#,31

 3
58410E - CUSHION, NO.3
90540-06014

CR21,YR2#,31

 2
58410F - TRIM, ENGINE SERVICE HOLE COVER
51469-87001

CR21,YR2#

 2
58410F - TRIM, ENGINE SERVICE HOLE COVER
51469-87001

CR21,YR2#

 2
58410G - CATCH, ENGINE SERVICE HOLE COVER
58780-28030

CR21,YR2#

 2
58415 - SILENCER, ENGINE COVER, FRONT NO.1
58471-87001

CR21,YR2#

 1
58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2
58407-28010

YR2#..LHD..5F

 1
58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2
58472-87001

CR21,YR2#,31

 1
58422A - CATCH SUB-ASSY, ENGINE UPPER COVER
58780-28010

CR21,YR2#

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58435-87005

CR21,YR2#..EUR

 1
58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
58436-87001

CR21,YR2#,31

 1
58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2
58478-87001

CR21,YR2#,31

 1
58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3
58479-87001

CR21,YR2#,31

 1
58467F - PACKING, INSPECTION HOLE
58475-87001

CR21,YR2#,31

 1
58470 - COVER ASSY, INSPECTION HOLE
58408-87001

CR21,YR2#,31

 1
58495 - TRIM, INSPECTION HOLE COVER
58495-87001

CR21,YR2#,31

 1
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58936-2801003

CR21,YR2#..GL

GRAY,GRAY,TRIM1#

 1
58936-2801005

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 1
71035 - CUSHION SUB-ASSY, SEAT STOPPER
71035-87001

CR21,YR2#,31

 1
Common parts
90105-11003
90119-08135
90122-06008
90157-60002
90159-60284
90560-06001
90950-01027
90959-01367
91621-40820
93210-16014
93270-18016
93315-16014
93950-01027
94511-00600
