YR20LG-MQW (1982)
Toyota Model-F
(8211- )CR21,YR20,21

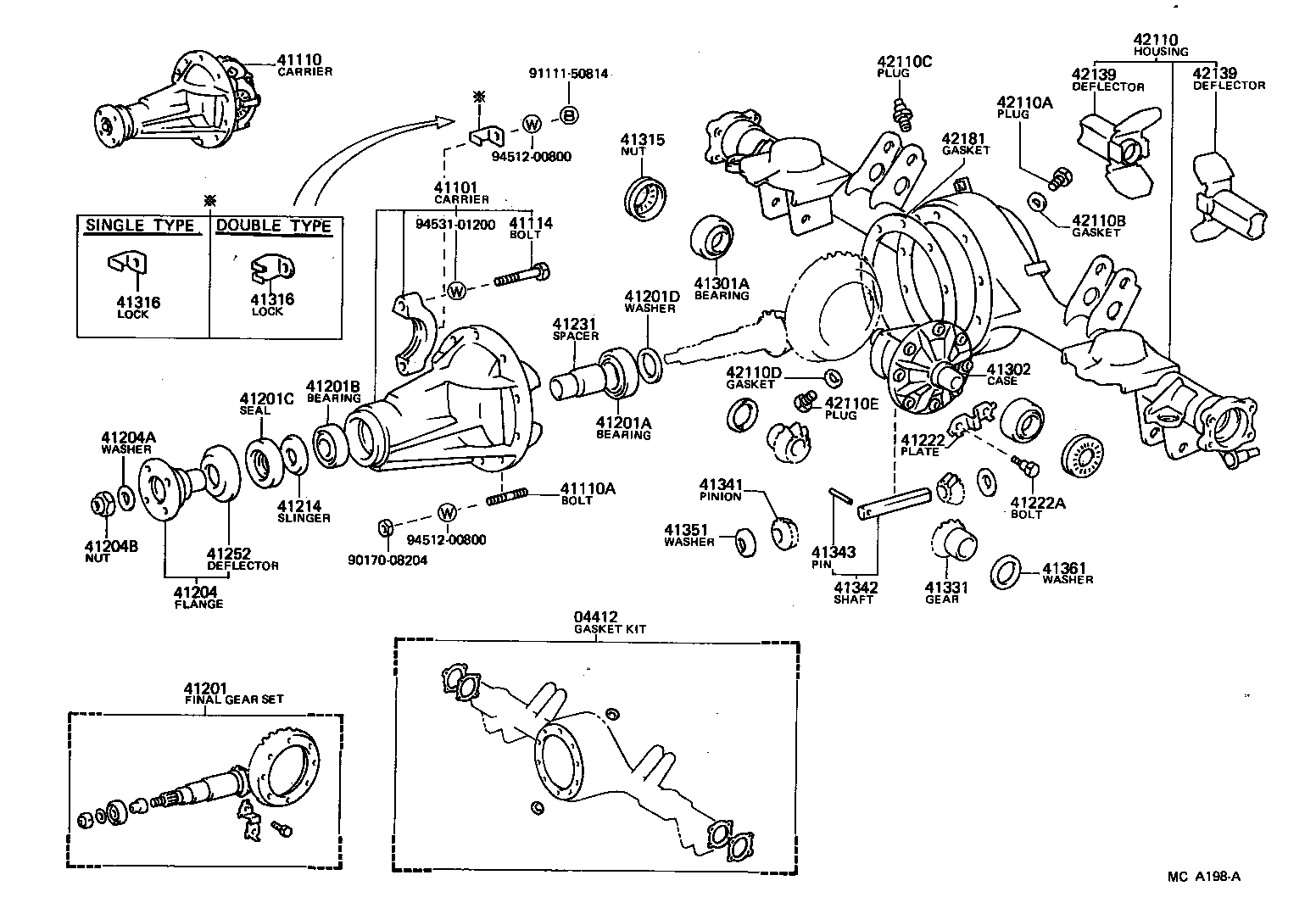

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-28010 |
CR21,YR20,21..ARL,EUR |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
CR21,YR20,21 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20241 |
YR20..5F *FGR=41:10=4.100,R=41:10,*AXC=E292 |
1 | ||
| 41110-20241 |
YR20..5F..(EUR,GEN) *FGR=41:10=4.100,R=41:10,*AXC=E292 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
CR21,YR2#,31 S=12 & 15,L=34 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CR21,YR2#,31 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39555 |
YR20..5F *FGR=41:10=4.100,R=41:10,*AXC=E292 |
1 | ||
| 41201-39555 |
YR20..5F..(EUR,GEN) *FGR=41:10=4.100,R=41:10,*AXC=E292 |
1 | ||
| 41201-39218 |
YR20..5F *FGR=41:10=4.100,R=41:10,*AXC=E292 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32307 |
CR21,YR20,21 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30008 |
CR21,YR20,21 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CR21,YR2#,31 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
CR21,YR2#,31 T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35400 |
CR21,YR2#,31 T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35397 |
CR21,YR2#,31 T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35398 |
CR21,YR2#,31 T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35437 |
CR21,YR2#,31 T=2.33,MARK 04,T=2.33 |
1 | ||
| 90201-35404 |
CR21,YR2#,31 T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35403 |
CR21,YR2#,31 T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35401 |
CR21,YR2#,31 T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35438 |
CR21,YR2#,31 T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35440 |
CR21,YR2#,31 T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35402 |
CR21,YR2#,31 T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35436 |
CR21,YR2#,31 T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35399 |
CR21,YR2#,31 T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35439 |
CR21,YR2#,31 T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-35441 |
CR21,YR2#,31 T=2.72,MARK 17,T=2.72 |
1 | ||
| 90201-35435 |
CR21,YR2#,31 T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-35434 |
CR21,YR2#,31 T=2.24,MARK 01,T=2.24 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CR21,YR20,21 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CR21,YR2#,31 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CR21,YR2#,31 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CR21,YR2#,31 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
CR21,YR20,21 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
CR21,YR2# |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CR21,YR20,21 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CR21,YR2#,31 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CR21,YR2# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30022 |
CR21,YR20,21 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CR21,YR20,21 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CR21,YR2#,31 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CR21,YR2#,31 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CR21,YR2#,31 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CR21,YR2#,31 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30021 |
CR21,YR20,21 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CR21,YR20,21 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CR21,YR20,21 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CR21,YR2#,31 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CR21,YR20,21 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
CR21,YR20,21 T=1.20,MARK 04,T=1.2 |
2 | ||
| 41361-22030 |
CR21,YR20,21 T=1.10,MARK 03,T=1.1 |
2 | ||
| 41361-22020 |
CR21,YR20,21 T=1.00,MARK 02,T=1.0 |
2 | ||
| 41361-22160 |
CR21,YR20,21 T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22140 |
CR21,YR20,21 T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22150 |
CR21,YR20,21 T=1.05,MARK 15,T=1.05 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-28090 |
CR21,YR20,21 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
CR21,YR2#,31 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
CR21,YR2#,31 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
CR21,YR2#,31 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
CR21,YR2#,31 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
CR21,YR2#,31 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-22010 |
CR21,YR20,21 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-22010 |
CR21,YR20,21 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30010 |
CR21,YR20,21 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
