YR20LG-MQ (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

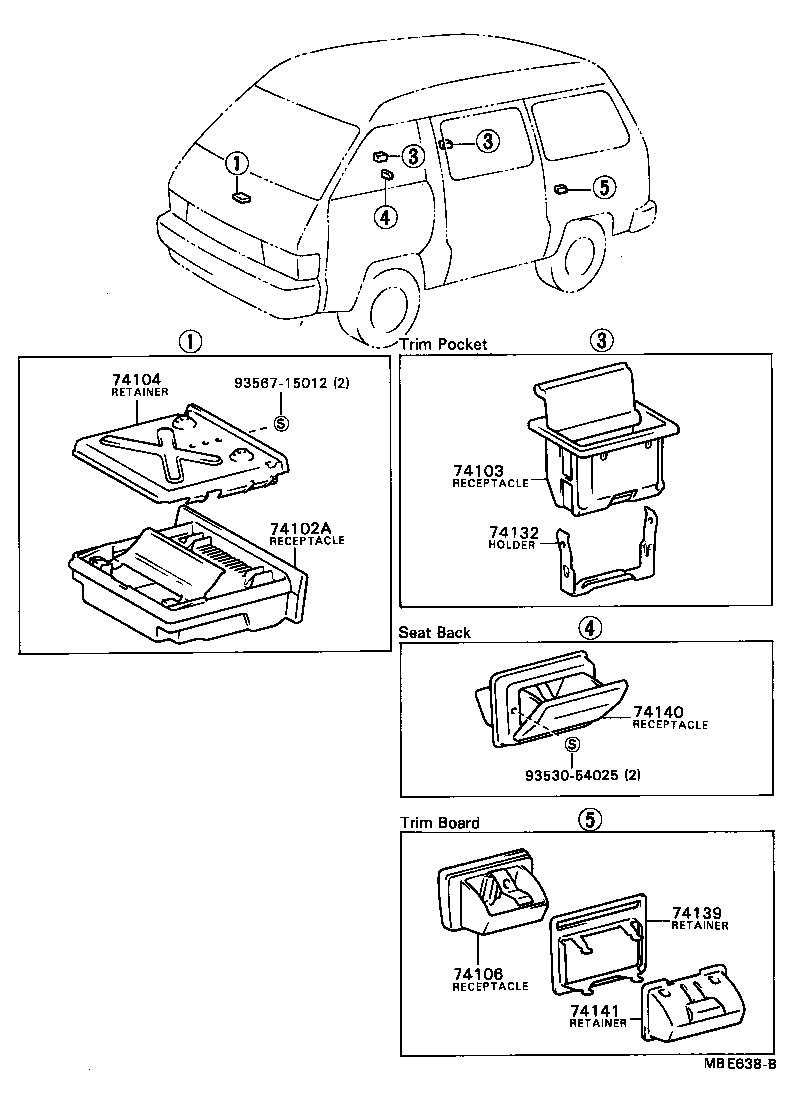

Click highlighted areas on diagram

diagram 74102A 74103 74104 74106 74132 74139 74140 74141 9353054025 9356715012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-8700104

CR21,YR2#..GL

BLUE,BLUE,TRIM1#

 1
74102-8700102

CR21,YR2#..GL

WINE,RED/MAROON,TRIM4#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-2204002

CR21,YR20

WINE,RED/MAROON,TRIM4#

 2
74130-2204004

CR21,YR20..GL

BLUE,BLUE,TRIM1#

 2
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-28010

CR21,YR2#..LHD..GL

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74105-1001002

CR21,YR2#

WINE,RED/MAROON,TRIM4#

 1
74105-1001024

CR21,YR2#..GL

BLUE,BLUE,TRIM1#

 1
74132 - HOLDER, REAR ASH RECEPTACLE
74239-22020

CR21,YR2#,31

 2
74139 - RETAINER, REAR ASH RECEPTACLE, OUTER
74135-10030

CR21,YR2#,31

 1
74140 - RECEPTACLE ASSY, ASH(FOR SEAT)
74130-1402034

CR21,YR2#..GL

BLUE,BLUE,TRIM1#

 1
74130-1402002

CR21,YR2#

WINE,DARK WINE,TRIM4#

 1
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74137-10030

CR21,YR2#,31

 1
Common parts
93530-54025
93567-15012
