YR20LG-MQ (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )5F

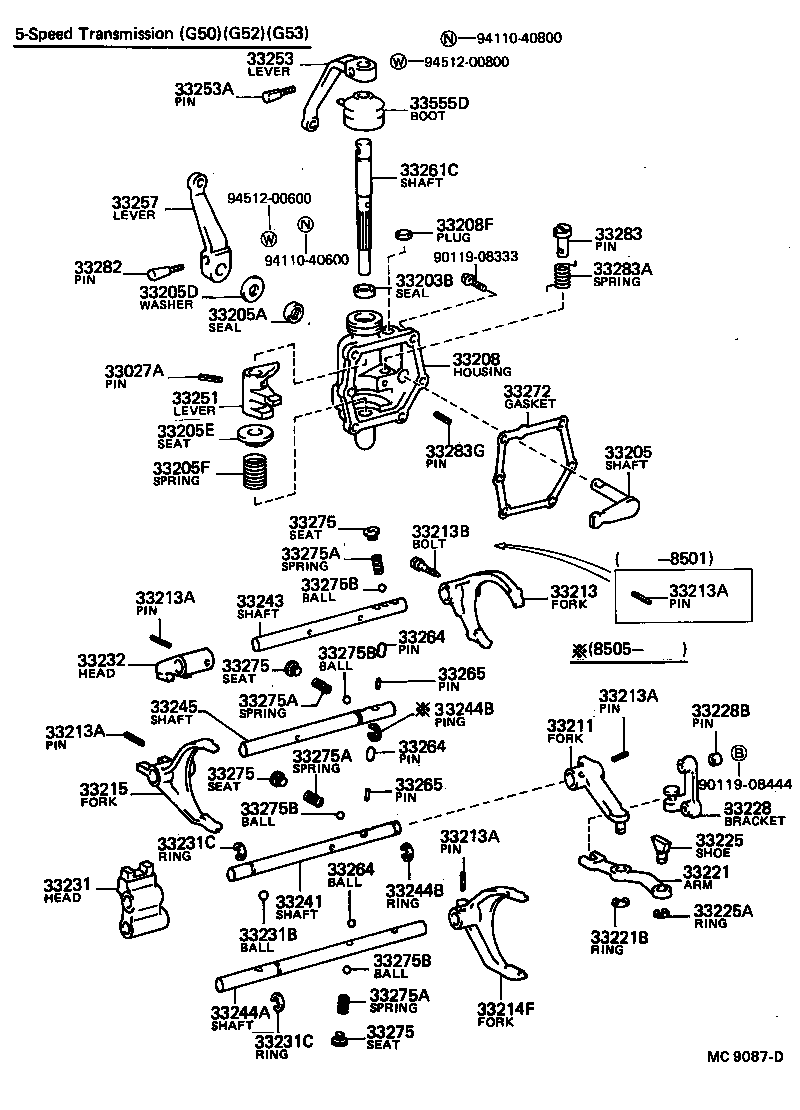

Click highlighted areas on diagram

diagram 33027A 33203B 33205 33205A 33205D 33205E 33205F 33208 33208F 33211 33213 33213A 33213A 33213A 33213A 33213A 33213B 33214F 33215 33221 33221B 33225 33225A 33228 33228B 33231 33231B 33231C 33231C 33232 33241 33243 33244A 33244B 33244B 33245 33251 33253 33253A 33257 33261C 33264 33264 33264 33265 33265 33272 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33282 33283 33283A 33283G 33555D 9011908333 9011908444 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
90254-05001

CR21,YR2#,31..5F

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-18002

CR21,YR2#,31..5F

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33262-28020

CR21,YR2#,31..5F

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

CR21,YR2#,31..5F

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
94612-11300

CR21,YR2#,31..5F

 1
33205E - SEAT(FOR SELECT RETURN SPRING)
33276-28010

CR21,YR20..5F

 1
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90501-18044

CR21,YR2#,31..5F

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33271-28010

CR21,YR2#,31..5F

 1
33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
90331-12002

CR21,YR2#,31..5F

 1
33211 - FORK, REVERSE SHIFT
33211-28010

CR21,YR2#,31..5F

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-28021

CR21,YR2#..5F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

CR21,YR2#..5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

CR21,YR2#..5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

CR21,YR2#..5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

CR21,YR2#..5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

CR21,YR2#..5F

 5
33214F - FORK, 5TH SHIFT
33214-28010

CR21,YR2#,31..5F

 1
33215 - FORK, 3RD & 4TH SHIFT
33213-28011

CR21,YR2#,31..5F

 1
33221 - ARM, REVERSE SHIFT
33221-28010

CR21,YR2#,31..5F

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

CR21,YR2#,31..5F

 1
33225 - SHOE, SHIFT ARM
33225-35020

CR21,YR2#..5F

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
96160-00800

CR21,YR2#,31..5F

 1
33228 - BRACKET, REVERSE SHIFT ARM
33228-28010

CR21,YR2#,31..5F

 1
33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET)
90253-11001

CR21,YR2#,31..5F

 2
33231 - HEAD, REVERSE SHIFT
33231-28010

CR21,YR2#,31..5F

 1
33231B - BALL, REVERSE SHIFT RESTRICT
90360-10003

CR21,YR2#,31..5F

 1
33231C - RING(FOR REVERSE SHIFT HEAD)
90523-12001

CR21,YR2#,31..5F

 2
33231C - RING(FOR REVERSE SHIFT HEAD)
90523-12001

CR21,YR2#,31..5F

 2
33232 - HEAD, 1ST & 2ND SHIFT
33232-28010

CR21,YR2#,31..5F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-28010

CR21,YR2#,31..5F

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-28010

CR21,YR2#..5F

 1
33244A - SHAFT, 5TH SHIFT FORK
33245-28010

CR21,YR2#,31..5F

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

CR21,YR2#..5F

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

CR21,YR2#..5F

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-28020

CR21,YR2#..5F

 1
33251 - LEVER, SHIFT & SELECT
33251-28011

CR21,YR2#,31..5F

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-28041

YR2#..5F

 1
33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33281-16020

CR21,YR2#,31..5F

 1
33257 - LEVER, SELECT OUTER
33257-28031

YR2#..5F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-28011

CR21,YR2#,31..5F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90360-10003

CR21,YR2#,31..5F

OD=9.52,STEEL,BALL

 1
90361-10003

CR21,YR2#,31..5F

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

CR21,YR2#,31..5F

L=21.6,PIN,PIN,L=21.6

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90360-10003

CR21,YR2#,31..5F

OD=9.52,STEEL,BALL

 1
90361-10003

CR21,YR2#,31..5F

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

CR21,YR2#,31..5F

L=21.6,PIN,PIN,L=21.6

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90360-10003

CR21,YR2#,31..5F

OD=9.52,STEEL,BALL

 1
90361-10003

CR21,YR2#,31..5F

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

CR21,YR2#,31..5F

L=21.6,PIN,PIN,L=21.6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

CR21,YR2#,31..5F

L=11.1,OD=4.8

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

CR21,YR2#,31..5F

L=11.1,OD=4.8

 2
33272 - GASKET, SHIFT LEVER SHAFT HOUSING
33272-28010

CR21,YR2#,31..5F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

CR21,YR2#..5F

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

CR21,YR2#..5F

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

CR21,YR2#..5F

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

CR21,YR2#..5F

OD=18

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14062

CR21,YR2#,31..5F

L=30.6,L=30.6

 3
90501-14061

CR21,YR2#..5F

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14062

CR21,YR2#,31..5F

L=30.6,L=30.6

 3
90501-14061

CR21,YR2#..5F

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14062

CR21,YR2#,31..5F

L=30.6,L=30.6

 3
90501-14061

CR21,YR2#..5F

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14062

CR21,YR2#,31..5F

L=30.6,L=30.6

 3
90501-14061

CR21,YR2#..5F

L=18.3,L=18.3

 1
33275B - BALL, SHAFT DETENT
90360-10003

CR21,YR2#,31..5F

 4
33275B - BALL, SHAFT DETENT
90360-10003

CR21,YR2#,31..5F

 4
33275B - BALL, SHAFT DETENT
90360-10003

CR21,YR2#,31..5F

 4
33275B - BALL, SHAFT DETENT
90360-10003

CR21,YR2#,31..5F

 4
33282 - PIN, LEVER LOCK, NO.2
33282-35010

CR21,YR2#,31..5F

 1
33283 - PIN, REVERSE RESTRICT, NO.1
33283-28010

CR21,YR2#..5F

 1
33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
90504-10007

CR21,YR2#..5F

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-04015

CR21,YR2#,31..5F

 1
33555D - BOOT, SHIFT LEVER
33555-28010

CR21,YR2#,31..5F

 1
Common parts
90119-08333
90119-08444
94110-40600
94110-40800
94512-00600
94512-00800
