YR20LG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

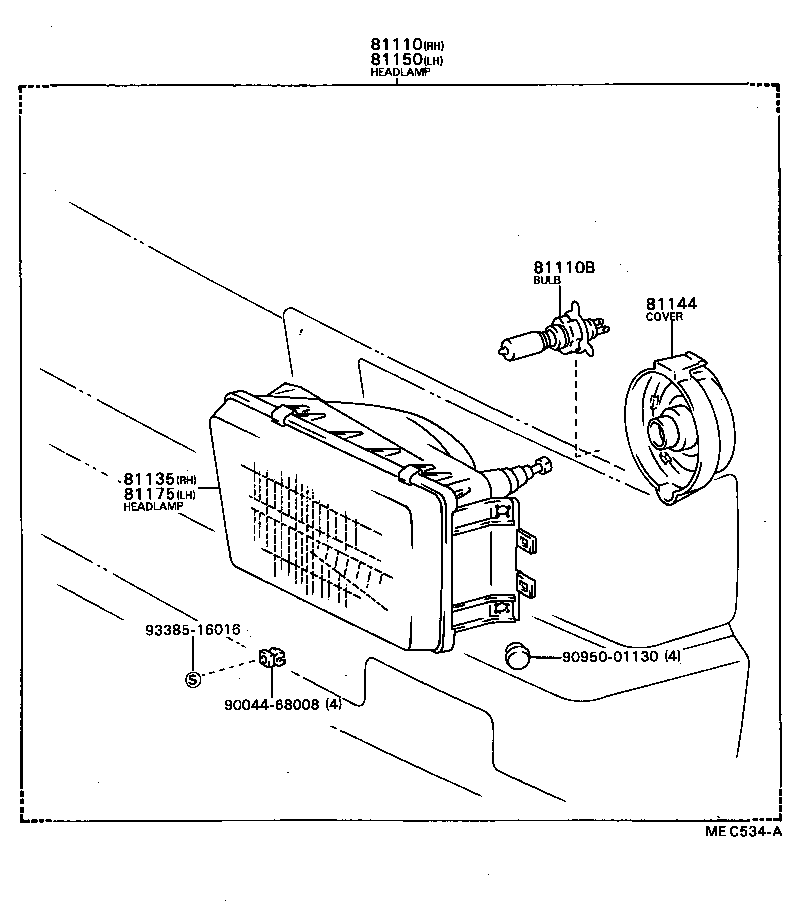

Click highlighted areas on diagram

diagram 81110 81110B 81135 81144 81150 81175 9004468008 9095001130 9338516016
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80275

CR21,YR2#,31..LHD

HALOGEN,WHITE

 1
81110-80274

CR21,YR2#,31..LHD

 1
81110-80276

CR21,YR20,21..LHD

HALOGEN,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

CR21,YR20,21..LHD

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW

 2
90981-13013

CR21,YR20,21

12V 45/40W,WHITE,12V 45/40W

 2
90981-13015

CR21,YR2#,31

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-28010

CR21,YR2#,31..LHD

 1
81135-28020

CR21,YR2#,31..LHD

HALOGEN,WHITE

 1
81135-28030

CR21,YR20,21..LHD

HALOGEN,YELLOW

 1
81144 - COVER, HEADLAMP, NO.1
81139-95714

CR21,YR2#

 2
81150 - HEADLAMP ASSY, LH
81150-80271

CR21,YR2#,31..LHD

 1
81150-80273

CR21,YR20,21..LHD

HALOGEN,YELLOW

 1
81150-80272

CR21,YR2#,31..LHD

HALOGEN,WHITE

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-28020

CR21,YR2#,31..LHD

HALOGEN,WHITE

 1
81175-28010

CR21,YR2#,31..LHD

 1
81175-28030

CR21,YR20,21..LHD

HALOGEN,YELLOW

 1
Common parts
90044-68008
90950-01130
93385-16016
