YR20LG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )2Y#,3Y#

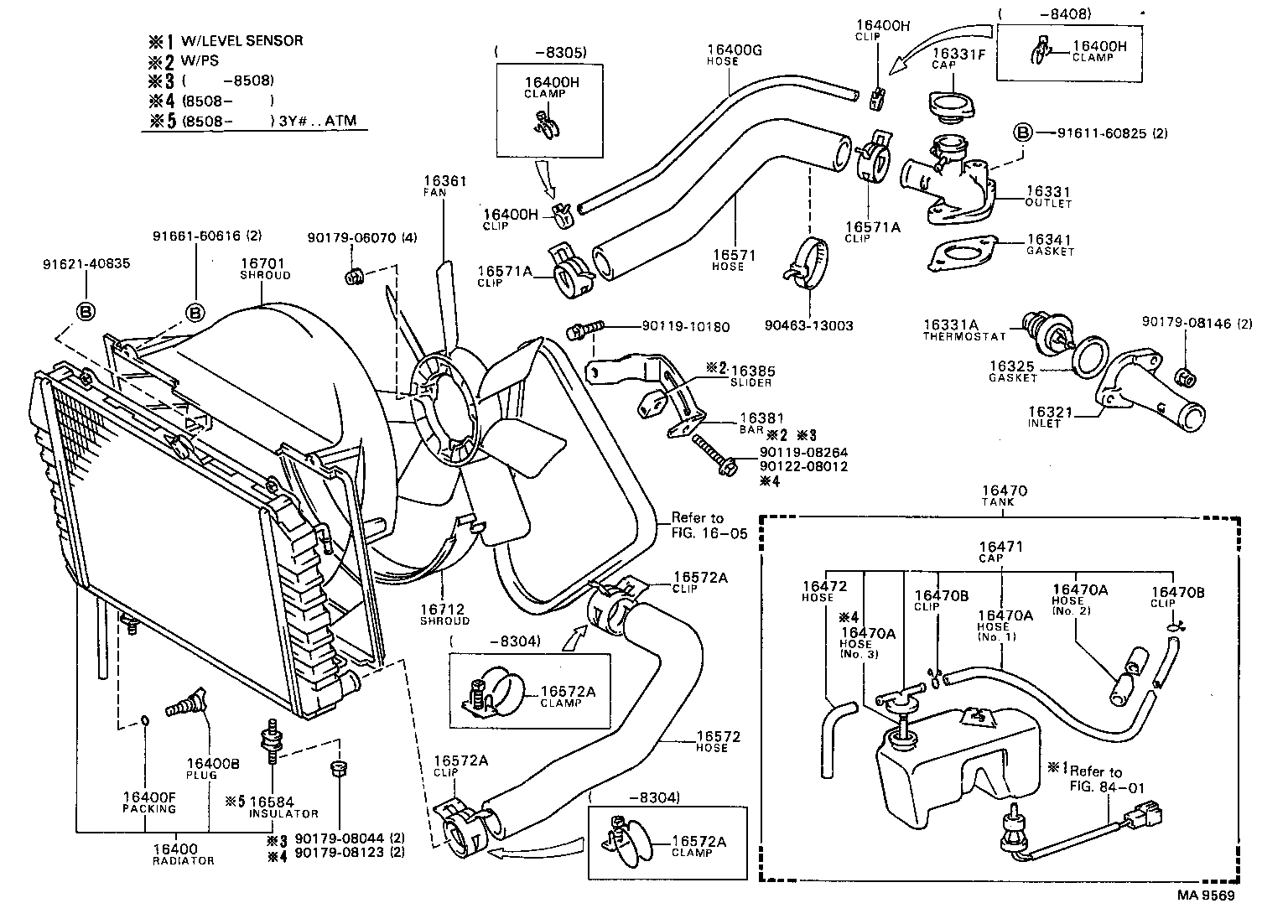

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16331F 16341 16361 16381 16385 16400 16400B 16400F 16400G 16400H 16400H 16400H 16400H 16470 16470A 16470A 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16572A 16572A 16584 16701 16712 8401 9011908264 9011910180 9012208012 9017906070 9017908044 9017908123 9017908146 9046313003 9161160825 9162140835 9166160616
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

2Y#,3Y#,4YEC..YR2#,31

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y#,3Y#,4YEC..YR2#,31

 1
16331 - OUTLET, WATER
16304-71010

2Y#,3Y#..YR20,21

 1
16331A - THERMOSTAT
90916-03046

2Y#,3Y#..YR2#

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

2Y#,3Y#..YR2#

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y#,3Y#,4YEC..YR2#,31

 1
16361 - FAN
16361-38010

2Y#,3Y#,4YEC..YR2#,31

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

2Y#,3Y#..YR2#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

2Y#,3Y#,4YEC..YR2#,31

W/PS

 1
16400 - RADIATOR ASSY
16400-71010

2Y..YR20..5F..EUR

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2Y#..YR20

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2Y#..YR20

 1
16400G - HOSE(FOR RADIATOR BREATHER)
99556-10400

2Y#..YR20

*H,L=400

 1
99552-10400

2Y#..YR20

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90460-14001

2Y#,3Y#..YR2#

OUTLET SIDE

 1
90460-14001

2Y#..YR20

 2
90467-13001

2Y#,3Y#..YR2#

RADIATOR SIDE

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90460-14001

2Y#,3Y#..YR2#

OUTLET SIDE

 1
90460-14001

2Y#..YR20

 2
90467-13001

2Y#,3Y#..YR2#

RADIATOR SIDE

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90460-14001

2Y#,3Y#..YR2#

OUTLET SIDE

 1
90460-14001

2Y#..YR20

 2
90467-13001

2Y#,3Y#..YR2#

RADIATOR SIDE

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90460-14001

2Y#,3Y#..YR2#

OUTLET SIDE

 1
90460-14001

2Y#..YR20

 2
90467-13001

2Y#,3Y#..YR2#

RADIATOR SIDE

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y#,3Y#..YR2#

*H,L=620,NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y#,3Y#..YR2#

*H,L=620,NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y#,3Y#..YR2#

*H,L=620,NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3Y#,4YEC..YR2#,31

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3Y#,4YEC..YR2#,31

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-71010

2Y#,3Y#..YR2#

 1
16472 - HOSE, BREATHER
90099-33393

2Y#,3Y#..YR2#

 1
16571 - HOSE, RADIATOR, INLET
16571-71010

2Y#..YR20

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3Y#,4YEC..YR2#,31

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3Y#,4YEC..YR2#,31

 2
16572 - HOSE, RADIATOR, OUTLET
16572-71010

2Y#,3Y#,4YEC..YR2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2Y#..YR20

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2Y#..YR20

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2Y#..YR20

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2Y#..YR20

 2
16584 - INSULATOR, RADIATOR MOUNTING
17853-38010

2Y#,3Y#..YR2#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-71010

2Y#..YR20

 1
16712 - SHROUD, FAN, NO.2
16712-71010

2Y#,3Y#,4YEC..YR2#

 1
Common parts
90119-08264
90119-10180
90122-08012
90179-06070
90179-08044
90179-08123
90179-08146
90463-13003
91611-60825
91621-40835
91661-60616
Linked diagrams
1605
8401
