YR20LG-MD (1982)
Toyota Model-F

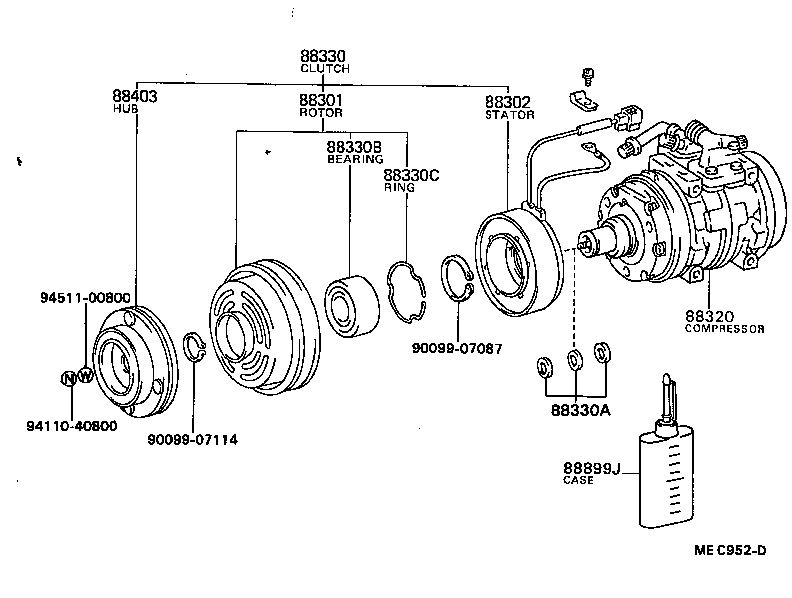

ILLUST NO. 2 OF 3(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
YR2#,31..ARL,GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28030 |
YR2#..ARL,GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
YR2#..ARL,GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
YR2#,31..ARL,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88899J - CASE, OIL | ||||
| 88899-28040 |
YR20,21..LHD..GEN |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

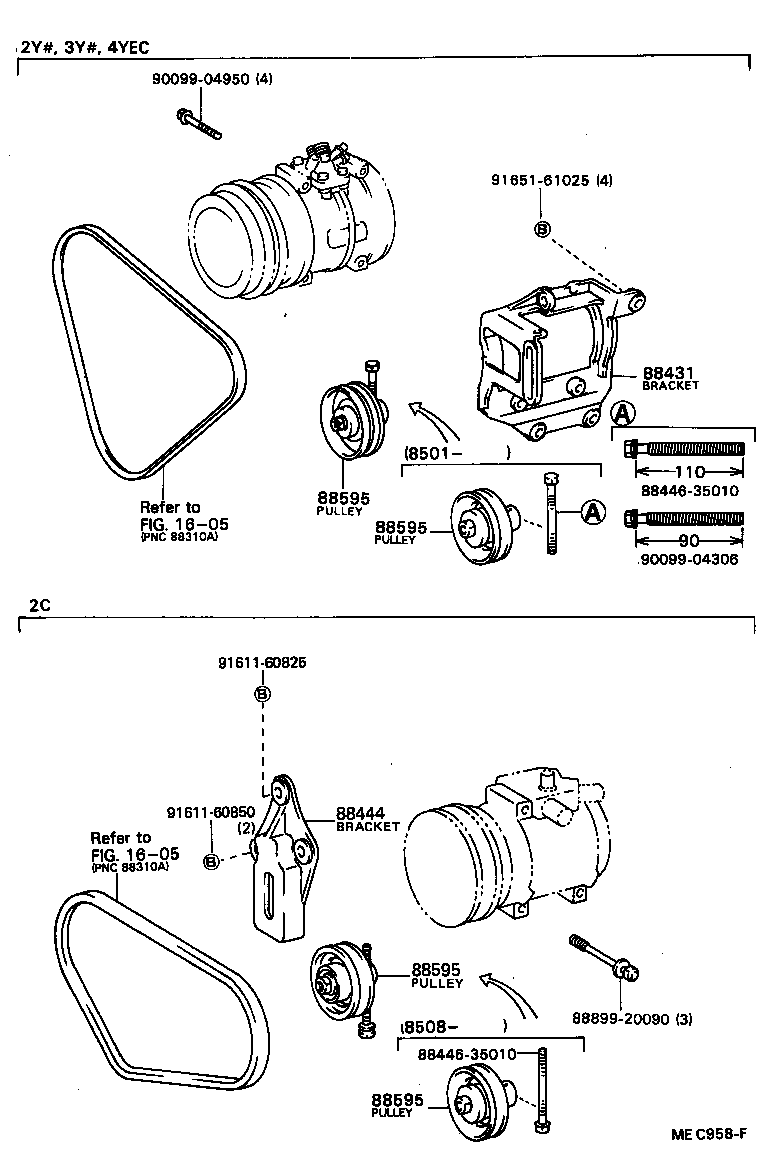

ILLUST NO. 1 OF 3(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28050 |
YR2#..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28050 |
YR2#..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28050 |
YR2#..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28050 |
YR2#..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28050 |
YR2#..ARL,GEN |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90099-04950 | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 3 OF 3(8211- )YR2#,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
YR2#,31..ARL,GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14010 |
YR2#..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
CR21,YR20,21..ARL,GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
YR2#..ARL,GEN |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
CR21,YR2#,31..ARL,GEN |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
CR21,YR2#..ARL,GEN |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
CR21,YR2#..ARL,GEN |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
CR21,YR2#,31..ARL,GEN RR |
1 | ||
| 88321-14011 |
CR21,YR2#,31..ARL,GEN FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
CR21,YR2#,31..ARL,GEN RR |
1 | ||
| 88321-14011 |
CR21,YR2#,31..ARL,GEN FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
CR21,YR2#,31..ARL,GEN RR |
1 | ||
| 88341-14010 |
CR21,YR2#,31..ARL,GEN FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
CR21,YR2#,31..ARL,GEN RR |
1 | ||
| 88341-14010 |
CR21,YR2#,31..ARL,GEN FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
CR21,YR2#,31..ARL,GEN |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
CR21,YR2#,31..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
CR21,YR2#,31..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
CR21,YR2#,31..ARL,GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-28020 |
YR2#..ARL,GEN |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-28020 |
YR2#..ARL,GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
CR21,YR2#,31..ARL,GEN |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
CR21,YR2#,31..ARL,GEN |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
CR21,YR2#,31..ARL,GEN |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-28021 |
YR20,21..ARL,GEN |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
YR2#..ARL,GEN |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
YR2#..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
YR2#..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
YR2#..ARL,GEN |
2 | ||
