CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CR21

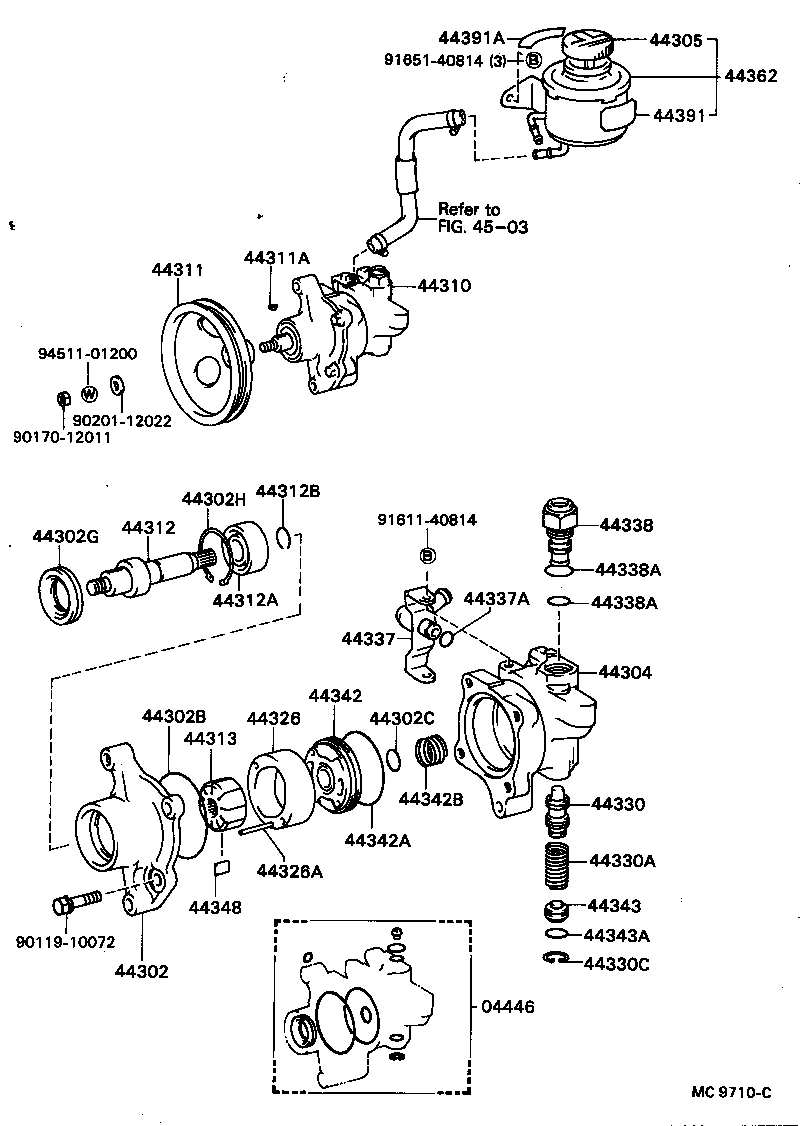

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44337 44337A 44338 44338A 44338A 44342 44342A 44342B 44343 44343A 44348 44362 44391 44391A 4503 9011910072 9017012011 9020112022 9161140814 9165140814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-14010

CR21,YR2#,31

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-14010

CR21,YR2#,31

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

CR21,YR2#,31

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

CR21,YR2#,31

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

CR21,YR2#,31

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

CR21,YR2#,31

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-27010

CR21

 1
44310 - PUMP ASSY, VANE
44320-27021

CR21

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

CR21,YR2#,31

 1
44312 - SHAFT, VANE PUMP
44312-12010

CR21,YR2#,31

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

CR21,YR2#,31

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

CR21,YR2#,31

 1
44313 - ROTOR, VANE PUMP
44313-12010

CR21,YR2#,31

NO MARK

 1
44313-12030

CR21,YR2#,31

MARK 2,MARK 2

 1
44313-12020

CR21,YR2#,31

MARK 1,MARK 1

 1
44313-12050

CR21,YR2#,31

MARK 4,MARK 4

 1
44313-12040

CR21,YR2#,31

MARK 3,MARK 3

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12010

CR21,YR2#,31

NO MARK

 1
44325-12030

CR21,YR2#,31

MARK 2,MARK 2

 1
44325-12050

CR21,YR2#,31

MARK 4,MARK 4

 1
44325-12020

CR21,YR2#,31

MARK 1,MARK 1

 1
44325-12040

CR21,YR2#,31

MARK 3,MARK 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

CR21,YR2#,31

L=25,OD=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-12150

CR21,YR2#,31

MARK C,MARK C

 1
44330-12170

CR21,YR2#,31

MARK E,MARK E

 1
44330-12140

CR21,YR2#,31

MARK B,MARK B

 1
44330-12160

CR21,YR2#,31

MARK D,MARK D

 1
44330-12180

CR21,YR2#,31

MARK F,MARK F

 1
44330-12130

CR21,YR2#,31

MARK A,MARK A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

CR21,YR2#,31

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

CR21,YR2#,31

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-27010

CR21,YR2#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013

CR21,YR2#,31

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

CR21,YR2#,31

OD=25.5,ID=22.5,ID=22.5

 1
96711-19014

CR21,YR2#,31

OD=17.0,ID=13.0,ID=14

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

CR21,YR2#,31

OD=25.5,ID=22.5,ID=22.5

 1
96711-19014

CR21,YR2#,31

OD=17.0,ID=13.0,ID=14

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

CR21,YR2#,31

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

CR21,YR2#,31

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

CR21,YR2#,31

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

CR21,YR2#,31

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

CR21,YR2#,31

 1
44348 - PLATE, VANE PUMP
44345-12020

CR21,YR2#,31

L=14.995,L=14.994-14.996,ROTOR MARK 1

 10
44345-12040

CR21,YR2#,31

L=14.991,L=14.990-14.992,ROTOR MARK 3

 10
44345-12050

CR21,YR2#,31

L=14.989,L=14.998-14.990,ROTOR MARK 4

 10
44345-12030

CR21,YR2#,31

L=14.993,L=14.992-14.994,ROTOR MARK 2

 10
44345-12010

CR21,YR2#,31

L=14.997,L=14.996-14.998,ROTOR NO MARK

 10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44360-28011

YR20,21

 1
Common parts
90119-10072
90170-12011
90201-12022
91611-40814
91651-40814
94511-01200
Linked diagrams
4503
