CR21RG-MDW (1983)
Toyota Model-F
Production
May 1983
-
Aug 1984
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )CR21 ; (8408- )YR2#,31..5F

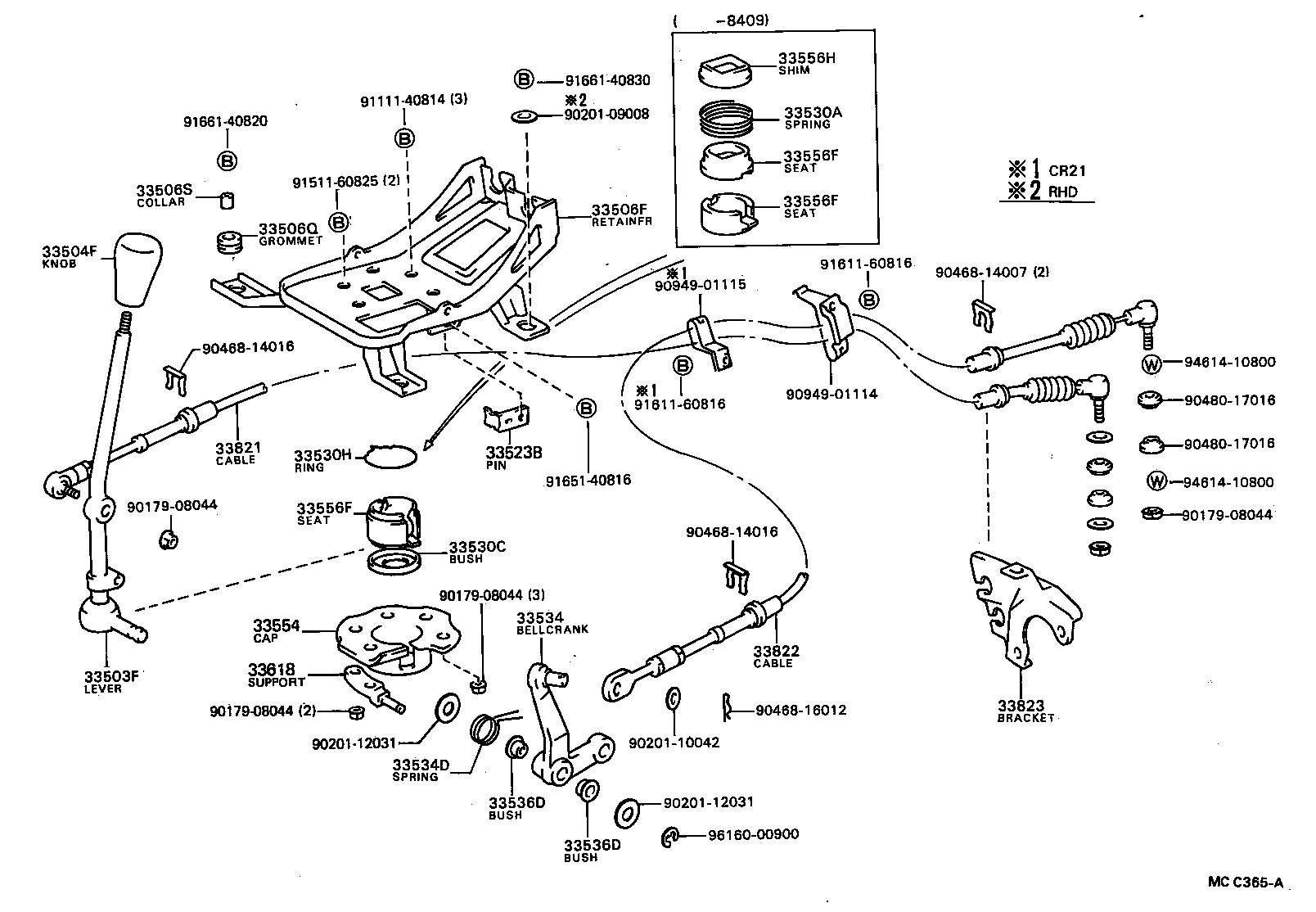

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-28060 |
CR21..RHD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401023 |
CR21,YR2#..5F URETHAN,GRAY,GRAY,TRIM1# |
1 | ||
| 33504-2401005 |
CR21,YR2#..5F URETHAN,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-28040 |
CR21 |
1 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13012 |
CR21,YR2#,31..5F |
4 | ||
| 33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
CR21,YR2#,31..5F |
4 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-28020 |
CR21 |
1 | ||
| 33530A - SPRING, COMPRESSION (FOR SHIFT LEVER) | ||||
| 90501-08049 |
CR21 |
1 | ||
| 90501-10075 |
CR21 |
1 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-28030 |
CR21 |
1 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-28001 |
CR21 |
1 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
CR21 |
2 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
CR21 |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-28020 |
CR21 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-28010 |
CR21 UPR |
1 | ||
| 33556-28020 |
CR21 LWR |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-28010 |
CR21 UPR |
1 | ||
| 33556-28020 |
CR21 LWR |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-28020 |
CR21 LWR |
1 | ||
| 33556-28010 |
CR21 UPR |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-36001 |
CR21 |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-28010 |
CR21 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-28010 |
CR21 |
1 | ||
| Common parts | ||||
| 90179-08044 | ||||
| 90201-09008 | ||||
| 90201-10042 | ||||
| 90201-12031 | ||||
| 90468-14007 | ||||
| 90468-14016 | ||||
| 90468-16012 | ||||
| 90480-17016 | ||||
| 90949-01114 | ||||
| 90949-01115 | ||||
| 91111-40814 | ||||
| 91511-60825 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91661-40820 | ||||
| 91661-40830 | ||||
| 94614-10800 | ||||
| 96160-00900 | ||||
