CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CR21

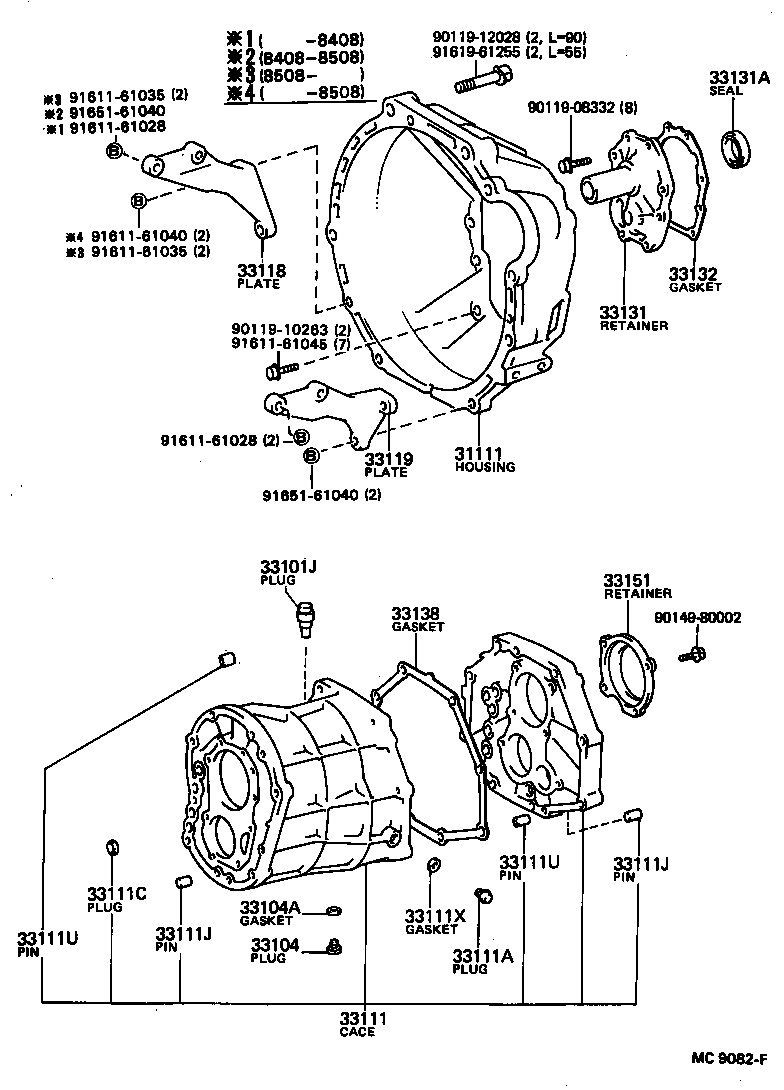

Click highlighted areas on diagram

diagram 31111 33101J 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908332 9011910263 9011912028 9014980002 9161161028 9161161028 9161161035 9161161035 9161161040 9161161045 9161961255 9165161040 9165161040
Part # Description Qty Price
33101J - PLUG, BREATHER
90930-03085

CR21,YR2#,31..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CR21,YR20..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

CR21,YR2#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-28010

CR21,YR2#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

CR21,YR2#,31..5F

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CR21,YR2#,31..5F

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CR21,YR2#,31..5F

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

CR21,YR2#,31..5F

L=14,OD=15,L=14,OD=15

 2
90253-11001

CR21,YR2#,31..5F

L=11,OD=11,L=11,OD=11

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

CR21,YR2#,31..5F

L=14,OD=15,L=14,OD=15

 2
90253-11001

CR21,YR2#,31..5F

L=11,OD=11,L=11,OD=11

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

CR21,YR2#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-14030

CR21

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-28010

CR21,YR20..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

CR21,YR2#,31..5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010

CR21,YR2#,31..5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33138-28010

CR21,YR2#,31..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-28010

CR21,YR2#,31..5F

 1
Common parts
90119-08332
90119-10263
90119-12028
90149-80002
91611-61028
91611-61035
91611-61040
91611-61045
91619-61255
91651-61040
