CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CR21

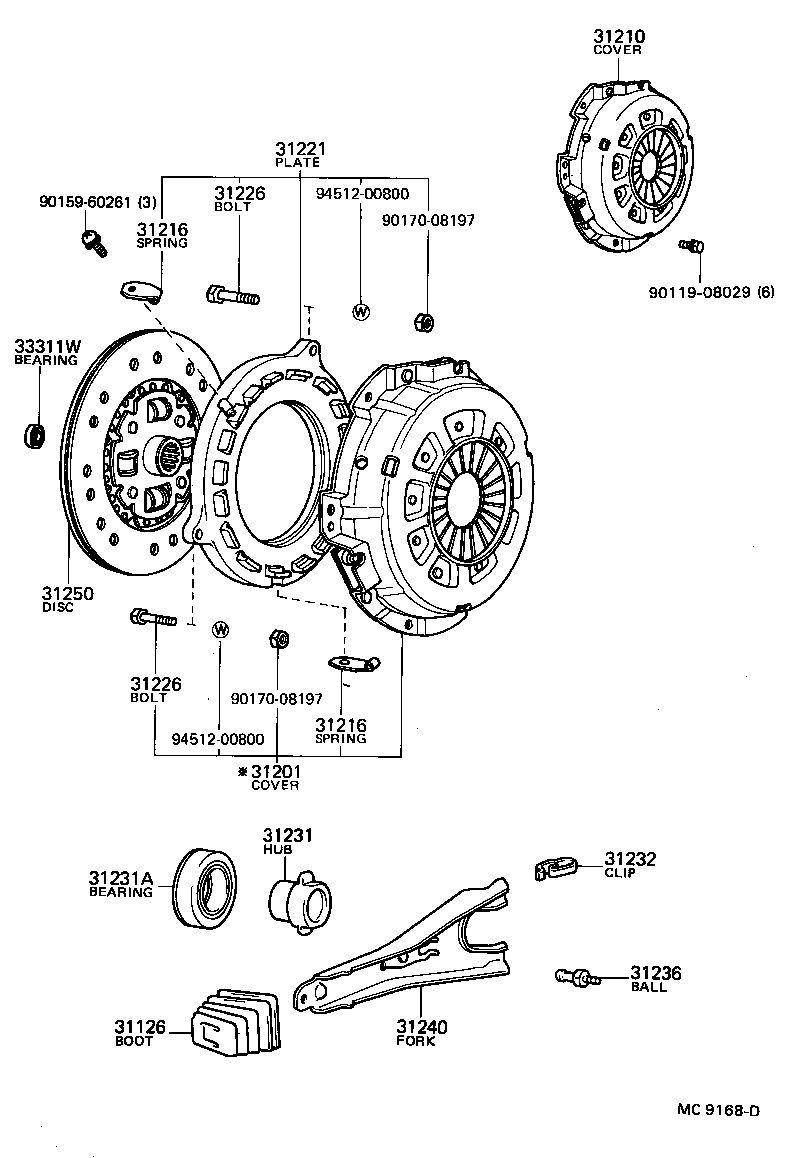

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31236 31240 31250 33311W 9011908029 9015960261 9017008197 9017008197 9451200800 9451200800
Part # Description Qty Price
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

CR21,YR20..5F

 1
31210 - COVER ASSY, CLUTCH
31210-26030

CR21,YR20..5F

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CR21,YR2#..5F

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CR21,YR2#..5F

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29035

CR21,YR20..5F

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

CR21,YR20..5F

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

CR21,YR20..5F

 3
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

CR21,YR2#,31..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

CR21,YR2#,31..5F

 2
31236 - BALL, RELEASE FORK
31236-30060

CR21,YR2#,31..5F

 1
31250 - DISC ASSY, CLUTCH
31250-20111

CR21

 1
Common parts
90119-08029
90159-60261
90170-08197
94512-00800
