CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2C

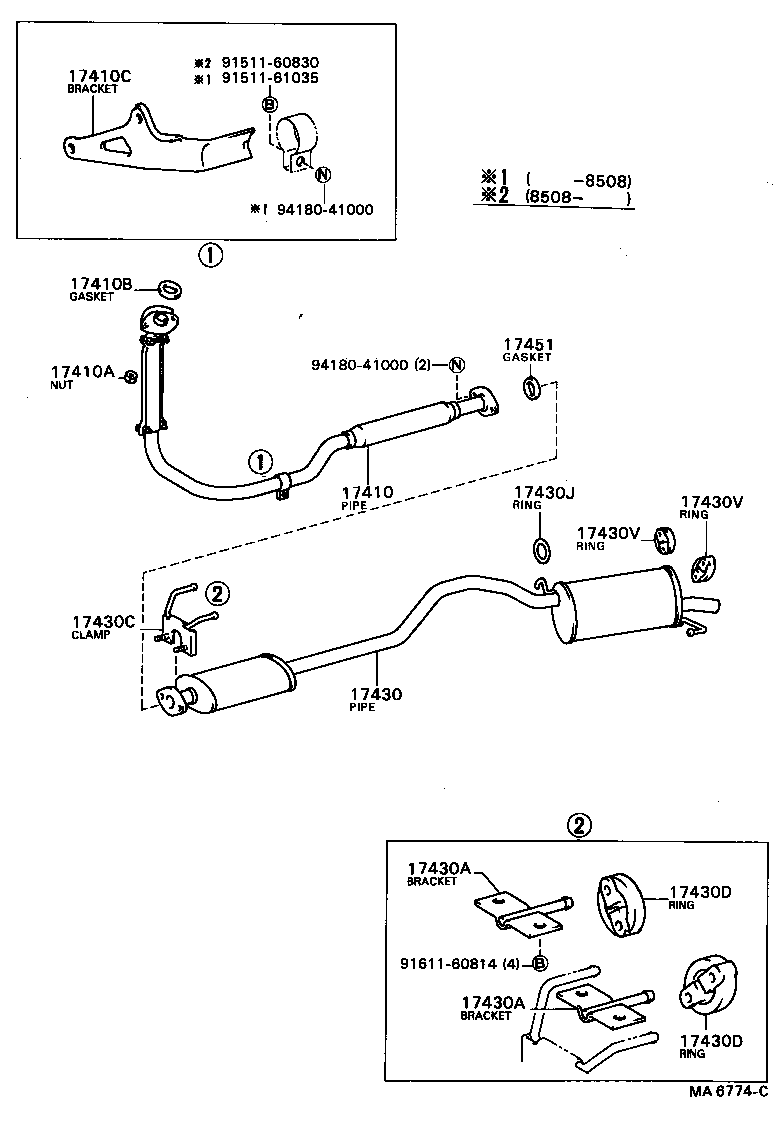

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430A 17430C 17430D 17430D 17430J 17430V 17430V 17451 9151160830 9151161035 9161160814 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64070

2C..CR21

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2C,2Y#,3Y#..CR21,YR2#

 3
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2C,2Y#,3Y#,4YEC..CR21,YR2#,31

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

2C,2Y#,3Y#..CR21,YR2#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

2C,2Y#,3Y#..CR21,YR2#

 2
Common parts
91511-60830
91511-61035
91611-60814
94180-41000
