CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2C

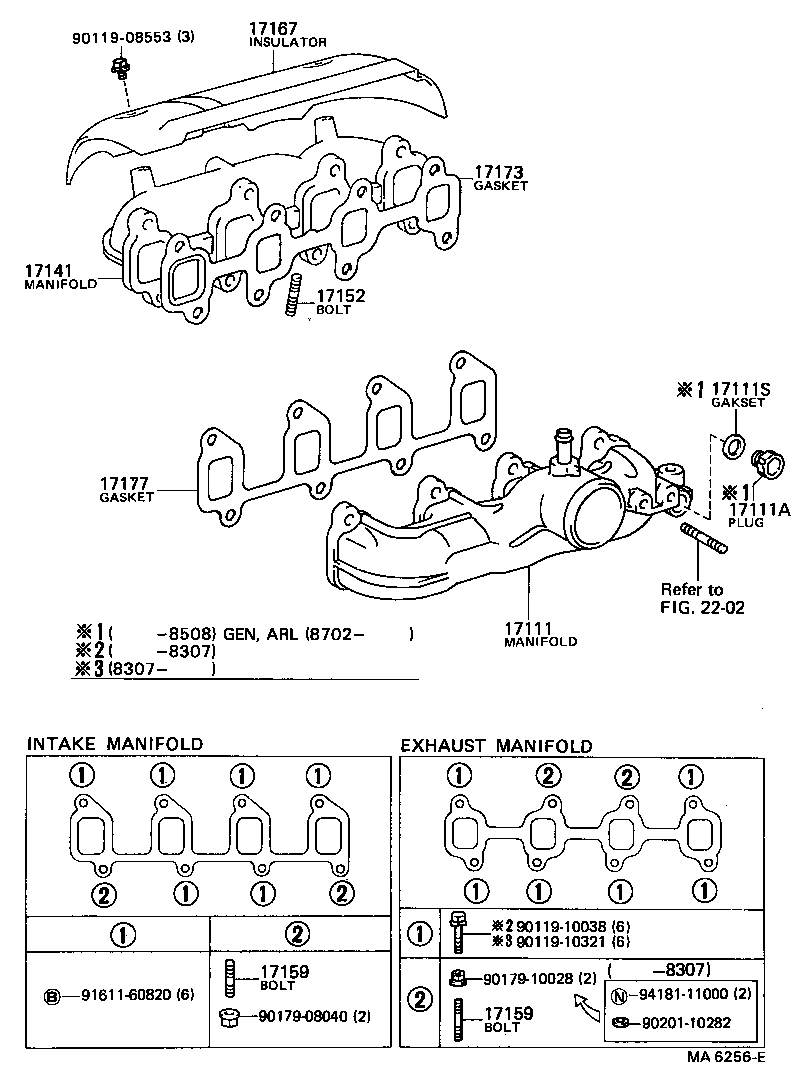

Click highlighted areas on diagram

diagram 17111 17111A 17111S 17141 17152 17159 17159 17167 17173 17177 2202 9011908553 9011910038 9011910321 9017908040 9017910028 9020110282 9161160820 9418111000
Part # Description Qty Price
17141 - MANIFOLD, EXHAUST
17141-64010

2C..CR21

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2C..CR21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61032

2C..CR21

EXHAUST MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61032

2C..CR21

EXHAUST MANIFOLD SIDE

 2
Common parts
90119-08553
90119-10038
90119-10321
90179-08040
90179-10028
90201-10282
91611-60820
94181-11000
Linked diagrams
2202
