CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2C

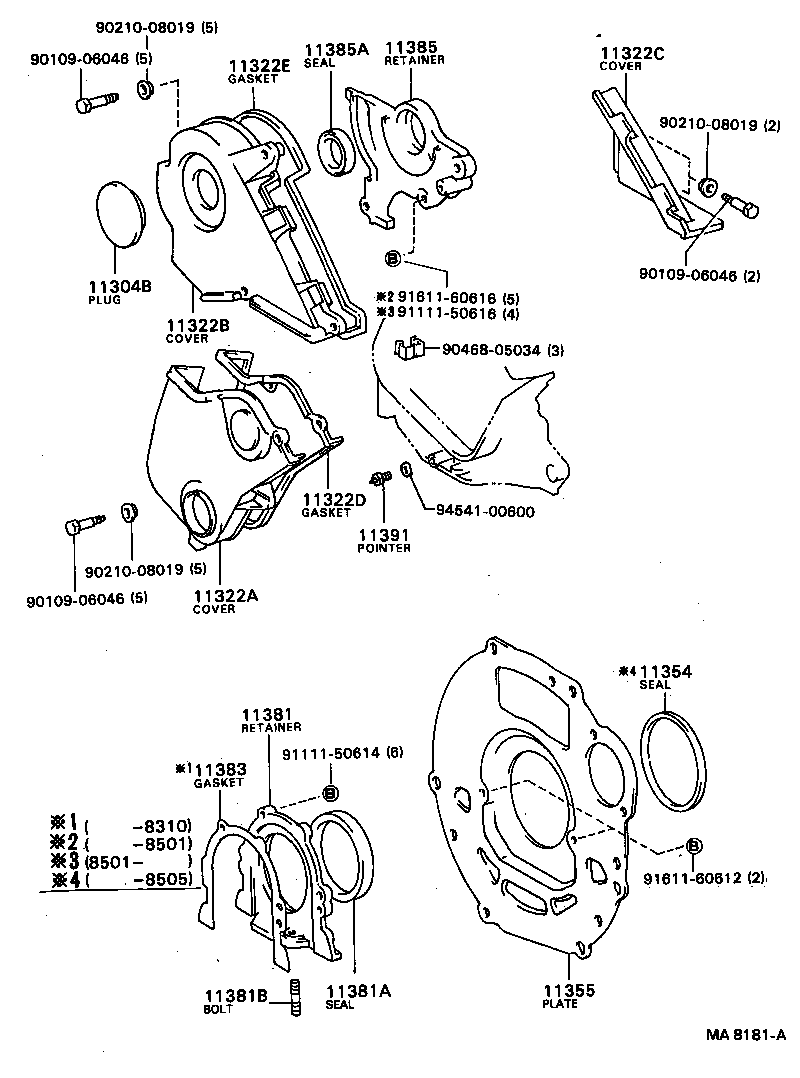

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11354 11355 11381 11381A 11381B 11383 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9111150614 9111150616 9161160612 9161160616 9454100600
Part # Description Qty Price
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64010

2C..CR21

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-64010

2C..CR21

 1
Common parts
90109-06046
90210-08019
90468-05034
91111-50614
91111-50616
91611-60612
91611-60616
94541-00600
