CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2C

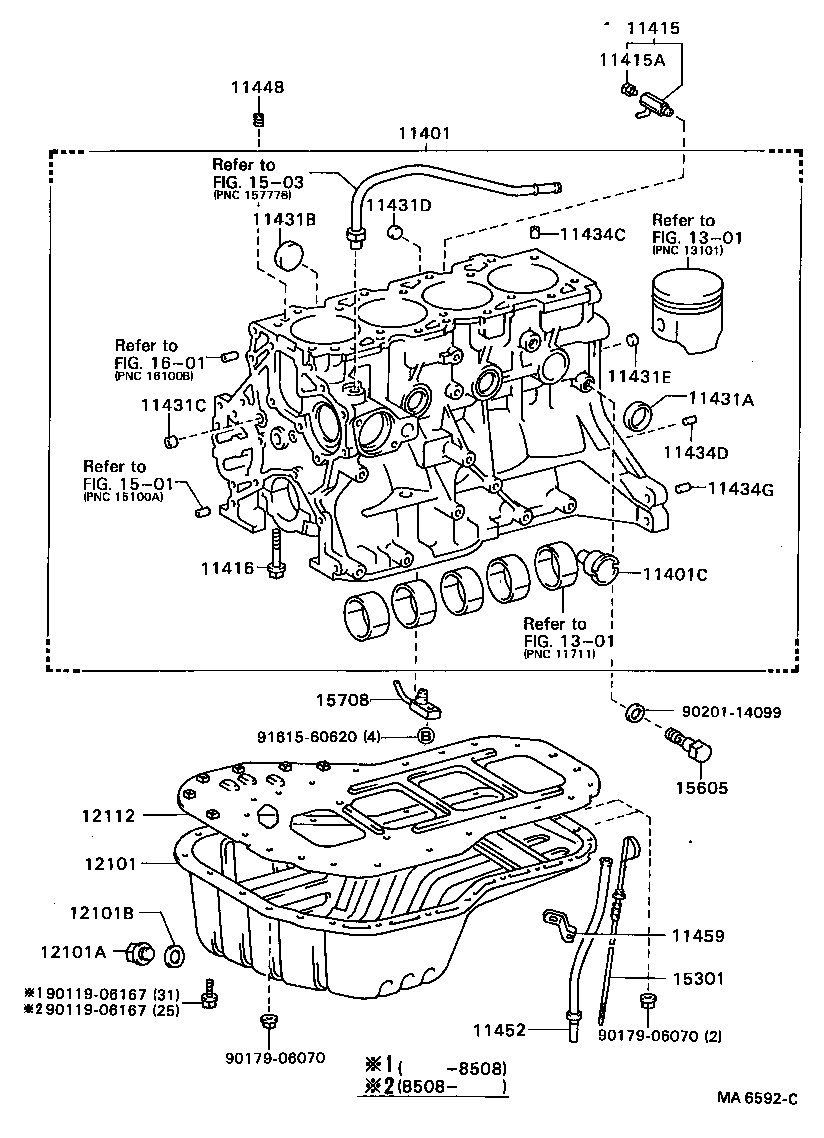

Click highlighted areas on diagram

diagram 11401 11401C 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1301 1501 1503 15301 15605 15708 1601 9011906167 9011906167 9017906070 9017906070 9020114099 9161560620
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69145

2C..CR21

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

2C..CR21

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-10023

2C..CR21

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2C..CR21

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

2C..CR21

ID=18

 1
Common parts
90119-06167
90179-06070
90201-14099
91615-60620
Linked diagrams
1301
1501
1503
1601
