CR21RG-MDQ (1983)
Toyota Model-F

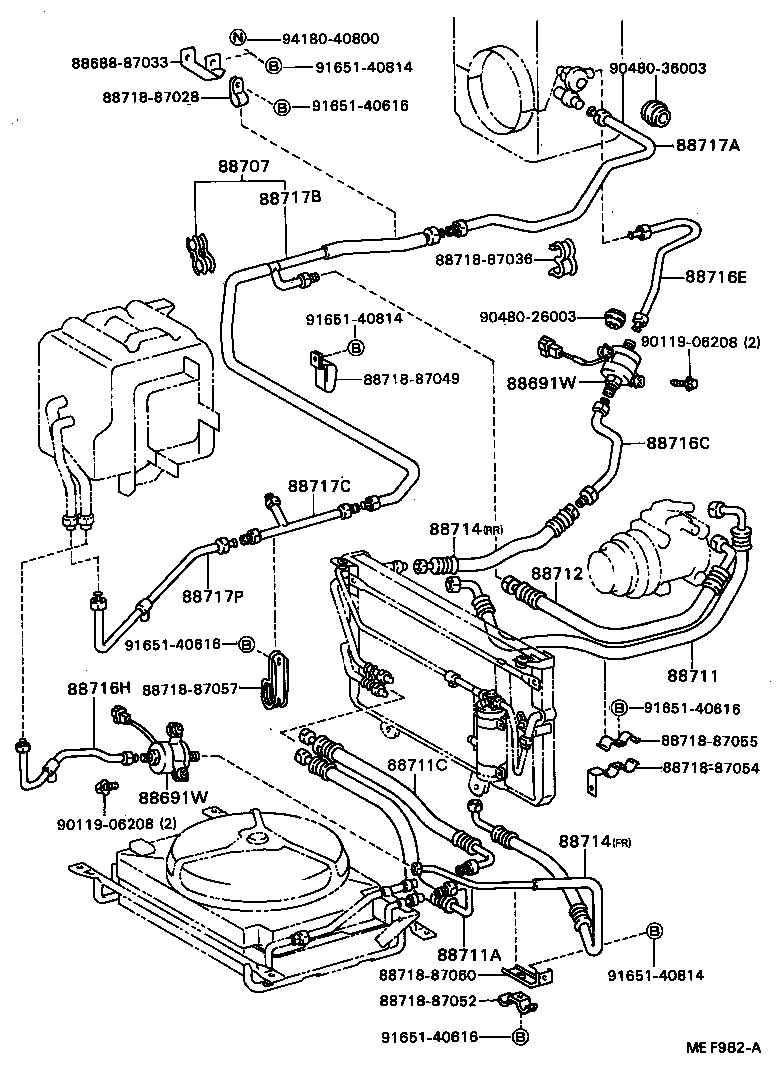

ILLUST NO. 2 OF 3(8305-8508)CR21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88481-87003 |
CR21,YR20,21..ARL,GEN W/COOL BOX |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-87015 |
CR21,YR2#..ARL,GEN FR COOLER |
1 | ||
| 88691-87001 |
CR21,YR2#..ARL,GEN RR COOLER |
1 | ||
| 88690-87015 |
CR21,YR2#..ARL FR COOLER |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-87015 |
CR21,YR2#..ARL,GEN FR COOLER |
1 | ||
| 88691-87001 |
CR21,YR2#..ARL,GEN RR COOLER |
1 | ||
| 88690-87015 |
CR21,YR2#..ARL FR COOLER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-87017 |
CR21..ARL,GEN |
1 | ||
| 88711-87014 |
CR21..ARL |
1 | ||
| 88711-87024 |
CR21 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87010 |
CR21..ARL,GEN |
1 | ||
| 88712-87014 |
CR21 |
1 | ||
| 88712-87008 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-87005 |
CR21,YR20,21..ARL,GEN RR COOLER |
1 | ||
| 88721-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88721-87011 |
CR21,YR2#..ARL RR |
1 | ||
| 88721-87008 |
CR21,YR2#..ARL FR |
1 | ||
| 88721-87013 |
CR21 RR |
1 | ||
| 88721-87003 |
CR21,YR20,21..ARL,GEN FR COOLER |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-87005 |
CR21,YR20,21..ARL,GEN RR COOLER |
1 | ||
| 88721-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88721-87011 |
CR21,YR2#..ARL RR |
1 | ||
| 88721-87008 |
CR21,YR2#..ARL FR |
1 | ||
| 88721-87013 |
CR21 RR |
1 | ||
| 88721-87003 |
CR21,YR20,21..ARL,GEN FR COOLER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-87024 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-87027 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-87028 |
CR21,YR2#..ARL |
1 | ||
| 88716-87028 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88721-87004 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 88716-87040 |
CR21,YR2#..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88716-87036 |
CR21,YR21..RHD..(ARL,GEN) |
1 | ||
| 88716-87056 |
CR21,YR2#..ARL W/COOL BOX |
1 | ||
| 88716-87046 |
CR21,YR2#..ARL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-87019 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-87017 |
CR21..ARL,GEN |
1 | ||
| 88717-87034 |
CR21..ARL,GEN W/COOL BOX |
1 | ||
| 88717-87016 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88717-87043 |
CR21,YR2#..ARL |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-87046 |
CR21,YR2#..ARL |
1 | ||
| 88717-87038 |
CR21,YR2#..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88717-87028 |
CR21,YR20..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88717-87041 |
CR21,YR2#..ARL W/COOL BOX |
1 | ||
| 88717P - PIPE, COOLER REFRIGERANT SUCTION, P | ||||
| 88717-87040 |
CR21,YR2#..ARL |
1 | ||
| 88717-87020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88688-87012 | ||||
| 88717-87047 | ||||
| 88718-87028 | ||||
| 88718-87030 | ||||
| 88718-87031 | ||||
| 88718-87032 | ||||
| 88718-87033 | ||||
| 88718-87036 | ||||
| 88718-87046 | ||||
| 88718-87048 | ||||
| 90119-06208 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94180-40600 | ||||

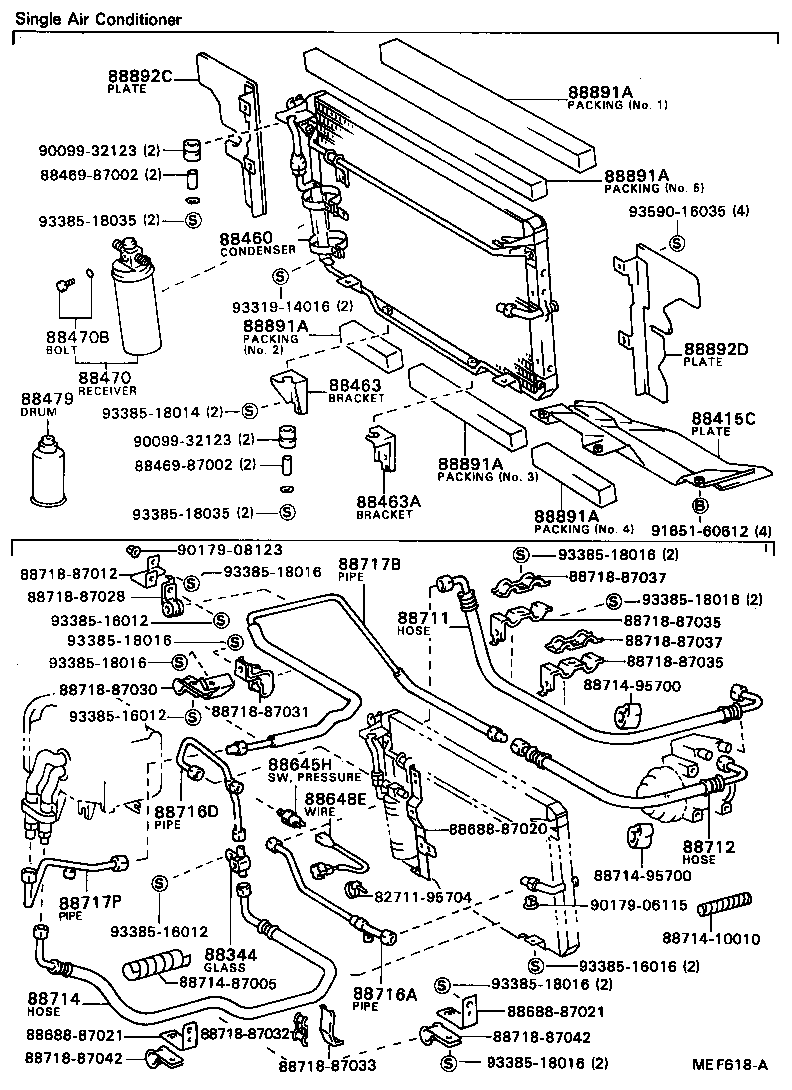

ILLUST NO. 1 OF 3(8211-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415C - COVER, DUST, NO.1 | ||||
| 88415-28010 |
CR21..ARL,GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88450-87005 |
CR21,YR2#..ARL RADIATOR |
1 | ||
| 88460-87008 |
CR21,YR2#..ARL FLOOR |
1 | ||
| 88460-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-87009 |
CR21,YR2#..ARL |
1 | ||
| 88463-87008 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87012 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-87013 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463-87011 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87010 |
CR21,YR2#..ARL |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CR21,YR2#..ARL |
1 | ||
| 90099-04579 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CR21,YR20,21..ARL,GEN 400G |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88645-12020 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-87004 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88362-87001 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88892D - PLATE, CONDENSER, NO.2 | ||||
| 88362-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91661-40835 | ||||
ILLUST NO. 1 OF 3(8408- )CR21..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88481-87003 |
CR21,YR20,21..ARL,GEN W/COOL BOX |
1 | ||
| 88415C - COVER, DUST, NO.1 | ||||
| 88415-28010 |
CR21..ARL,GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88450-87005 |
CR21,YR2#..ARL RADIATOR |
1 | ||
| 88460-87008 |
CR21,YR2#..ARL FLOOR |
1 | ||
| 88460-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-87009 |
CR21,YR2#..ARL |
1 | ||
| 88463-87008 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87012 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-87013 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463-87011 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87010 |
CR21,YR2#..ARL |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CR21,YR2#..ARL |
1 | ||
| 90099-04579 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CR21,YR20,21..ARL,GEN 400G |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88645-12020 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-87004 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-87017 |
CR21..ARL,GEN |
1 | ||
| 88711-87014 |
CR21..ARL |
1 | ||
| 88711-87024 |
CR21 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87010 |
CR21..ARL,GEN |
1 | ||
| 88712-87014 |
CR21 |
1 | ||
| 88712-87008 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-87005 |
CR21,YR20,21..ARL,GEN RR COOLER |
1 | ||
| 88721-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88721-87011 |
CR21,YR2#..ARL RR |
1 | ||
| 88721-87008 |
CR21,YR2#..ARL FR |
1 | ||
| 88721-87013 |
CR21 RR |
1 | ||
| 88721-87003 |
CR21,YR20,21..ARL,GEN FR COOLER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-87029 |
CR21..ARL |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-87032 |
CR21,YR20..RHD..(ARL,GEN) |
1 | ||
| 88716-87045 |
CR21,YR2#..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88716-87049 |
CR21,YR2#,31..ARL W/COOL BOX |
1 | ||
| 88716-28070 |
CR21..ARL |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-87017 |
CR21..ARL,GEN |
1 | ||
| 88717-87034 |
CR21..ARL,GEN W/COOL BOX |
1 | ||
| 88717-87016 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88717-87043 |
CR21,YR2#..ARL |
1 | ||
| 88717P - PIPE, COOLER REFRIGERANT SUCTION, P | ||||
| 88717-87040 |
CR21,YR2#..ARL |
1 | ||
| 88717-87020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88362-87001 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88892D - PLATE, CONDENSER, NO.2 | ||||
| 88362-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| Common parts | ||||
| 82711-95704 | ||||
| 88469-87002 | ||||
| 88688-87020 | ||||
| 88688-87021 | ||||
| 88714-10010 | ||||
| 88714-87005 | ||||
| 88714-95700 | ||||
| 88718-87012 | ||||
| 88718-87028 | ||||
| 88718-87030 | ||||
| 88718-87031 | ||||
| 88718-87032 | ||||
| 88718-87033 | ||||
| 88718-87035 | ||||
| 88718-87037 | ||||
| 88718-87042 | ||||
| 90099-32123 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-60612 | ||||
| 93319-14016 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-18035 | ||||
| 93590-16035 | ||||
ILLUST NO. 2 OF 3(8508- )CR21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691W - VALVE, MAGNET | ||||
| 88690-87015 |
CR21,YR2#..ARL,GEN FR COOLER |
1 | ||
| 88691-87001 |
CR21,YR2#..ARL,GEN RR COOLER |
1 | ||
| 88690-87015 |
CR21,YR2#..ARL FR COOLER |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-87015 |
CR21,YR2#..ARL,GEN FR COOLER |
1 | ||
| 88691-87001 |
CR21,YR2#..ARL,GEN RR COOLER |
1 | ||
| 88690-87015 |
CR21,YR2#..ARL FR COOLER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-87003 |
CR21,YR2#..ARL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-87017 |
CR21..ARL,GEN |
1 | ||
| 88711-87014 |
CR21..ARL |
1 | ||
| 88711-87024 |
CR21 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-87026 |
CR21 |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-87025 |
CR21 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87010 |
CR21..ARL,GEN |
1 | ||
| 88712-87014 |
CR21 |
1 | ||
| 88712-87008 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-87005 |
CR21,YR20,21..ARL,GEN RR COOLER |
1 | ||
| 88721-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88721-87011 |
CR21,YR2#..ARL RR |
1 | ||
| 88721-87008 |
CR21,YR2#..ARL FR |
1 | ||
| 88721-87013 |
CR21 RR |
1 | ||
| 88721-87003 |
CR21,YR20,21..ARL,GEN FR COOLER |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-87005 |
CR21,YR20,21..ARL,GEN RR COOLER |
1 | ||
| 88721-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88721-87011 |
CR21,YR2#..ARL RR |
1 | ||
| 88721-87008 |
CR21,YR2#..ARL FR |
1 | ||
| 88721-87013 |
CR21 RR |
1 | ||
| 88721-87003 |
CR21,YR20,21..ARL,GEN FR COOLER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-87027 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-87028 |
CR21,YR2#..ARL |
1 | ||
| 88716-87028 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88721-87004 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 88716-87040 |
CR21,YR2#..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88716-87036 |
CR21,YR21..RHD..(ARL,GEN) |
1 | ||
| 88716-87056 |
CR21,YR2#..ARL W/COOL BOX |
1 | ||
| 88716-87046 |
CR21,YR2#..ARL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-87019 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-87017 |
CR21..ARL,GEN |
1 | ||
| 88717-87034 |
CR21..ARL,GEN W/COOL BOX |
1 | ||
| 88717-87016 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88717-87043 |
CR21,YR2#..ARL |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-87046 |
CR21,YR2#..ARL |
1 | ||
| 88717-87038 |
CR21,YR2#..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88717-87028 |
CR21,YR20..RHD..(ARL,GEN) W/COOL BOX |
1 | ||
| 88717-87041 |
CR21,YR2#..ARL W/COOL BOX |
1 | ||
| 88717P - PIPE, COOLER REFRIGERANT SUCTION, P | ||||
| 88717-87040 |
CR21,YR2#..ARL |
1 | ||
| 88717-87020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88688-87033 | ||||
| 88718-87028 | ||||
| 88718-87036 | ||||
| 88718-87049 | ||||
| 88718-87052 | ||||
| 88718-87054 | ||||
| 88718-87055 | ||||
| 88718-87057 | ||||
| 88718-87060 | ||||
| 90119-06208 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 94180-40800 | ||||
ILLUST NO. 1 OF 3(8508- )CR21,YR2#..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88481-87003 |
CR21,YR20,21..ARL,GEN W/COOL BOX |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88450-87005 |
CR21,YR2#..ARL RADIATOR |
1 | ||
| 88460-87008 |
CR21,YR2#..ARL FLOOR |
1 | ||
| 88460-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-87002 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88450-87005 |
CR21,YR2#..ARL RADIATOR |
1 | ||
| 88460-87008 |
CR21,YR2#..ARL FLOOR |
1 | ||
| 88460-87007 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-87009 |
CR21,YR2#..ARL |
1 | ||
| 88463-87008 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87012 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-87013 |
CR21..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88463-87011 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463-87010 |
CR21,YR2#..ARL |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-87014 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-87015 |
CR21,YR2#,31..ARL,GEN |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CR21,YR2#..ARL |
1 | ||
| 90099-04579 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CR21,YR20,21..ARL,GEN 400G |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88645-12020 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-87004 |
CR21,YR2#..ARL,GEN |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-87001 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88578-87006 |
CR21..ARL NO.5 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL,GEN NO.2 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL NO.4 |
1 | ||
| 88578-28020 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88578-87005 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88578-87009 |
CR21,YR2#..ARL NO.3 |
1 | ||
| 88578-87004 |
CR21,YR2#..ARL,GEN NO.4 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-28010 |
CR21,YR2#..ARL,GEN NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..ARL,GEN NO.3 |
1 | ||
| 88893-28010 |
CR21,YR2#..ARL NO.1 |
1 | ||
| 88893-28040 |
CR21,YR2#..RHD NO.3 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL NO.2 |
1 | ||
| 88893-28020 |
CR21,YR2#..ARL,GEN NO.2 |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90044-64009 | ||||
| 90179-08058 | ||||
| 91480-40600 | ||||
| 91651-40820 | ||||
| 91661-40835 | ||||
| 94180-40600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
