CR21RG-MD (1983)
Toyota Model-F
Production
May 1983
-
Aug 1985
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

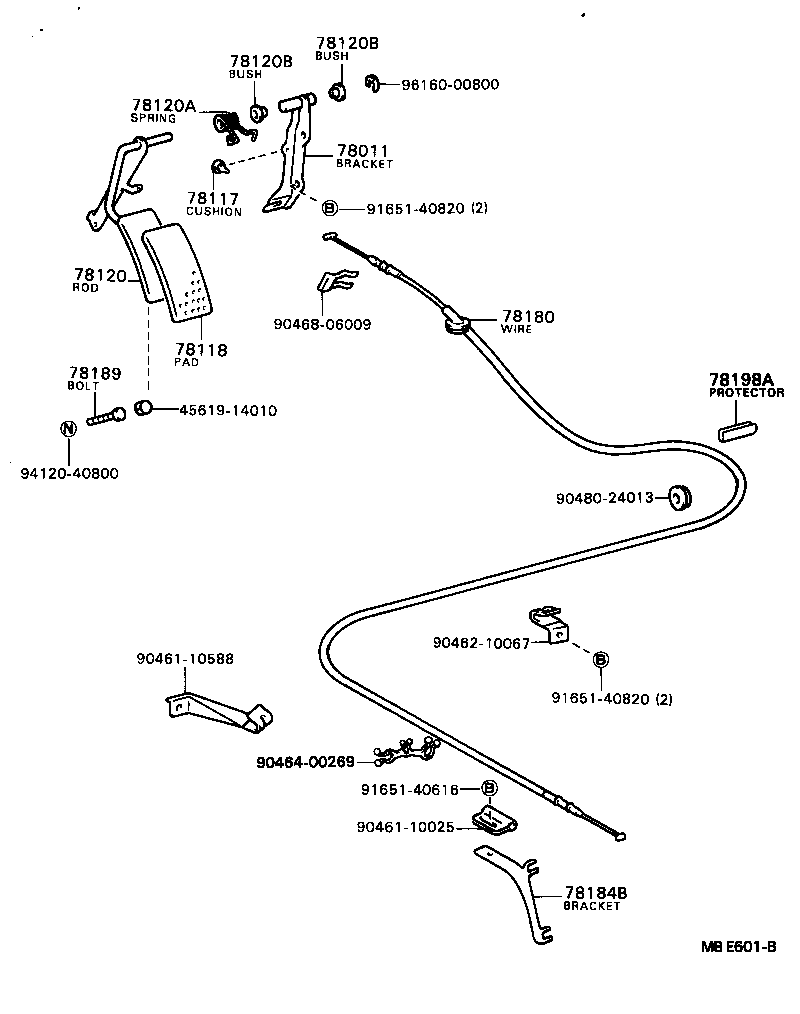

(8305-8501)CR21..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78011 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT | ||||
| 78011-87005 |
CR21..RHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR21,YR2#,31..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR21,YR2#,31 |
1 | ||
| 78120 - ROD, ACCELERATOR LINK | ||||
| 78103-87005 |
CR21..RHD |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-20061 |
CR21,YR20,21..RHD |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-87008 |
YR20,21..RHD |
1 | ||
| 78180-87009 |
CR21..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-87004 |
CR21 |
1 | ||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78198A - PROTECTOR, ACCELERATOR CONTROL CABLE | ||||
| 82991-87002 |
CR21..RHD |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90461-10025 | ||||
| 90461-10588 | ||||
| 90462-10067 | ||||
| 90464-00269 | ||||
| 90468-06009 | ||||
| 90480-24013 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 96160-00800 | ||||

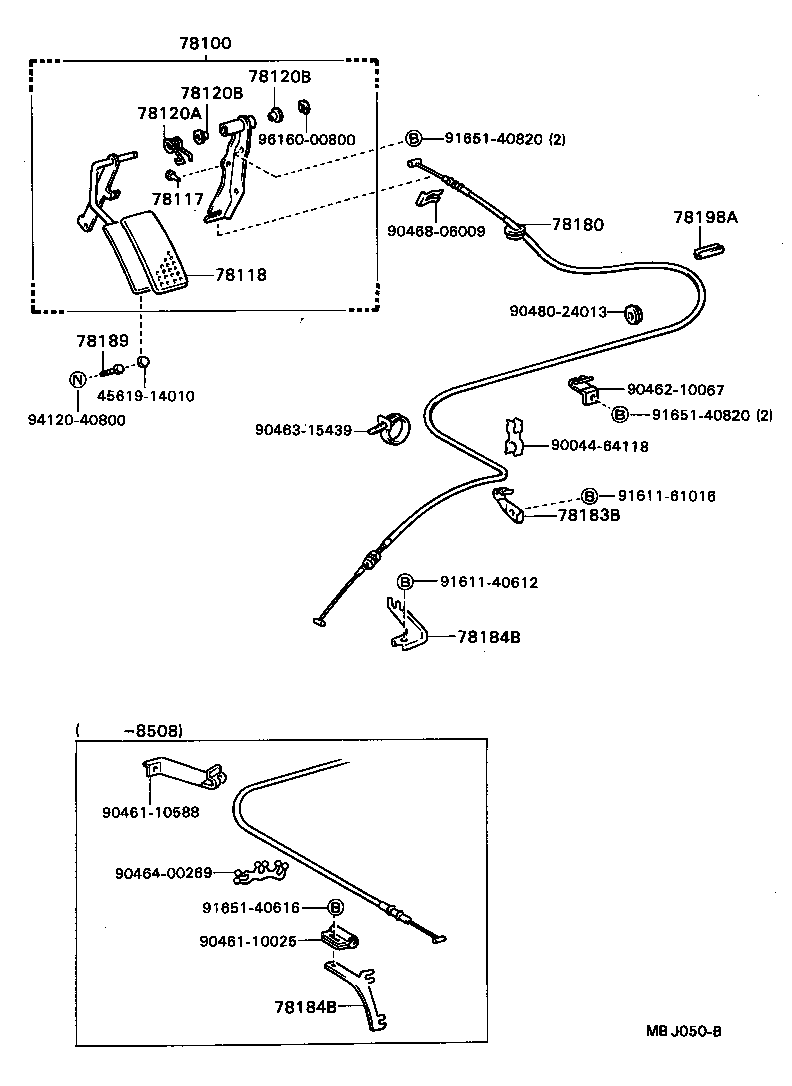

(8501- )CR21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-87009 |
CR21 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR21,YR2#,31..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR21,YR2#,31 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-20061 |
CR21,YR20,21..RHD |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-87008 |
YR20,21..RHD |
1 | ||
| 78180-87009 |
CR21..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-87004 |
CR21 |
1 | ||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-87004 |
CR21 |
1 | ||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78198A - PROTECTOR, ACCELERATOR CONTROL CABLE | ||||
| 82991-87002 |
CR21..RHD |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90044-64118 | ||||
| 90461-10025 | ||||
| 90461-10588 | ||||
| 90462-10067 | ||||
| 90463-15439 | ||||
| 90464-00269 | ||||
| 90468-06009 | ||||
| 90480-24013 | ||||
| 91611-40612 | ||||
| 91611-61016 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 96160-00800 | ||||
