BXD20R-RRPEW (1996)
Toyota Mega Cruiser
Production
Oct 1996
-
Oct 2001
Engine
15BFT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9610- )

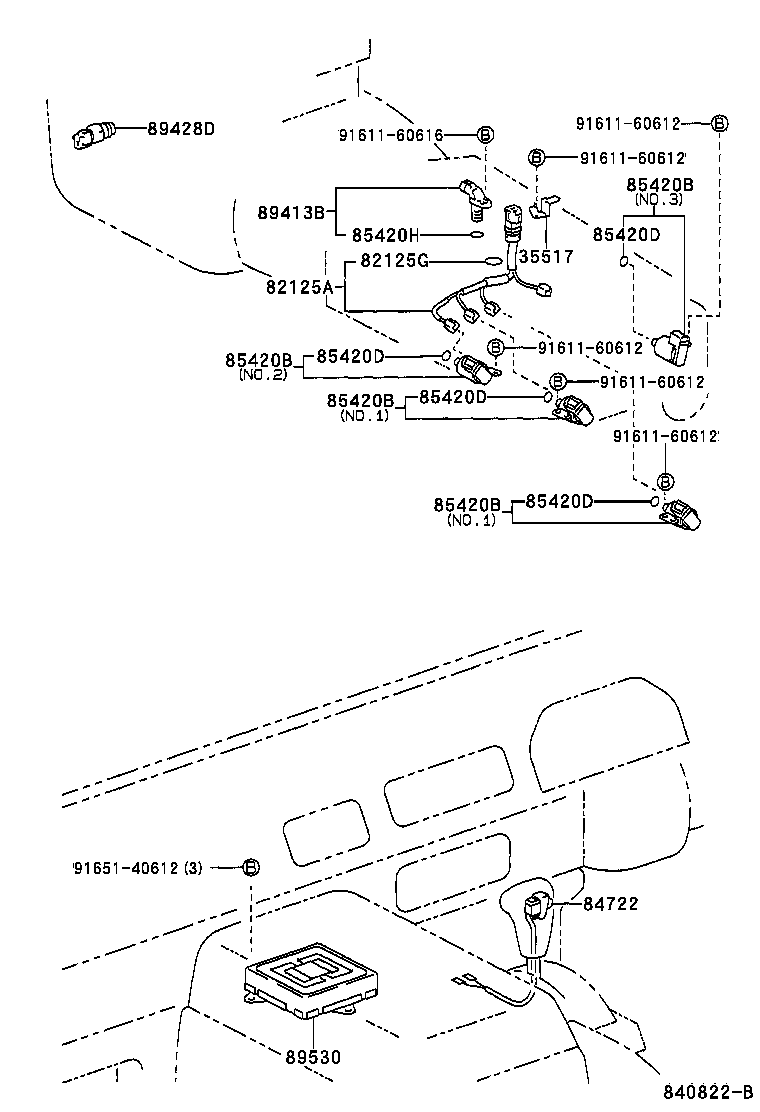

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-36011 |
BXD20 |
1 | ||
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-36010 |
BXD20 |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
BXD20 |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-65010 |
BXD20 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
BXD20 NO.1 |
2 | ||
| 85420-36030 |
BXD20 NO.3 |
1 | ||
| 85420-36020 |
BXD20 NO.2 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
BXD20 NO.1 |
2 | ||
| 85420-36030 |
BXD20 NO.3 |
1 | ||
| 85420-36020 |
BXD20 NO.2 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
BXD20 NO.1 |
2 | ||
| 85420-36030 |
BXD20 NO.3 |
1 | ||
| 85420-36020 |
BXD20 NO.2 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
BXD20 NO.1 |
2 | ||
| 85420-36030 |
BXD20 NO.3 |
1 | ||
| 85420-36020 |
BXD20 NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
BXD20 |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
BXD20 |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
BXD20 |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
BXD20 |
4 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 90301-11008 |
BXD20 |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
BXD20 |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-36030 |
BXD20 |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-65010 |
BXD20 |
1 | ||
| 89530-65020 |
BXD20 |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
