BXD20R-RRPEW (1996)

Toyota Mega Cruiser

Production Oct 1996 - Oct 2001
Engine 15BFT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

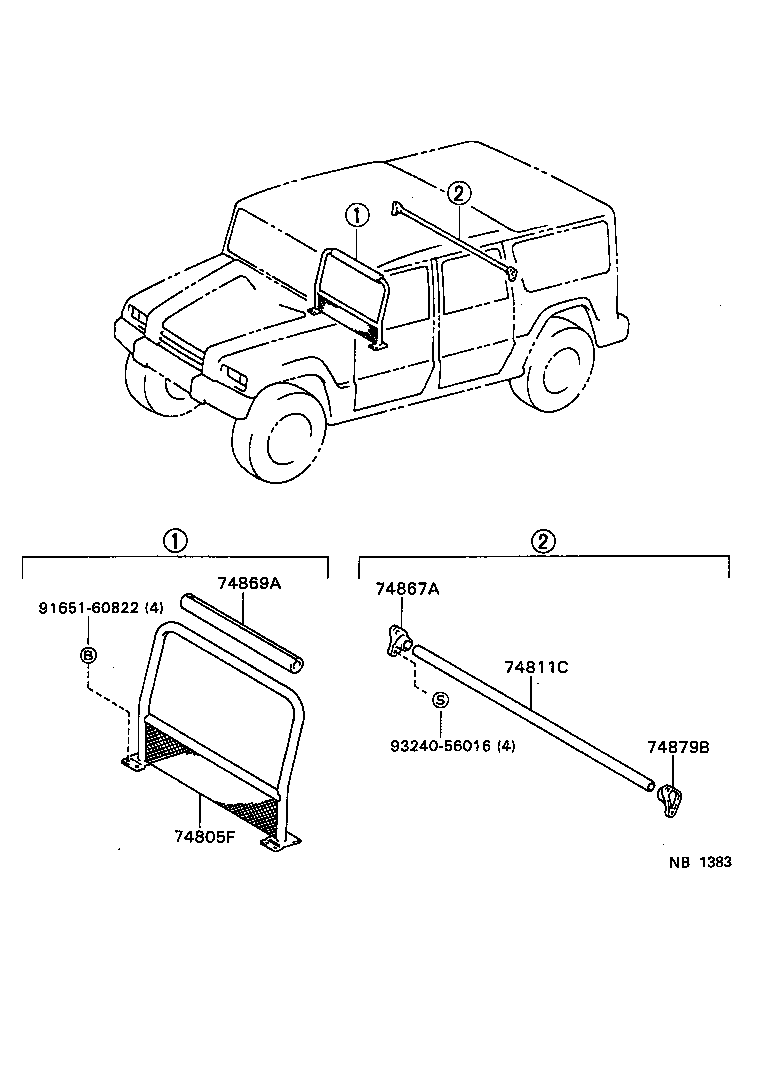

Click highlighted areas on diagram

diagram 74805F 74811C 74867A 74869A 74879B 9165160822 9324056016
Part # Description Qty Price
74805F - BAR SUB-ASSY, SEPARATOR, A
74805-65010

BXD20

 1
74811C - BAR, SEPARATOR, NO.1
74811-65010B0

BXD20..SRF

LT.BLUISH GRAY,TRIM1#

 1
74867A - BRACKET, SEPARATOR BAR, NO.4
74867-95J00B0

BXD20..SRF

BLUISH GRAY,TRIM1#

 1
74869A - PROTECTOR, SEPARATOR BAR
74869-65010

BXD20

 1
74879B - BRACKET, SEPARATOR BAR, LOWER LH
74879-95J01B0

BXD20..SRF

BLUISH GRAY,TRIM1#

 1
Common parts
91651-60822
93240-56016
