BXD20R-RRPEW (1996)

Toyota Mega Cruiser

Production Oct 1996 - Oct 2001
Engine 15BFT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

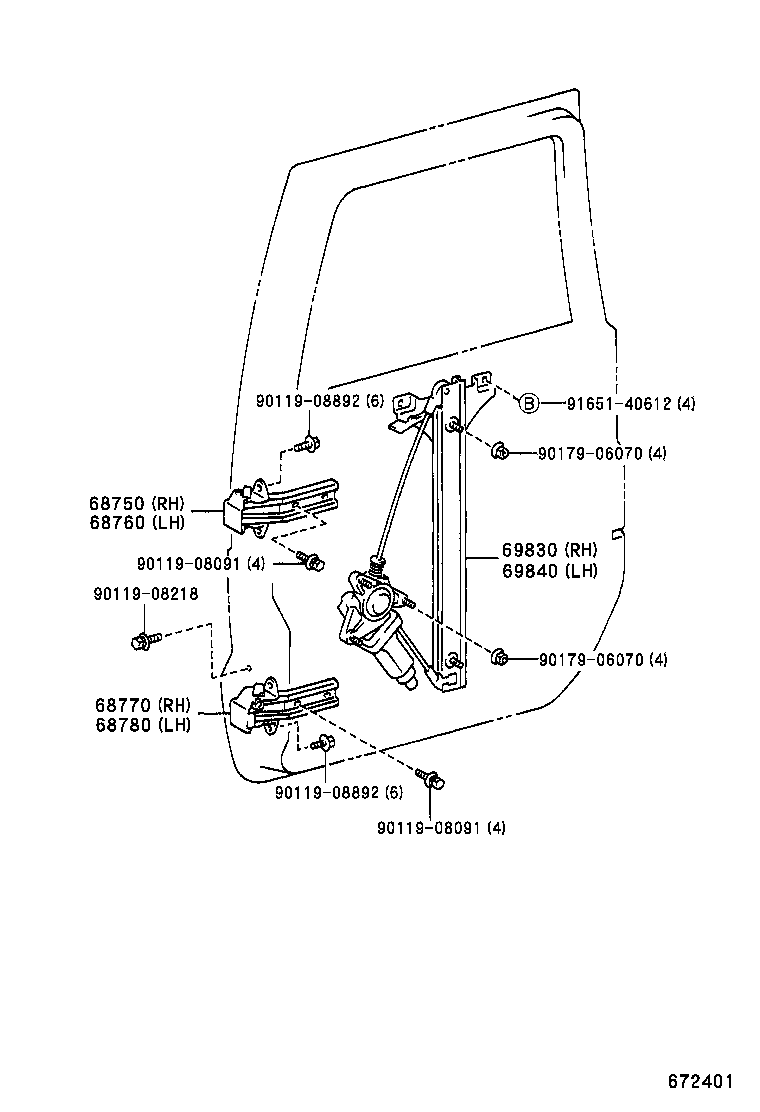

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69830 69840 9011908091 9011908091 9011908218 9011908892 9011908892 9017906070 9017906070 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-65010

BXD20

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-65010

BXD20

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-95401

BXD20

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-95402

BXD20

 1
69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH
69810-65030

BXD20

 1
69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH
69820-65020

BXD20

 1
Common parts
90119-08091
90119-08218
90119-08892
90179-06070
91651-40612
