BXD20R-RRPEW (1996)
Toyota Mega Cruiser
Production
Oct 1996
-
Oct 2001
Engine
15BFT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

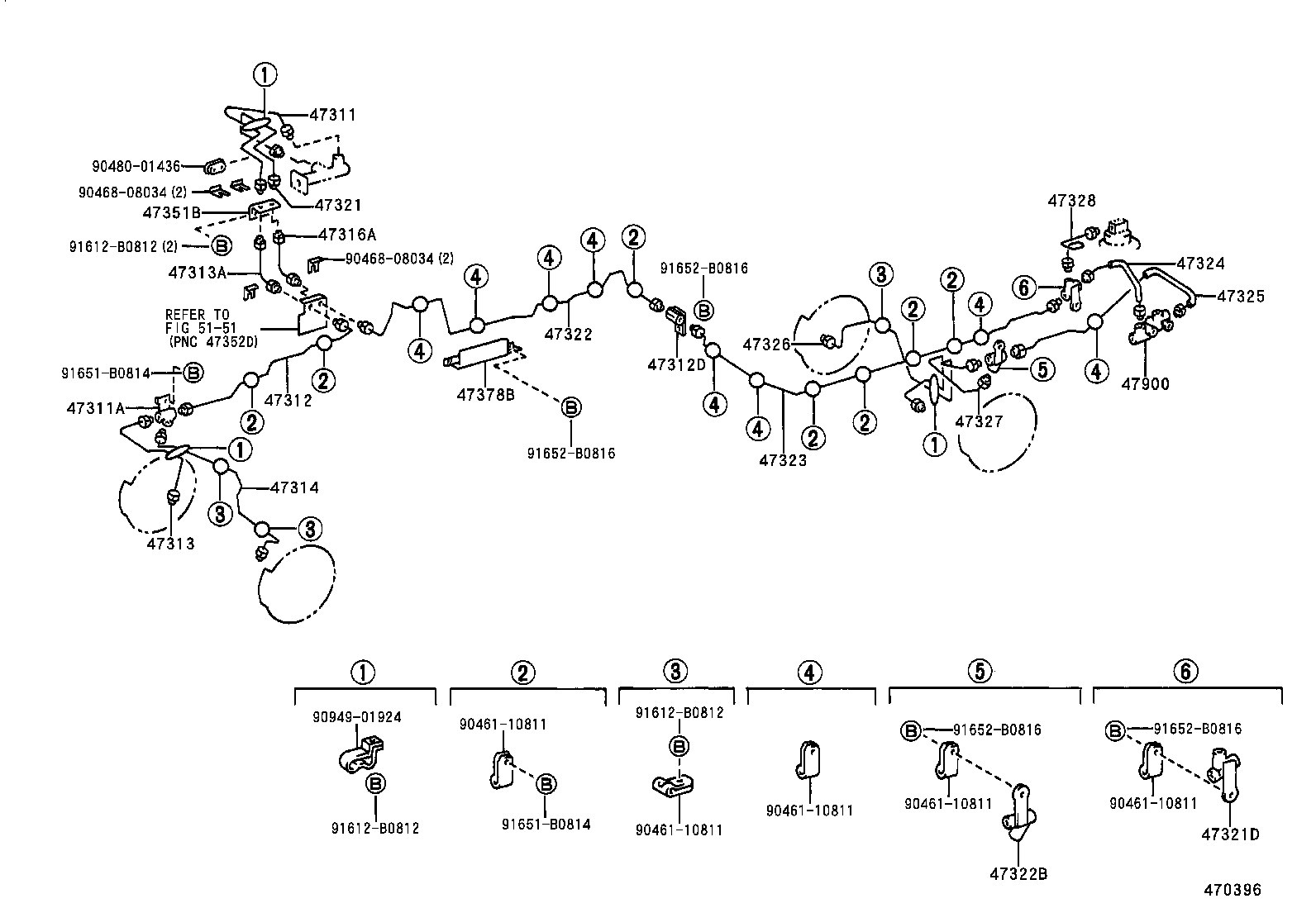

ILLUST NO. 1 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-65050 |
BXD20 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13005 |
BXD20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-65020 |
BXD20 |
1 | ||
| 47312D - WAY, 2(FOR REAR BRAKE TUBE) | ||||
| 90412-10006 |
BXD20 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-65030 |
BXD20 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-32705 |
BXD20 |
1 | ||
| 96950-32707 |
BXD20 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-65030 |
BXD20 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96950-32707 |
BXD20 |
1 | ||
| 96950-32705 |
BXD20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-65020 |
BXD20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13004 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 90904-12037 |
BXD20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-65010 |
BXD20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13003 |
BXD20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-65010 |
BXD20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47310-65010 |
BXD20 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47320-65010 |
BXD20 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-65020 |
BXD20 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-65020 |
BXD20 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-65010 |
BXD20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-65020 |
BXD20 |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 17551-58070 |
BXD20 |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-65010 |
BXD20 |
1 | ||
| Common parts | ||||
| 90461-10811 | ||||
| 90468-08034 | ||||
| 90480-01436 | ||||
| 90949-01924 | ||||
| 91612-B0812 | ||||
| 91651-B0814 | ||||
| 91652-B0816 | ||||
| Linked diagrams | ||||
| 5151 | ||||

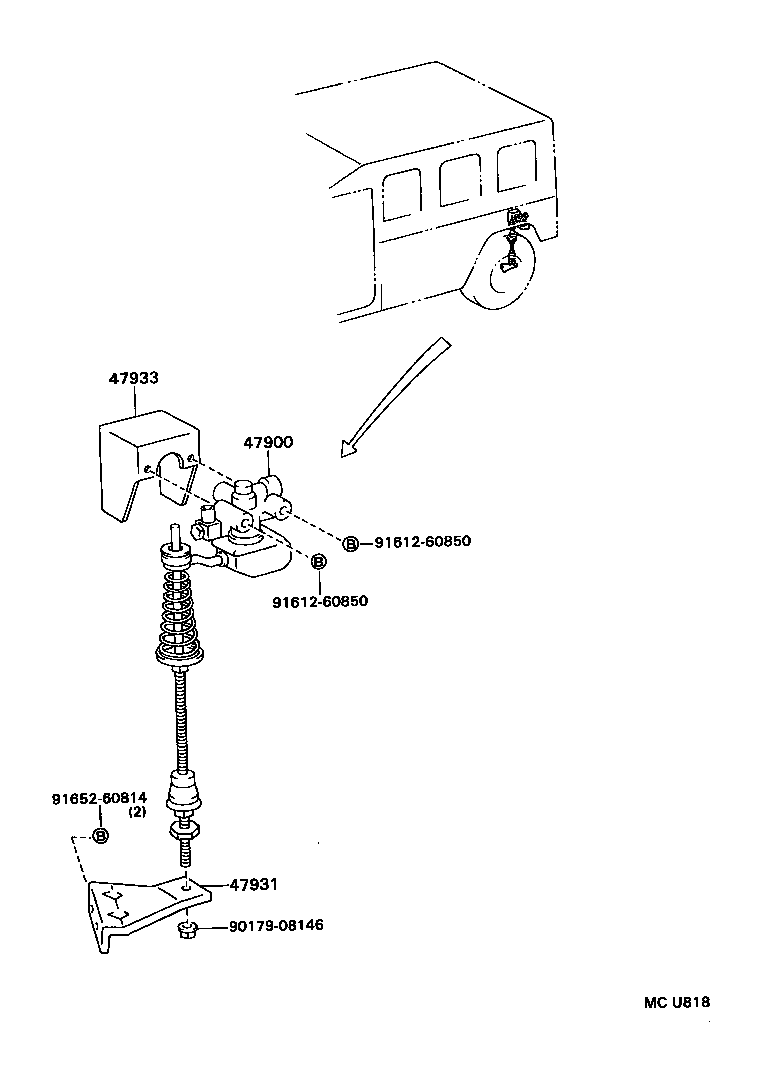

ILLUST NO. 2 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-65010 |
BXD20 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-65020 |
BXD20 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-65010 |
BXD20 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91612-60850 | ||||
| 91652-60814 | ||||
