BXD20R-RRPEW (1996)

Toyota Mega Cruiser

Production Oct 1996 - Oct 2001
Engine 15BFT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

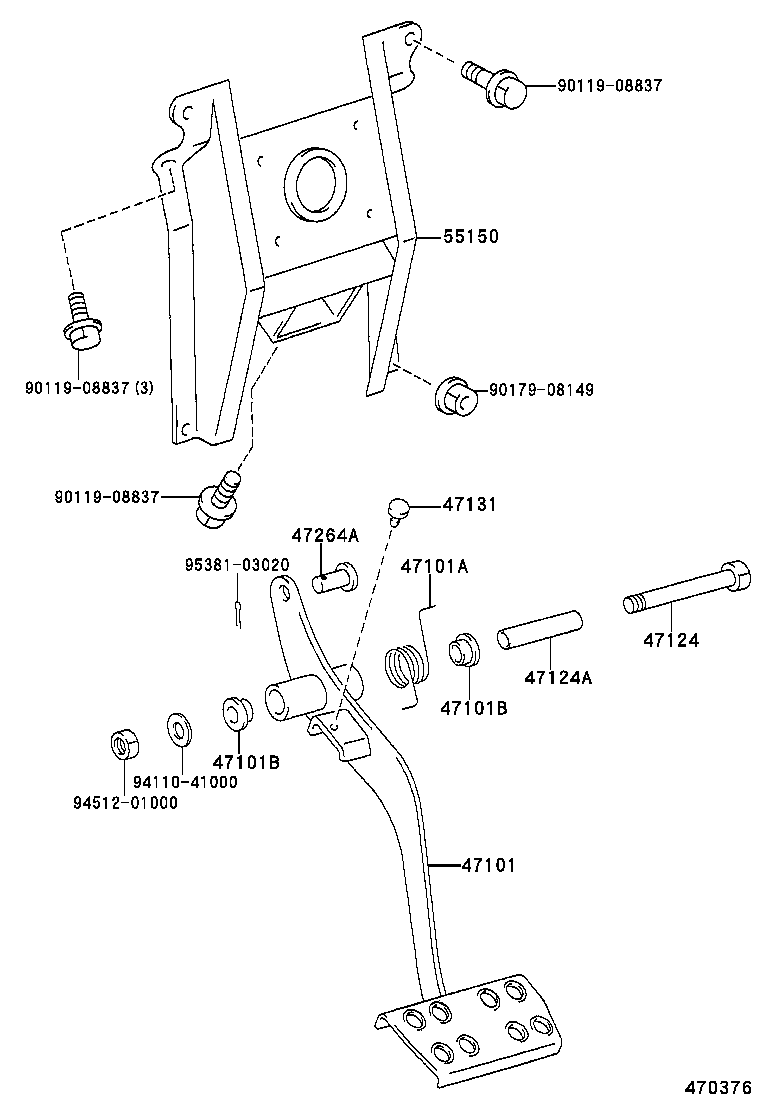

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47124 47124A 47131 47264A 55150 9011908837 9011908837 9011908837 9017908149 9411041000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-65010

BXD20

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35322

BXD20

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BXD20

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BXD20

 2
47124 - SHAFT, BRAKE PEDAL
90101-10150

BXD20

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10116

BXD20

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

BXD20

 1
47264A - PIN(FOR PUSH ROD)
90240-10015

BXD20

 1
55150 - BRACKET ASSY, PEDAL
55150-65010

BXD20

 1
Common parts
90119-08837
90179-08149
94110-41000
94512-01000
95381-03020
