BXD20R-RRPEW (1996)
Toyota Mega Cruiser
Production
Oct 1996
-
Oct 2001
Engine
15BFT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

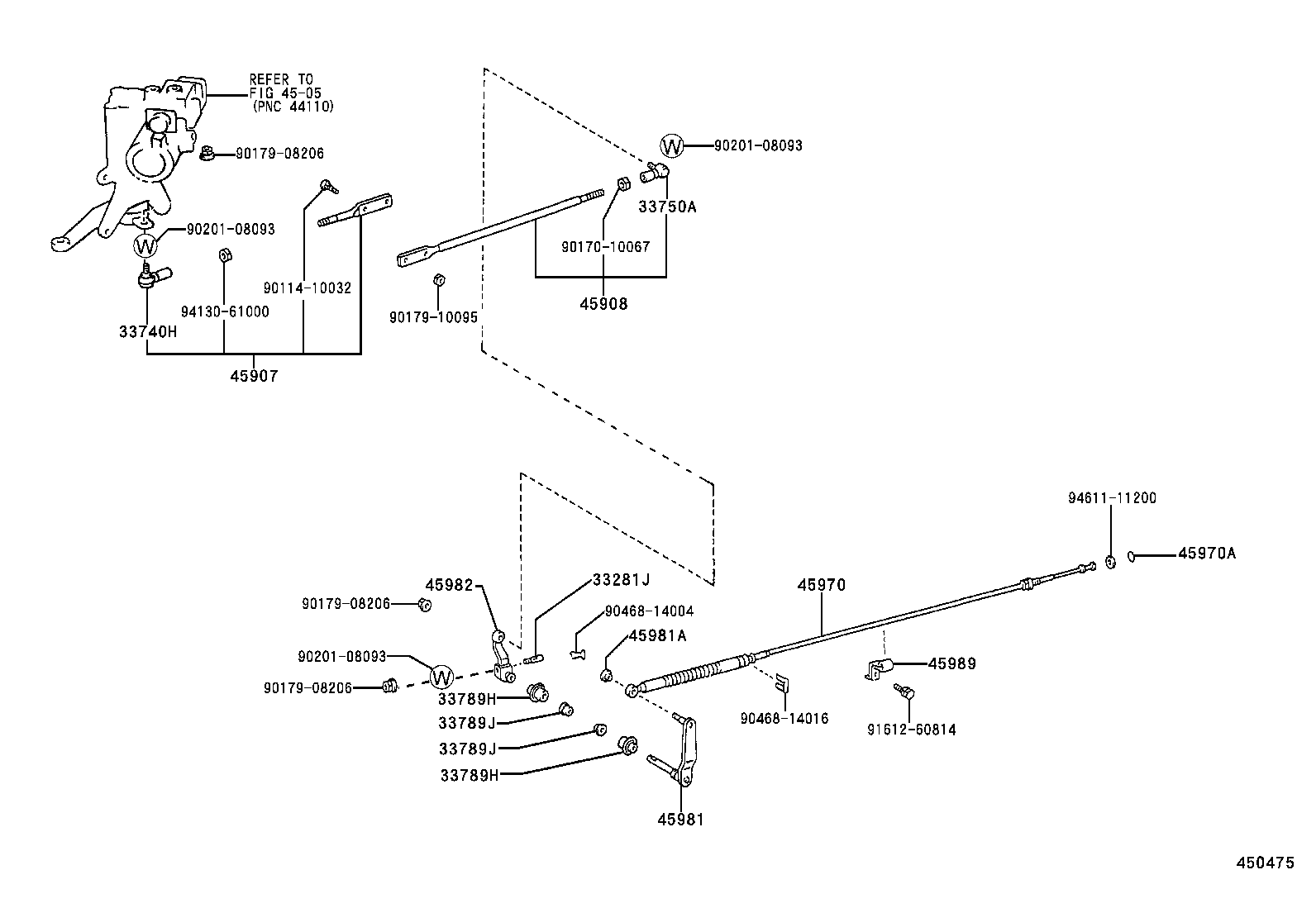

ILLUST NO. 1 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281J - PIN,LEVER LOCK | ||||
| 33281-65010 |
BXD20 |
1 | ||
| 33740H - END ASSY, CONNECTING ROD, NO.1 | ||||
| 33740-65010 |
BXD20 |
1 | ||
| 33750A - END ASSY, CONNECTING ROD, NO.2 | ||||
| 33750-65010 |
BXD20 |
1 | ||
| 33789H - COVER, CROSS SHAFT DUST, NO.3 | ||||
| 33789-65010 |
BXD20 |
2 | ||
| 33789H - COVER, CROSS SHAFT DUST, NO.3 | ||||
| 33789-65010 |
BXD20 |
2 | ||
| 33789J - BUSH(FOR COVER, CROSS SHAFT DUST) | ||||
| 90386-15110 |
BXD20 |
2 | ||
| 33789J - BUSH(FOR COVER, CROSS SHAFT DUST) | ||||
| 90386-15110 |
BXD20 |
2 | ||
| 45907 - SHAFT SUB-ASSY, REAR STEERING GEAR CONNECTING, NO.1 | ||||
| 45907-65010 |
BXD20 |
1 | ||
| 45908 - SHAFT SUB-ASSY, REAR STEERING GEAR CONNECTING, NO.2 | ||||
| 45908-65010 |
BXD20 |
1 | ||
| 45970 - CABLE ASSY, REAR STEERING CONTROL, RH | ||||
| 45970-65010 |
BXD20 |
1 | ||
| 45970A - RING, O(FOR REAR STEERING CONTROL CABLE ASSY, RH) | ||||
| 96721-19012 |
BXD20 |
1 | ||
| 45981 - LEVER, REAR STEERING CONTROL, NO,1 | ||||
| 45981-65010 |
BXD20 |
1 | ||
| 45981A - BUSH(FOR REAR STEERING CONTROL LEVER NO.1) | ||||
| 90386-07018 |
BXD20 |
1 | ||
| 45982 - LEVER, REAR STEERING CONTROL, NO.2 | ||||
| 45982-65010 |
BXD20 |
1 | ||
| 45989 - CLANP, REAR STEERING CONNECTIMG SHAFT BOOT, NO.1 | ||||
| 45989-65010 |
BXD20 |
2 | ||
| Common parts | ||||
| 90114-10032 | ||||
| 90170-10067 | ||||
| 90179-08206 | ||||
| 90179-10095 | ||||
| 90201-08093 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91612-60814 | ||||
| 94130-61000 | ||||
| 94611-11200 | ||||
| Linked diagrams | ||||
| 4505 | ||||

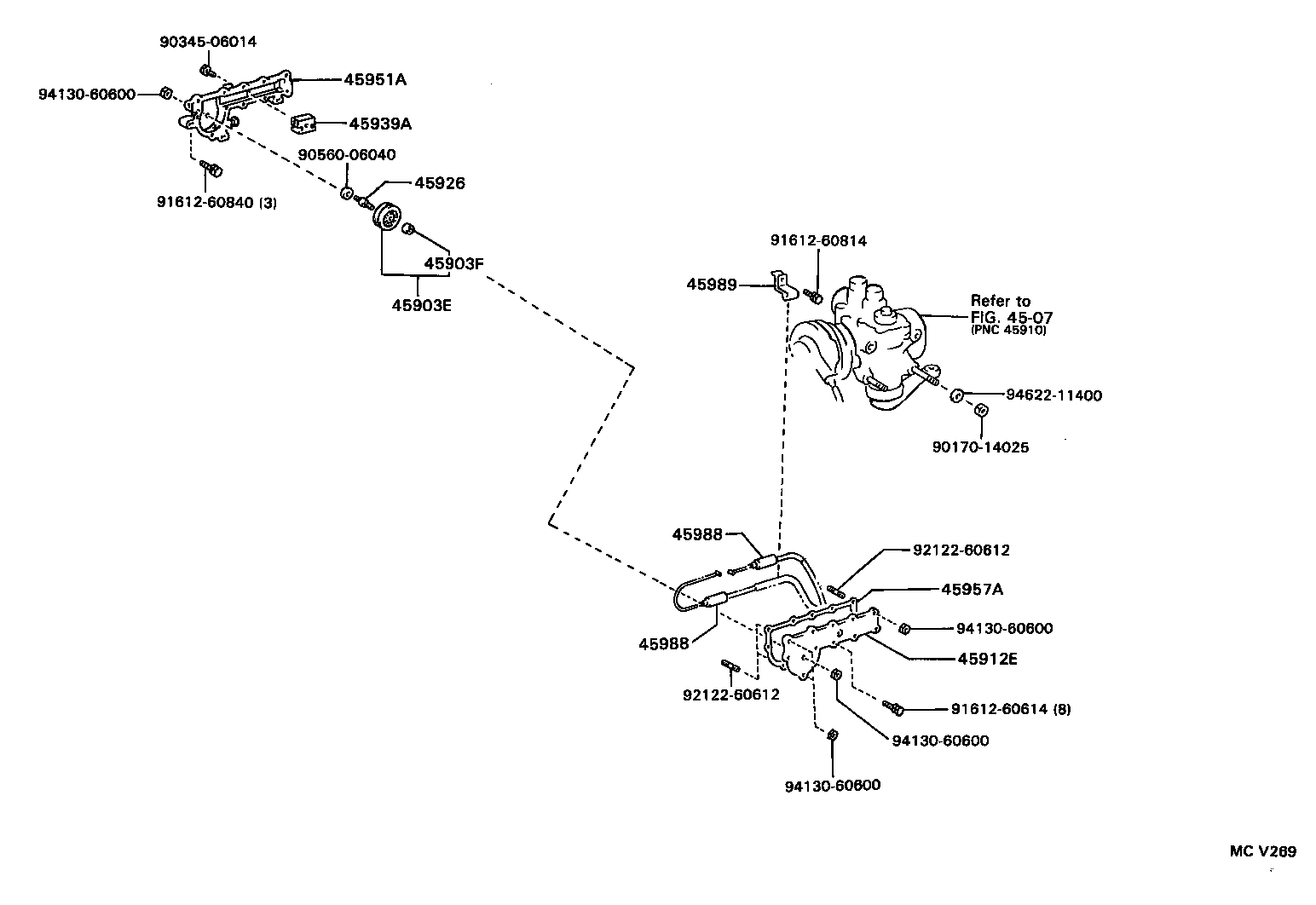

ILLUST NO. 2 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45903E - BEARING, REAR STEERING ANGLE RATIO CONVERTER PIVOT, NO. | ||||
| 45903-27030 |
BXD20 |
1 | ||
| 45903F - BEARING, REAR STEERING ANGLE RATIO CONVERTER PIVOT, NO. | ||||
| 90364-09073 |
BXD20 |
1 | ||
| 45912E - COVER, REAR STEERING GEAR | ||||
| 45912-65010 |
BXD20 |
1 | ||
| 45926 - PIVOT, REAR STEERING | ||||
| 45926-65010 |
BXD20 |
1 | ||
| 45939A - CAM, REAR STEERING WORM CONTROL | ||||
| 45939-65010 |
BXD20 |
1 | ||
| 45951A - HOUSING, REAR STEERING CONTROL CAM | ||||
| 45951-65010 |
BXD20 |
1 | ||
| 45957A - SEAL, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45957-65010 |
BXD20 |
1 | ||
| 45988 - BOOT, REAR STEERING CONNECTING SHAFT, NO.2 | ||||
| 45988-65010 |
BXD20 |
2 | ||
| 45988 - BOOT, REAR STEERING CONNECTING SHAFT, NO.2 | ||||
| 45988-65010 |
BXD20 |
2 | ||
| 45989 - CLANP, REAR STEERING CONNECTIMG SHAFT BOOT, NO.1 | ||||
| 45989-65010 |
BXD20 |
2 | ||
| Common parts | ||||
| 90170-14025 | ||||
| 90345-06014 | ||||
| 90560-06040 | ||||
| 91612-60614 | ||||
| 91612-60814 | ||||
| 91612-60840 | ||||
| 92122-60612 | ||||
| 94130-60600 | ||||
| 94622-11400 | ||||
| Linked diagrams | ||||
| 4507 | ||||
