BXD20R-RRPEW (1996)
Toyota Mega Cruiser
Production
Oct 1996
-
Oct 2001
Engine
15BFT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

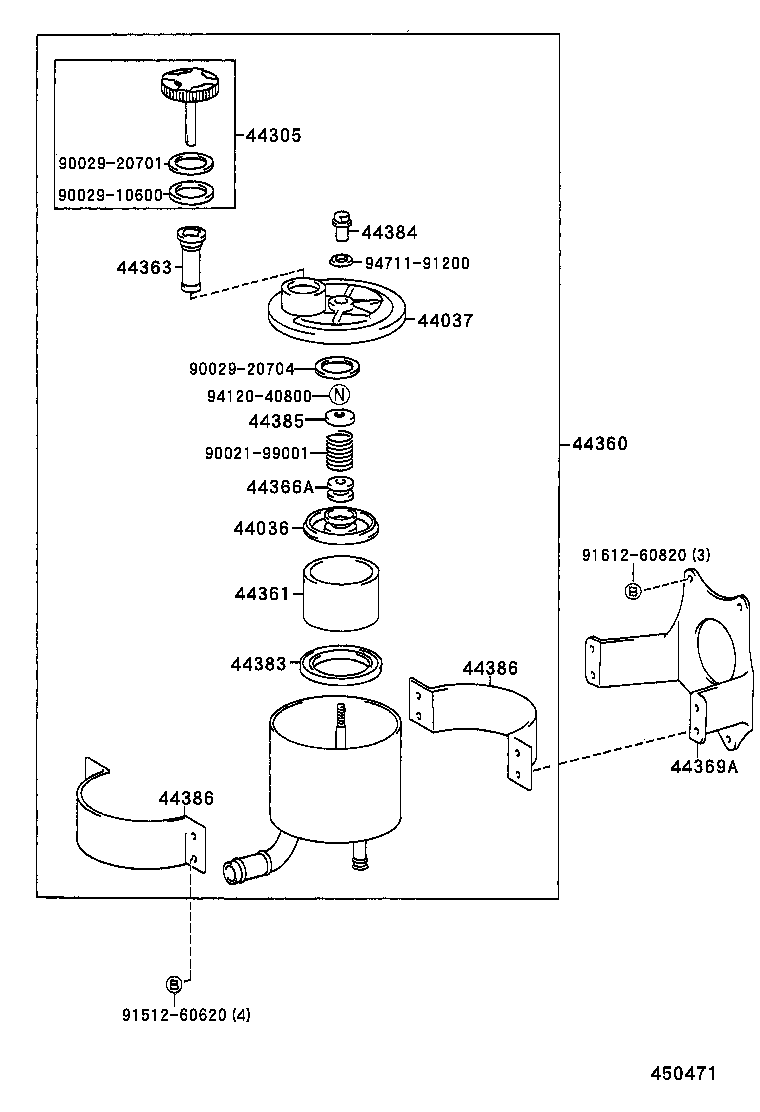

ILLUST NO. 2 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44036 - COVER SUB-ASSY(FOR VANE PUMP OIL FILTER) | ||||
| 44036-36020 |
BXD20 |
1 | ||
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36020 |
BXD20 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-36020 |
BXD20 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-65010 |
BXD20 |
1 | ||
| 44361 - FILTER, OIL(FOR VANE PUMP) | ||||
| 44361-37010 |
BXD20 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BXD20 |
1 | ||
| 44366A - SEAT, PUMP PULLEY | ||||
| 44366-37010 |
BXD20 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-65010 |
BXD20 |
1 | ||
| 44383 - SEAL, OIL(FOR VANE PUMP OIL FILTER) | ||||
| 44383-37010 |
BXD20 |
1 | ||
| 44384 - NUT(FOR OIL RESERVOIR COVER) | ||||
| 44384-37010 |
BXD20 |
1 | ||
| 44385 - SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 44385-37010 |
BXD20 |
1 | ||
| 44386 - BRACKET(FOR VANE PUMP OIL RESERVOIR) | ||||
| 44386-37010 |
BXD20 |
2 | ||
| 44386 - BRACKET(FOR VANE PUMP OIL RESERVOIR) | ||||
| 44386-37010 |
BXD20 |
2 | ||
| Common parts | ||||
| 90021-99001 | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 90029-20704 | ||||
| 91512-60620 | ||||
| 91612-60820 | ||||
| 94120-40800 | ||||
| 94711-91200 | ||||

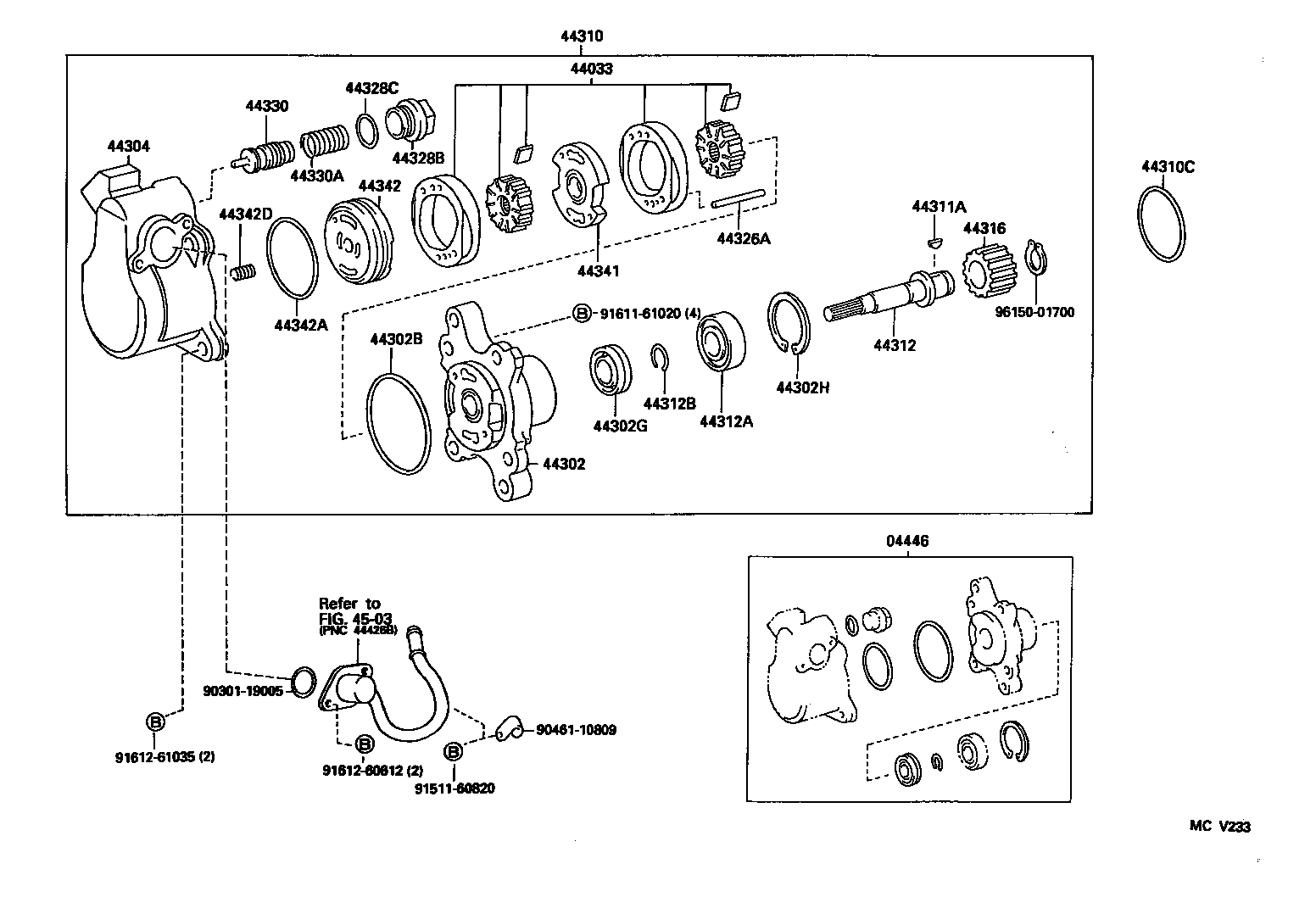

ILLUST NO. 1 OF 2(9610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-65010 |
BXD20 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36050 |
BXD20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36220 |
BXD20 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20043 |
BXD20 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BXD20 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
BXD20 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36220 |
BXD20 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-65010 |
BXD20 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BXD20 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BXD20 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36120 |
BXD20 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BXD20 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BXD20 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36020 |
BXD20 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-24010 |
BXD20 L=45.8 |
2 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BXD20 |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 90029-20042 |
BXD20 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36240 |
BXD20 ONE GROOVE |
1 | ||
| 44330-36250 |
BXD20 NO GROOVE |
1 | ||
| 44330-36230 |
BXD20 TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BXD20 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-24020 |
BXD20 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-36050 |
BXD20 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-55007 |
BXD20 |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60001 |
BXD20 |
1 | ||
| Common parts | ||||
| 90301-19005 | ||||
| 90461-10809 | ||||
| 91511-60820 | ||||
| 91611-61020 | ||||
| 91612-60612 | ||||
| 91612-61035 | ||||
| 96150-01700 | ||||
| Linked diagrams | ||||
| 4503 | ||||
