BXD20R-RRPEW (1996)
Toyota Mega Cruiser
Production
Oct 1996
-
Oct 2001
Engine
15BFT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9701-9801)

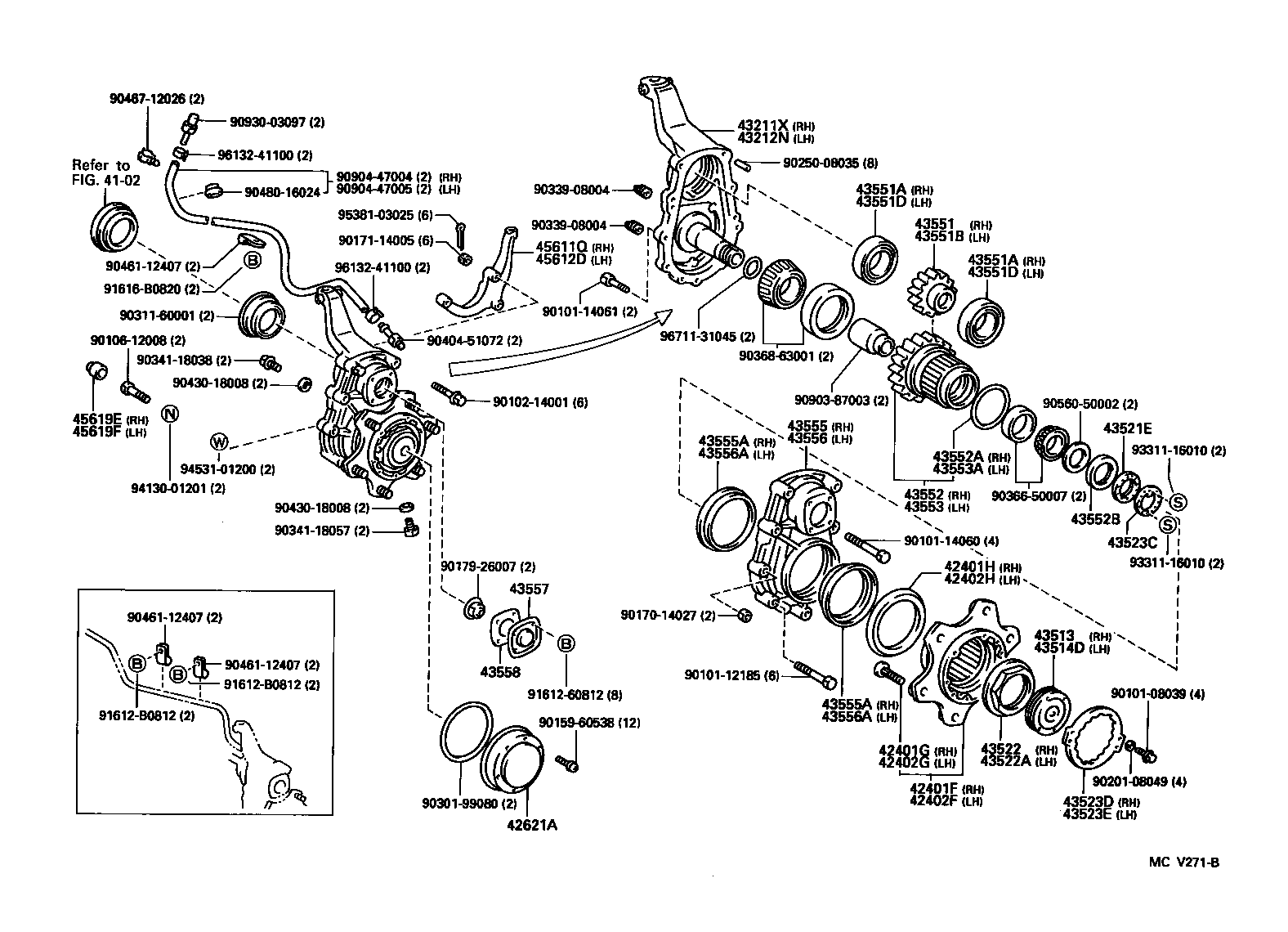

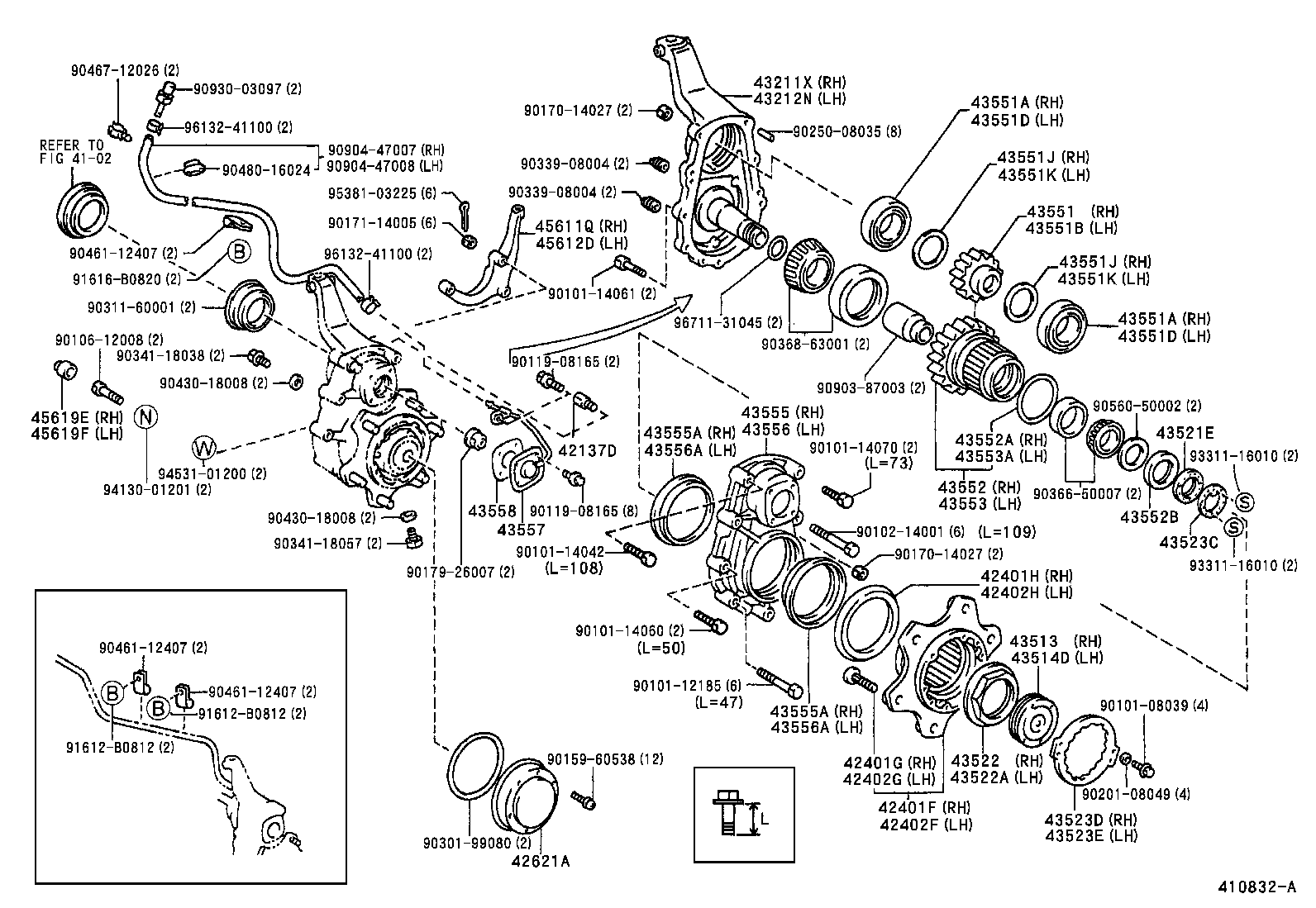

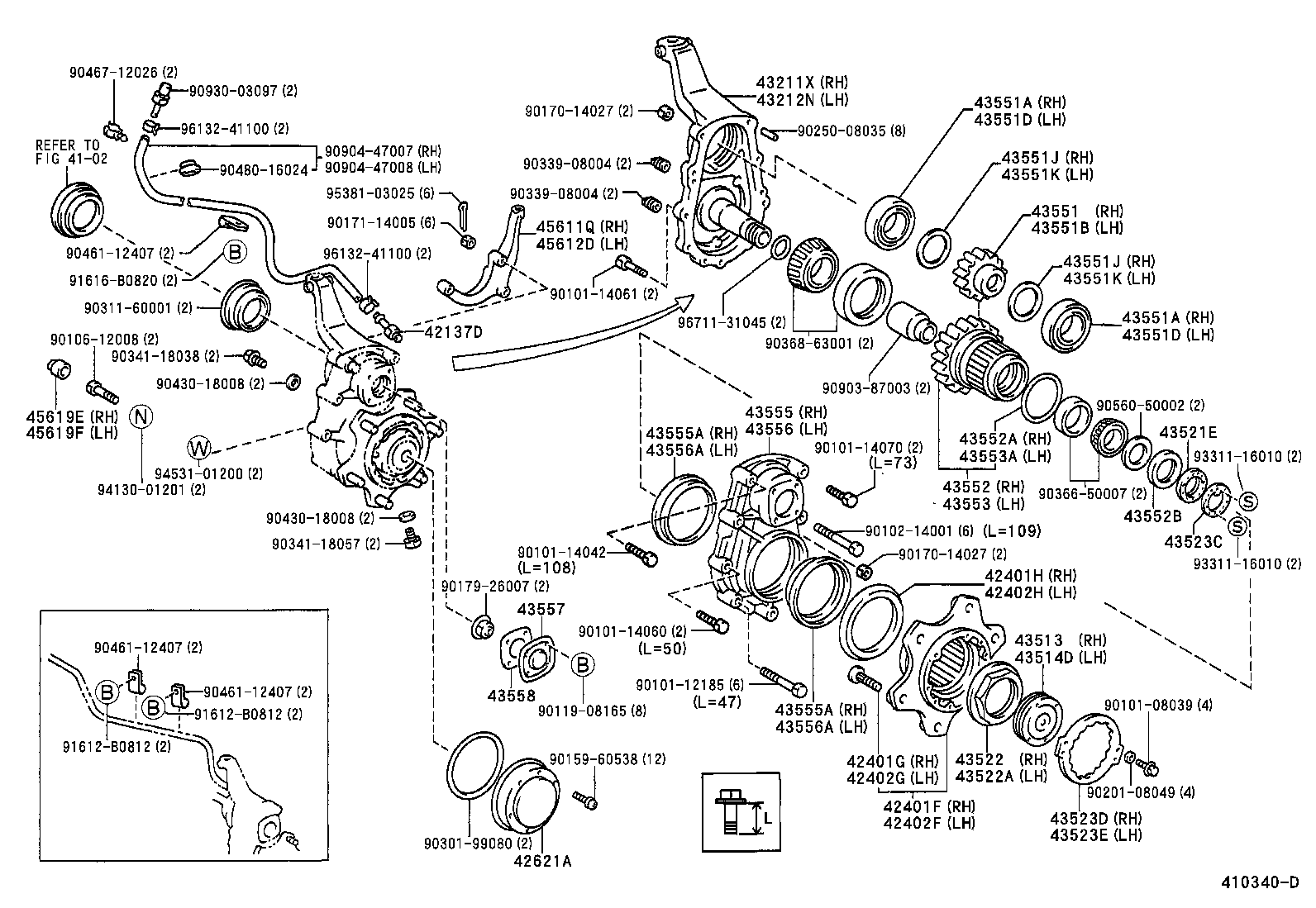

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42137D - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-65010 |
BXD20 |
2 | ||
| 90404-51072 |
BXD20 |
2 | ||
| 42401F - HUB SUB-ASSY, REAR AXLE, RH | ||||
| 42401-65010 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43501-65010 |
BXD20 |
1 | ||
| 42401G - BOLT, HUB(FOR REAR AXLE HUB RH) | ||||
| 90942-02074 |
BXD20 |
6 | ||
| 42401H - SEAL, DUST(FOR REAR AXLE HUB RH) | ||||
| 90304-99005 |
BXD20 |
1 | ||
| 42402F - HUB SUB-ASSY, REAR AXLE, LH | ||||
| 43502-65010 |
BXD20 |
1 | ||
| 42402-65010 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 42402G - BOLT, HUB(FOR REAR AXLE HUB LH) | ||||
| 90942-02075 |
BXD20 |
6 | ||
| 42402H - SEAL, DUST(FOR REAR AXLE HUB LH) | ||||
| 90304-99005 |
BXD20 |
1 | ||
| 42621A - CAP, WHEEL(FOR REAR AXLE) | ||||
| 42621-65010 |
BXD20 |
2 | ||
| 43211X - KNUCKLE, REAR STEERING, RH | ||||
| 43211-36170 |
BXD20 |
1 | ||
| 43211-65030 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43211-65050 |
BXD20 |
1 | ||
| 43211-65060 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43212N - KNUCKLE, REAR STEERING, LH | ||||
| 43212-36140 |
BXD20 |
1 | ||
| 43212-65060 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43212-65050 |
BXD20 |
1 | ||
| 43212-65030 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43513 - CAP, WHEEL BEARING, RH(FOR REAR AXLE) | ||||
| 43505-65010 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43513-65020 |
BXD20 |
1 | ||
| 43514D - CAP, WHEEL BEARING, LH(FOR REAR AXLE) | ||||
| 43506-65010 |
BXD20 W(TIRE INFLATION SYSTEM) |
1 | ||
| 43514-65020 |
BXD20 |
1 | ||
| 43521E - NUT, REAR AXLE BEARING LOCK | ||||
| 43521-65010 |
BXD20 |
2 | ||
| 43522 - NUT, HUB SET(FOR REAR AXLE RH) | ||||
| 43522-65010 |
BXD20 |
1 | ||
| 43522A - NUT, HUB SET(FOR REAR AXLE LH) | ||||
| 43522-65020 |
BXD20 |
1 | ||
| 43523C - WASHER, HUB SET CLAW(FOR REAR AXLE) | ||||
| 43523-65010 |
BXD20 |
2 | ||
| 43523D - WASHER, HUB SET CLAW(FOR REAR AXLE RH) | ||||
| 43523-65020 |
BXD20 |
1 | ||
| 43523E - WASHER, HUB SET CLAW(FOR REAR AXLE LH) | ||||
| 43523-65020 |
BXD20 |
1 | ||
| 43551 - GEAR, REAR HUB REDUCTION DRIVE, RH | ||||
| 43551-65010 |
BXD20 |
1 | ||
| 43551-65020 |
BXD20 |
1 | ||
| 43551A - BEARING, ROLLER(FOR REAR HUB REDUCTION RH) | ||||
| 90365-50001 |
BXD20 |
2 | ||
| 90366-55051 |
BXD20 |
2 | ||
| 43551A - BEARING, ROLLER(FOR REAR HUB REDUCTION RH) | ||||
| 90365-50001 |
BXD20 |
2 | ||
| 90366-55051 |
BXD20 |
2 | ||
| 43551B - GEAR, REAR HUB REDUCTION DRIVE, LH | ||||
| 43551-65030 |
BXD20 |
1 | ||
| 43551-65010 |
BXD20 |
1 | ||
| 43551D - BEARING, ROLLER(FOR REAR HUB REDUCTION LH) | ||||
| 90366-55051 |
BXD20 |
2 | ||
| 90365-50001 |
BXD20 |
2 | ||
| 43551D - BEARING, ROLLER(FOR REAR HUB REDUCTION LH) | ||||
| 90366-55051 |
BXD20 |
2 | ||
| 90365-50001 |
BXD20 |
2 | ||
| 43551J - SHIM(FOR REAR HUB REDUCTION DRIVE GEAR RH) | ||||
| 43524-65020 |
BXD20 T=1.00 |
1 | ||
| 43524-65050 |
BXD20 T=0.10 |
1 | ||
| 43524-65010 |
BXD20 T=1.25 |
1 | ||
| 43524-65030 |
BXD20 T=0.20 |
1 | ||
| 43524-65040 |
BXD20 T=0.15 |
1 | ||
| 43551J - SHIM(FOR REAR HUB REDUCTION DRIVE GEAR RH) | ||||
| 43524-65020 |
BXD20 T=1.00 |
1 | ||
| 43524-65050 |
BXD20 T=0.10 |
1 | ||
| 43524-65010 |
BXD20 T=1.25 |
1 | ||
| 43524-65030 |
BXD20 T=0.20 |
1 | ||
| 43524-65040 |
BXD20 T=0.15 |
1 | ||
| 43551K - SHIM(FOR REAR HUB REDUCTION DRIVE GEAR LH) | ||||
| 43524-65010 |
BXD20 T=1.25 |
1 | ||
| 43524-65050 |
BXD20 T=0.10 |
1 | ||
| 43524-65020 |
BXD20 T=1.00 |
1 | ||
| 43524-65030 |
BXD20 T=0.20 |
1 | ||
| 43524-65040 |
BXD20 T=0.15 |
1 | ||
| 43551K - SHIM(FOR REAR HUB REDUCTION DRIVE GEAR LH) | ||||
| 43524-65010 |
BXD20 T=1.25 |
1 | ||
| 43524-65050 |
BXD20 T=0.10 |
1 | ||
| 43524-65020 |
BXD20 T=1.00 |
1 | ||
| 43524-65030 |
BXD20 T=0.20 |
1 | ||
| 43524-65040 |
BXD20 T=0.15 |
1 | ||
| 43552 - GEAR, REAR HUB REDUCTION DRIVEN, RH | ||||
| 43552-65010 |
BXD20 |
1 | ||
| 43552-65020 |
BXD20 |
1 | ||
| 43552A - RING, O(FOR REAR HUB REDUCTION DRIVE GEAR RH) | ||||
| 90301-94003 |
BXD20 |
1 | ||
| 43552B - SEAL, OIL(FOR REAR HUB REDUCTION DRIVEN GEAR) | ||||
| 90311-75010 |
BXD20 |
2 | ||
| 43553 - GEAR, REAR HUB REDUCTION DRIVEN, LH | ||||
| 43553-65010 |
BXD20 |
1 | ||
| 43553-65020 |
BXD20 |
1 | ||
| 43553A - RING, O(FOR REAR HUB REDUCTION DRIVEN GEAR LH) | ||||
| 90301-94003 |
BXD20 |
1 | ||
| 43555 - COVER, REAR HUB REDUCTION GEAR, RH | ||||
| 43555-65010 |
BXD20 |
1 | ||
| 43555-65020 |
BXD20 |
1 | ||
| 43555A - SEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER RH) | ||||
| 90311-99008 |
BXD20 OUTER |
1 | ||
| 90311-99007 |
BXD20 INNER |
1 | ||
| 43555A - SEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER RH) | ||||
| 90311-99008 |
BXD20 OUTER |
1 | ||
| 90311-99007 |
BXD20 INNER |
1 | ||
| 43556 - COVER, REAR HUB REDUCTION GEAR, LH | ||||
| 43556-65020 |
BXD20 |
1 | ||
| 43556-65010 |
BXD20 |
1 | ||
| 43556A - SEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER LH) | ||||
| 90311-99008 |
BXD20 OUTER |
1 | ||
| 90311-99007 |
BXD20 INNER |
1 | ||
| 43556A - SEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER LH) | ||||
| 90311-99008 |
BXD20 OUTER |
1 | ||
| 90311-99007 |
BXD20 INNER |
1 | ||
| 43557 - COVER, REAR HUB REDUCTION DRIVE SHAFT | ||||
| 42104-65020 |
BXD20 LH |
1 | ||
| 42104-65010 |
BXD20 RH |
1 | ||
| 43557-65010 |
BXD20 |
2 | ||
| 43558 - GASKET, REAR HUB REDUCTION DRIVE SHAFT END | ||||
| 43558-65010 |
BXD20 |
2 | ||
| 45611Q - ARM, REAR STEERING KNUCKLE, RH | ||||
| 45611-65030 |
BXD20 |
1 | ||
| 45612D - ARM, REAR STEERING KNUCKLE, LH | ||||
| 45612-65030 |
BXD20 |
1 | ||
| 45619E - COVER, KNUCKLE STOPPER, REAR RH | ||||
| 45619-36010 |
BXD20 |
1 | ||
| 45619F - COVER, KNUCKLE STOPPER, REAR LH | ||||
| 45619-36010 |
BXD20 |
1 | ||
| Common parts | ||||
| 90101-08039 | ||||
| 90101-12185 | ||||
| 90101-14042 | ||||
| 90101-14060 | ||||
| 90101-14061 | ||||
| 90101-14070 | ||||
| 90102-14001 | ||||
| 90106-12008 | ||||
| 90119-08165 | ||||
| 90159-60538 | ||||
| 90170-14027 | ||||
| 90171-14005 | ||||
| 90179-26007 | ||||
| 90201-08049 | ||||
| 90250-08035 | ||||
| 90301-99080 | ||||
| 90311-60001 | ||||
| 90339-08004 | ||||
| 90341-18038 | ||||
| 90341-18057 | ||||
| 90366-50007 | ||||
| 90368-63001 | ||||
| 90430-18008 | ||||
| 90461-12407 | ||||
| 90467-12026 | ||||
| 90480-16024 | ||||
| 90560-50002 | ||||
| 90903-87003 | ||||
| 90904-47007 | ||||
| 90904-47008 | ||||
| 90930-03097 | ||||
| 91612-B0812 | ||||
| 91616-B0820 | ||||
| 93311-16010 | ||||
| 94130-01201 | ||||
| 94531-01200 | ||||
| 95381-03025 | ||||
| 96132-41100 | ||||
| 96711-31045 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(9701-9801)

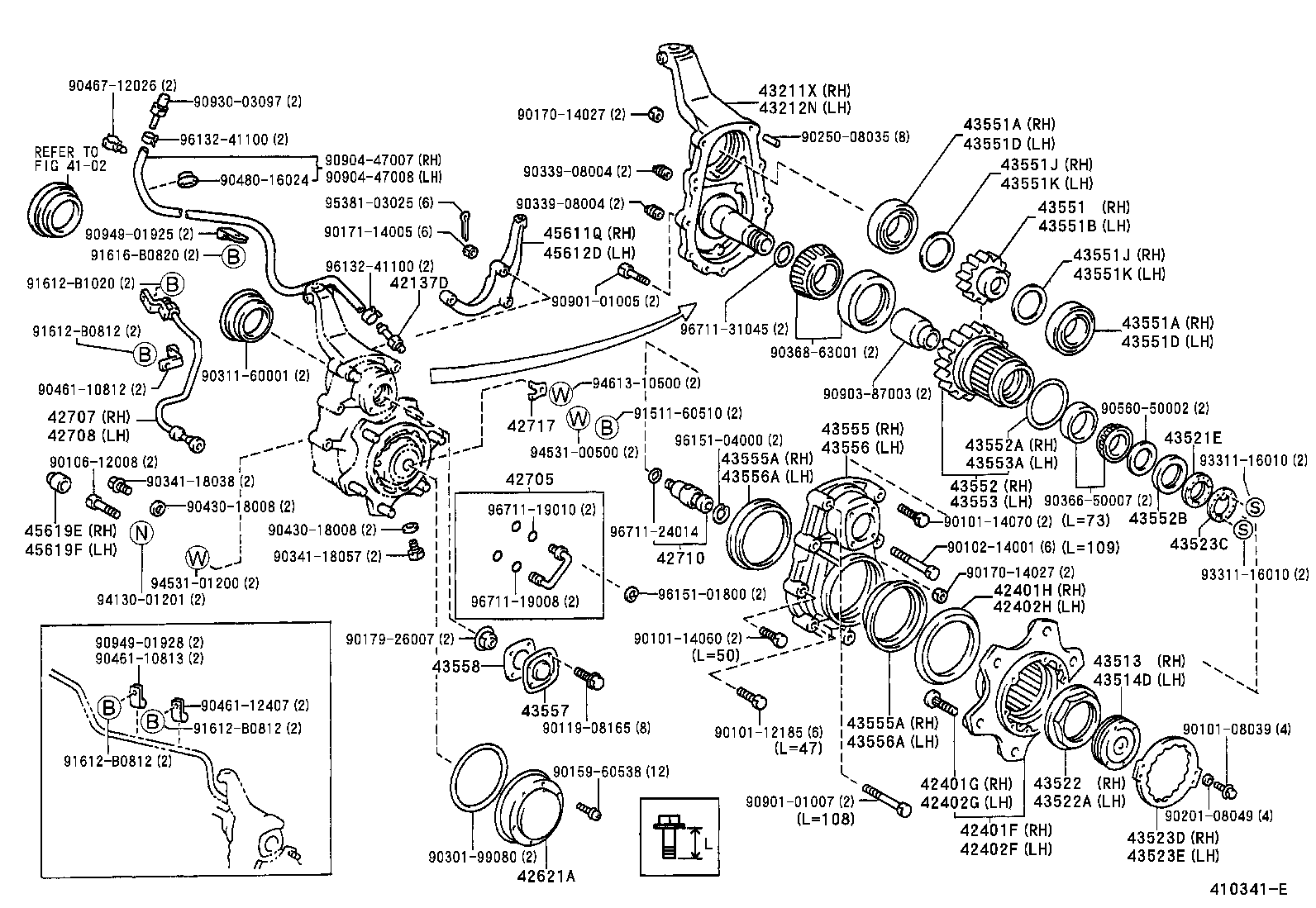

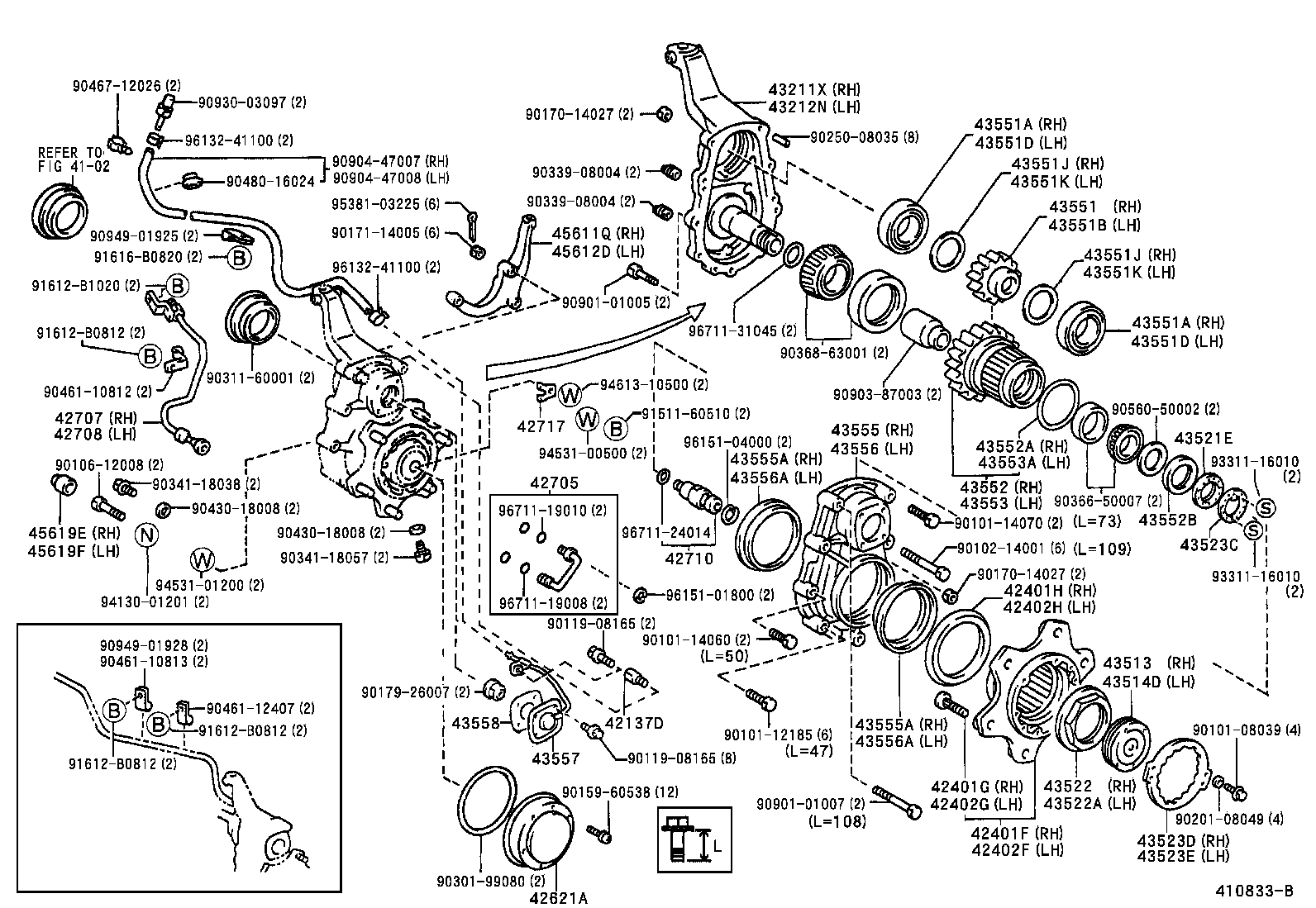

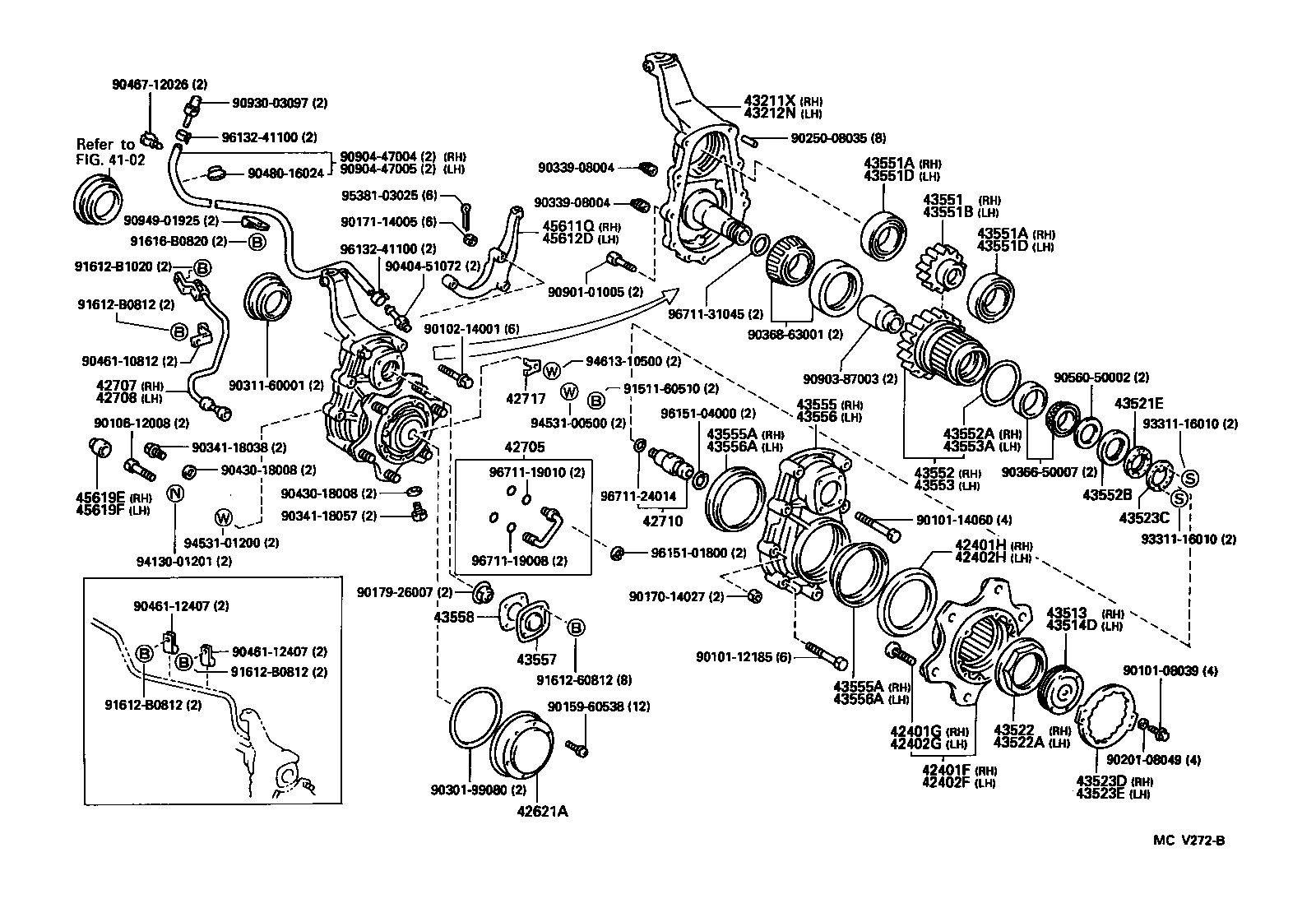

Click highlighted areas on diagram
W(TIRE INFLATION SYSTEM)
