BXD20R-RRPEW (1996)

Toyota Mega Cruiser

Production Oct 1996 - Oct 2001
Engine 15BFT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

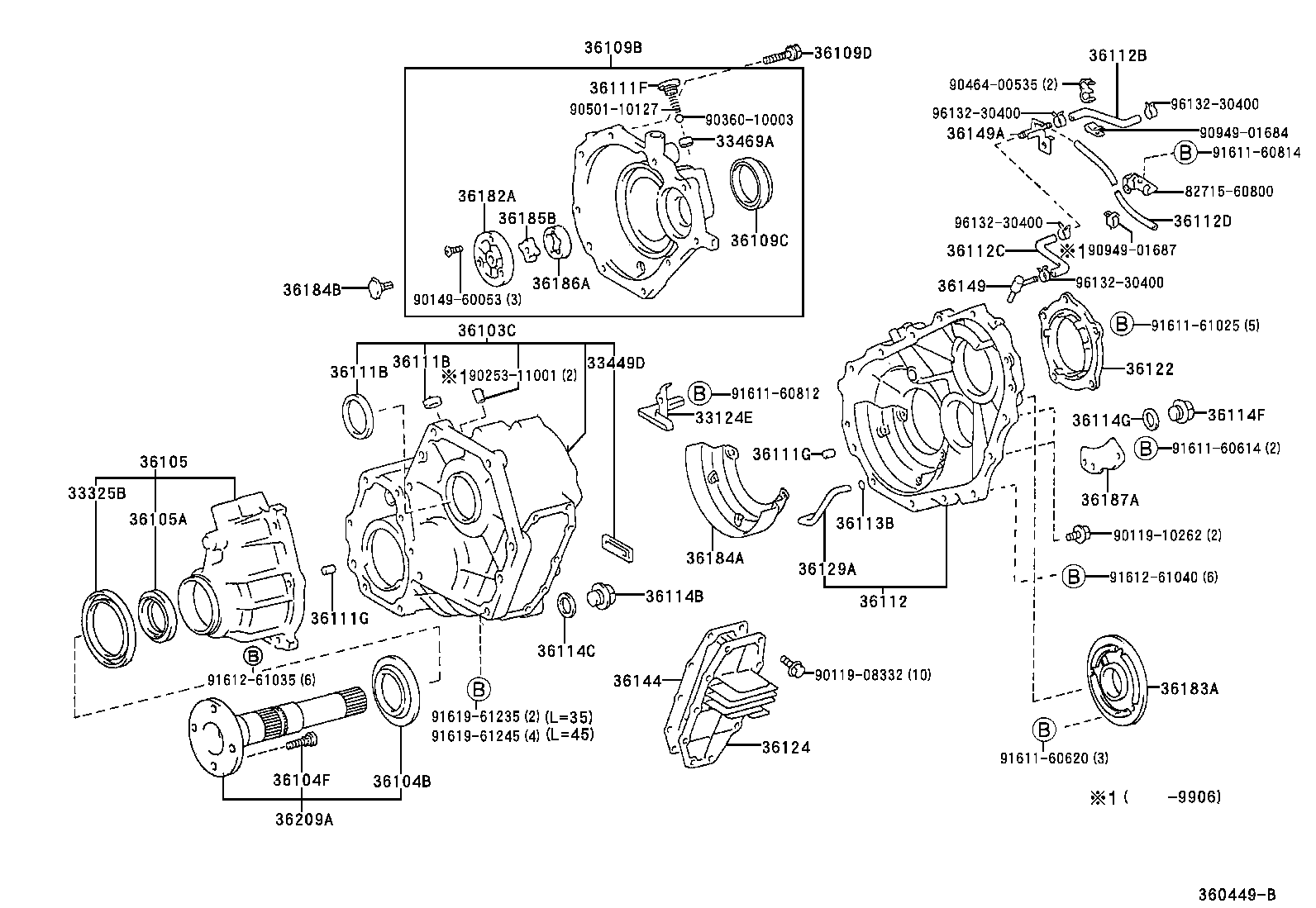

Click highlighted areas on diagram

diagram 33124E 33325B 33449D 33469A 36103C 36104B 36104F 36105 36105A 36109B 36109C 36109D 36111B 36111B 36111F 36111G 36111G 36112 36112B 36112C 36112D 36113B 36114B 36114C 36114F 36114G 36122 36124 36129A 36144 36149 36149A 36182A 36183A 36184A 36184B 36185B 36186A 36187A 36209A 8271560800 9011908332 9011910262 9014960053 9025311001 9036010003 9046400535 9050110127 9094901684 9094901687 9161160614 9161160620 9161160812 9161160814 9161161025 9161261035 9161261040 9161961235 9161961245 9613230400 9613230400 9613230400 9613230400
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-60030

BXD20

 1
33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325-60050

BXD20

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-60010

BXD20

 1
33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING
33469-60010

BXD20

 1
33469-60020

BXD20

 1
36103C - CASE, TRANSFER, FRONT
36103-60240

BXD20

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60040

BXD20

 1
36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90114-11124

BXD20

 4
90114-11003

BXD20

 4
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60020

BXD20

 1
36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)
90311-50014

BXD20

 1
36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR
36109-65010

BXD20

 1
36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)
90311-48011

BXD20

 1
36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING)
90119-10180

BXD20

*10-1.25PX75-30

 5
90119-10390

BXD20

*10-1.25PX35-30

 4
36111B - SEAL, OIL (FOR TRANSFER CASE)
90310-16001

BXD20

LEVER SIDE

 1
90311-48018

BXD20

SHAFT SIDE

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90310-16001

BXD20

LEVER SIDE

 1
90311-48018

BXD20

SHAFT SIDE

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18039

BXD20

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

BXD20

L=16,OD=12

 6
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

BXD20

L=16,OD=12

 6
36112 - CASE, TRANSFER, REAR
36104-60020

BXD20

 1
36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE)
90445-11129

BXD20

 1
36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE)
90445-11134

BXD20

 1
36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE)
90447-08151

BXD20

 1
90445-08277

BXD20

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-07012

BXD20

ID=6.0

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

BXD20

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

BXD20

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

BXD20

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

BXD20

 1
36122 - COVER, TRANSFER CASE, NO.2
36122-65020

BXD20

 1
36124 - COVER, TRANSFER POWER TAKE-OFF
36124-65010

BXD20

 1
36129A - TUBE, TRANSFER OIL
36129-60030

BXD20

 1
36144 - GASKET, TRANSFER POWER TAKE-OFF COVER
36144-60030

BXD20

 1
36149 - PIPE, TRANSFER BREATHER
36149-60010

BXD20

 1
36149A - PIPE, TRANSFER BREATHER, NO.2
36149-60020

BXD20

 1
36182A - COVER, TRANSFER OIL PUMP
36182-60011

BXD20

 1
36183A - PLATE, TRANSFER OIL PUMP
36183-60012

BXD20

 1
36184A - SEPARATOR, TRANSFER OIL
36184-60030

BXD20

 1
36184B - SHAFT, TRANSFER OIL PUMP DRIVE
36184-60060

BXD20

 1
36184-60010

BXD20

 1
36185B - ROTOR, TRANSFER OIL PUMP DRIVE
36185-60030

BXD20

 1
36186A - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-60010

BXD20

 1
36187A - STRAINR, TRANSFER OIL, NO.1
36187-60010

BXD20

 1
36209A - SHAFT, TRANSFER OUTPUT, FRONT
36209-65010

BXD20

 1
Common parts
82715-60800
90119-08332
90119-10262
90149-60053
90253-11001
90360-10003
90464-00535
90501-10127
90949-01684
90949-01687
91611-60614
91611-60620
91611-60812
91611-60814
91611-61025
91612-61035
91612-61040
91619-61235
91619-61245
96132-30400
