GRX130R-AETZH (2011)
Toyota Mark X
Production
Dec 2011
-
Aug 2012
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

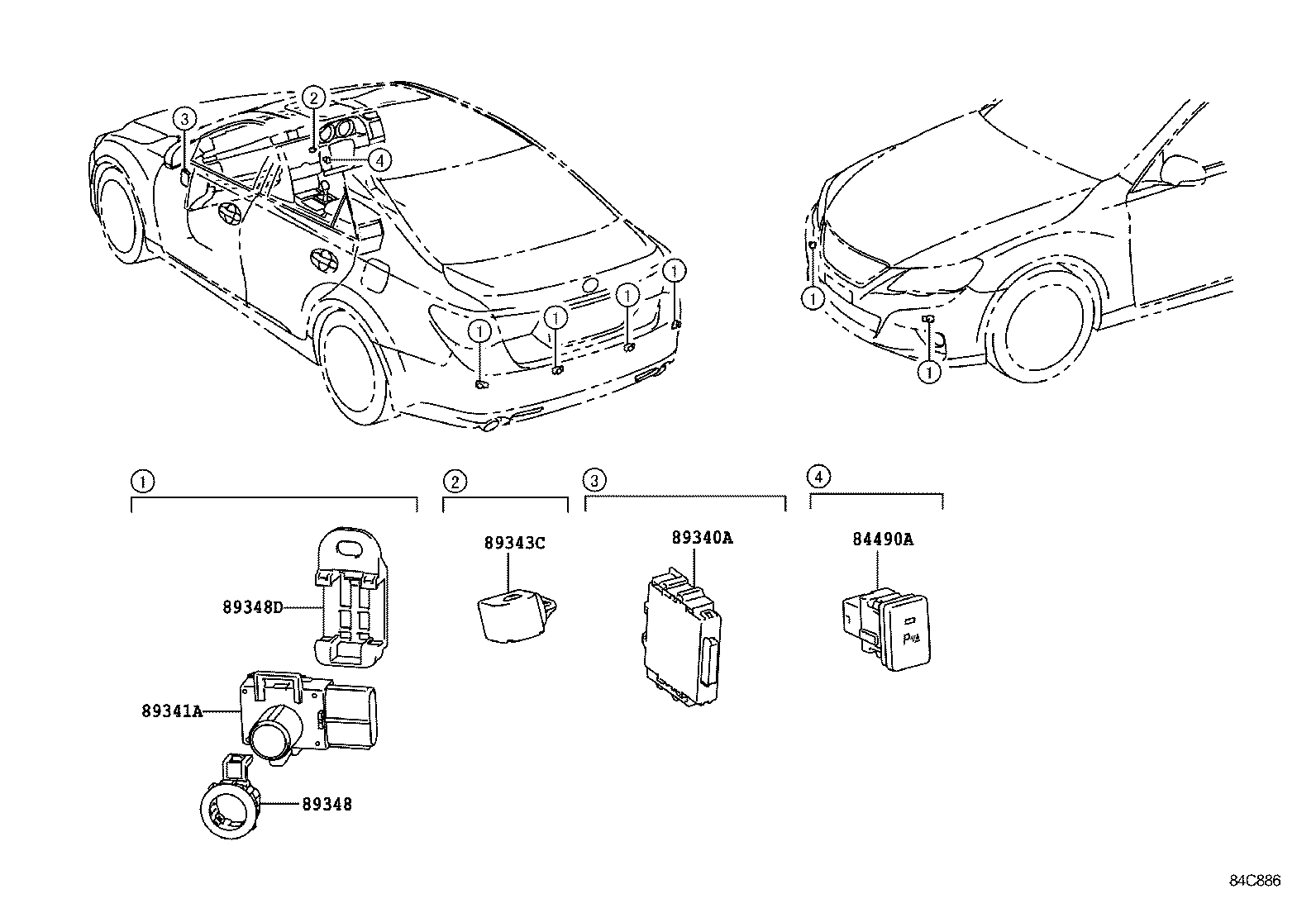

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR | ||||
| 84490-22010 |
GRX130 |
1 | ||
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-22090 |
GRX130 |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-48010B8 |
GRX130 ICE TITANIUM M.M.,1H4 |
6 | ||
| 89341-48010C2 |
GRX130 BLACK,202 |
6 | ||
| 89341-48010A5 |
GRX130 WHITE PEARL CS.,062 |
6 | ||
| 89341-48010D4 |
GRX130 GINGER RED M.M.,3R6 |
6 | ||
| 89341-48010B2 |
GRX130 SILVER ME.,1F7 |
6 | ||
| 89341-48010E3 |
GRX130 BRONZE M.M.,4T3 |
6 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-72010 |
GRX130 |
1 | ||
| 89348 - RETAINER, ULTRASONIC SENSOR, NO.1 | ||||
| 89348-33060C0 |
GRX130 BLACK,202 |
6 | ||
| 89348-33060A6 |
GRX130 WHITE PEARL CS.,062 |
6 | ||
| 89348-33060B4 |
GRX130 SILVER ME.,1F7 |
6 | ||
| 89348-33060E2 |
GRX130 BRONZE M.M.,4T3 |
6 | ||
| 89348-33060P6 |
GRX130 ICE TITANIUM M.M.,1H4 |
6 | ||
| 89348-33060D8 |
GRX130 GINGER RED M.M.,3R6 |
6 | ||
| 89348D - CLIP, ULTRASONIC SENSOR | ||||
| 89348-33090 |
GRX130 |
6 | ||
