GRX130R-AETZH (2011)

Toyota Mark X

Production Dec 2011 - Aug 2012
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

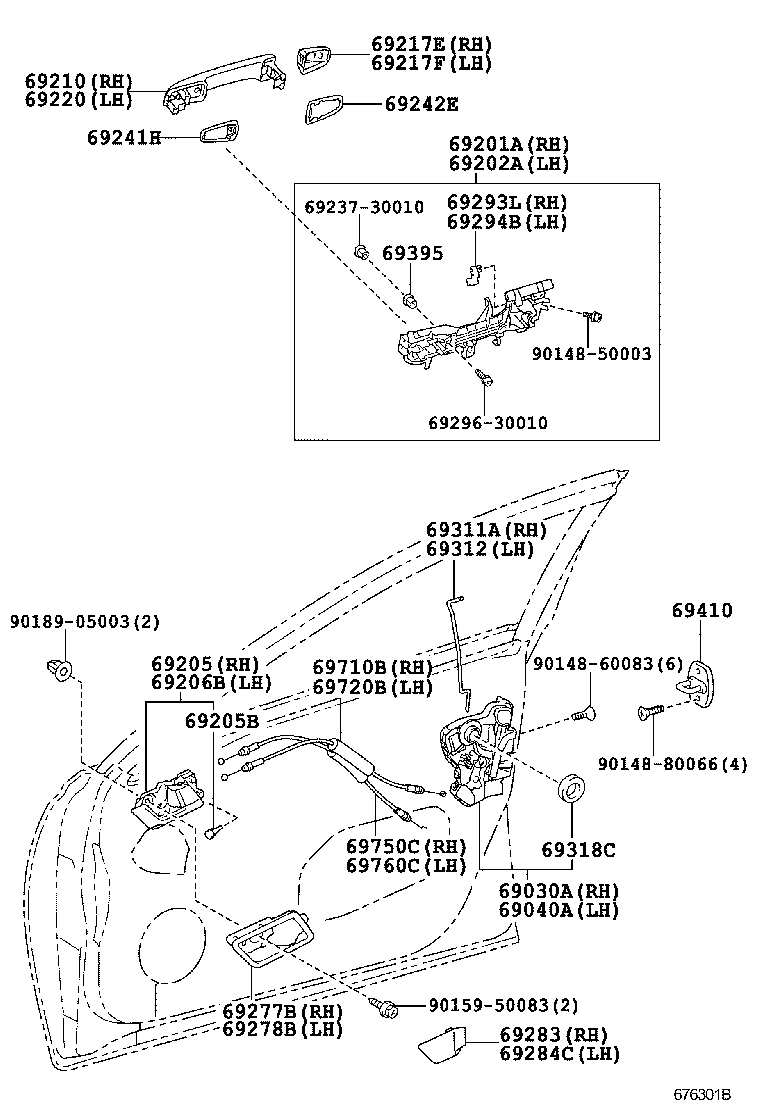

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69217F 69220 6923730010 69241H 69242E 69277B 69278B 69283 69284C 69293L 69294B 6929630010 69311A 69312 69318C 69395 69410 69710B 69720B 69750C 69760C 9014850003 9014860083 9014880066 9015950083 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-42210

GRX130

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-12560

GRX130

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-30071

GRX130

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-30061

GRX130

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30200C0

GRX130

BLACK,TRIM2#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

GRX130

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30200C0

GRX130

BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30320C0

GRX130

BLACK,202

 1
69210-30320B2

GRX130

ICE TITANIUM M.M.,1H4

 1
69210-30320D2

GRX130

GINGER RED M.M.,3R6

 1
69210-30320A1

GRX130

WHITE PEARL CS.,062

 1
69210-30320E2

GRX130

BRONZE M.M.,4T3

 1
69210-30320B0

GRX130

SILVER ME.,1F7

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69250-30030E1

GRX130

BRONZE M.M.,4T3

 1
69250-30030A1

GRX130

WHITE PEARL CS.,062

 1
69250-30030B2

GRX130

ICE TITANIUM M.M.,1H4

 1
69250-30030C0

GRX130

BLACK,202

 1
69250-30030D1

GRX130

GINGER RED M.M.,3R6

 1
69250-30030B0

GRX130

SILVER ME.,1F7

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69250-30040D1

GRX130

GINGER RED M.M.,3R6

 1
69250-30040C0

GRX130

BLACK,202

 1
69250-30040A1

GRX130

WHITE PEARL CS.,062

 1
69250-30040B2

GRX130

ICE TITANIUM M.M.,1H4

 1
69250-30040E1

GRX130

BRONZE M.M.,4T3

 1
69250-30040B0

GRX130

SILVER ME.,1F7

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-30320B0

GRX130

SILVER ME.,1F7

 1
69210-30320A1

GRX130

WHITE PEARL CS.,062

 1
69210-30320B2

GRX130

ICE TITANIUM M.M.,1H4

 1
69210-30320E2

GRX130

BRONZE M.M.,4T3

 1
69210-30320D2

GRX130

GINGER RED M.M.,3R6

 1
69210-30320C0

GRX130

BLACK,202

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-30110

GRX130

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-30090

GRX130

 2
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-22120C0

GRX130

BLACK,TRIM2#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-22090C0

GRX130

BLACK,TRIM2#

 1
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-20020C0

GRX130

BLACK,TRIM2#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-20010C0

GRX130

BLACK,TRIM2#

 1
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

GRX130

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

GRX130

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-22130

GRX130

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-22130

GRX130

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GRX130

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69239-30010

GRX130

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

GRX130

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-22090

GRX130

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-22090

GRX130

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-22080

GRX130

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-22080

GRX130

 1
Common parts
69237-30010
69296-30010
90148-50003
90148-60083
90148-80066
90159-50083
90189-05003
