GRX130R-AETZH (2011)
Toyota Mark X
Production
Dec 2011
-
Aug 2012
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

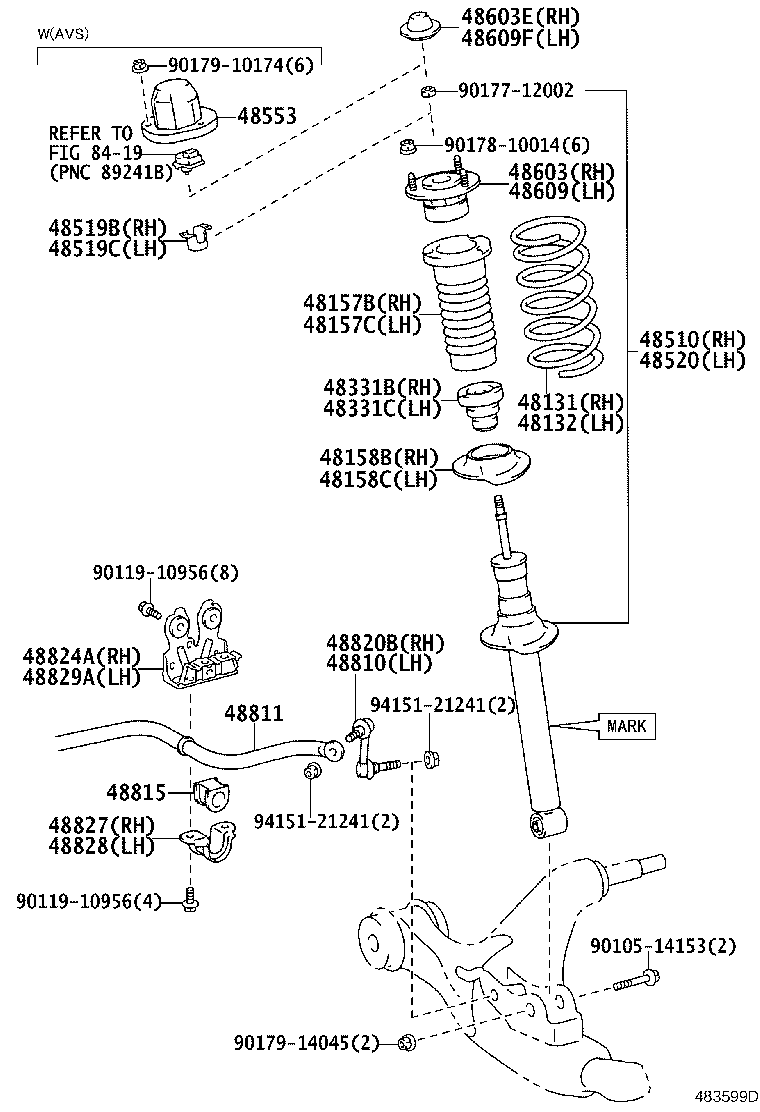

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-22A50 |
GRX130 S PACKAGE |
1 | ||
| 48131-22A40 |
GRX130 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-22A40 |
GRX130 |
1 | ||
| 48131-22A50 |
GRX130 S PACKAGE |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30250 |
GRX130 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30250 |
GRX130 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GRX130 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GRX130 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-30230 |
GRX130 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-30230 |
GRX130 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80551 |
GRX130 MARK 48510-22A81,S PACKAGE |
1 | ||
| 48510-80552 |
GRX130 MARK 48510-22A91 |
1 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-30030 |
GRX130 S PACKAGE |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-30030 |
GRX130 S PACKAGE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80274 |
GRX130 MARK 48520-22701 |
1 | ||
| 48520-80273 |
GRX130 MARK 48520-22691,S PACKAGE |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-30100 |
GRX130 S PACKAGE |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-22130 |
GRX130 S PACKAGE |
1 | ||
| 48609-22110 |
GRX130 |
1 | ||
| 48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90950-01659 |
GRX130 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-22110 |
GRX130 |
1 | ||
| 48609-22130 |
GRX130 S PACKAGE |
1 | ||
| 48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90950-01659 |
GRX130 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30070 |
GRX130 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30620 |
GRX130 S PACKAGE |
1 | ||
| 48811-22610 |
GRX130 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-22270 |
GRX130 |
2 | ||
| 48815-30551 |
GRX130 S PACKAGE |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30090 |
GRX130 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30130 |
GRX130 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-30130 |
GRX130 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-30130 |
GRX130 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30130 |
GRX130 |
1 | ||
| Common parts | ||||
| 90105-14153 | ||||
| 90119-10956 | ||||
| 90177-12002 | ||||
| 90178-10014 | ||||
| 90179-10174 | ||||
| 90179-14045 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 8419 | ||||
