YM35RV-PRSBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9201)4FC

Click highlighted areas on diagram

A40D

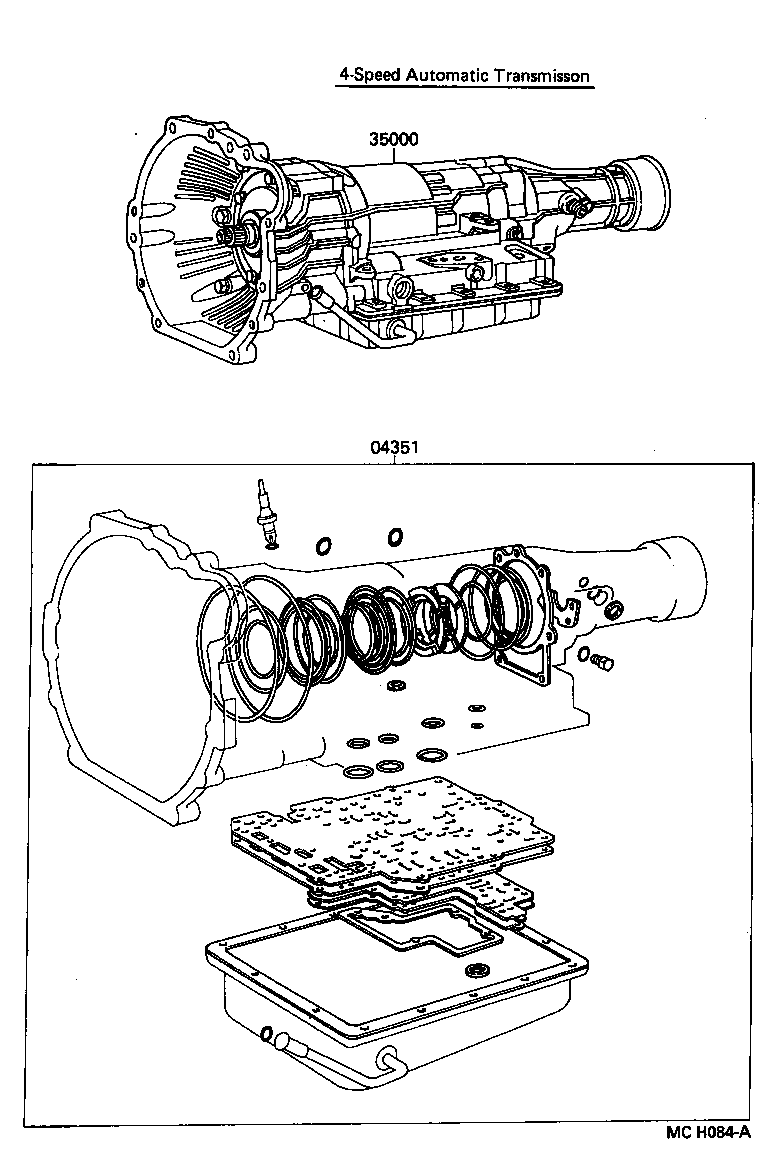

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22060

YM30,35..4FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-27150

YM30,35..4FC

 1
