YM35RV-PRSBEQ (1985)
Toyota Liteace

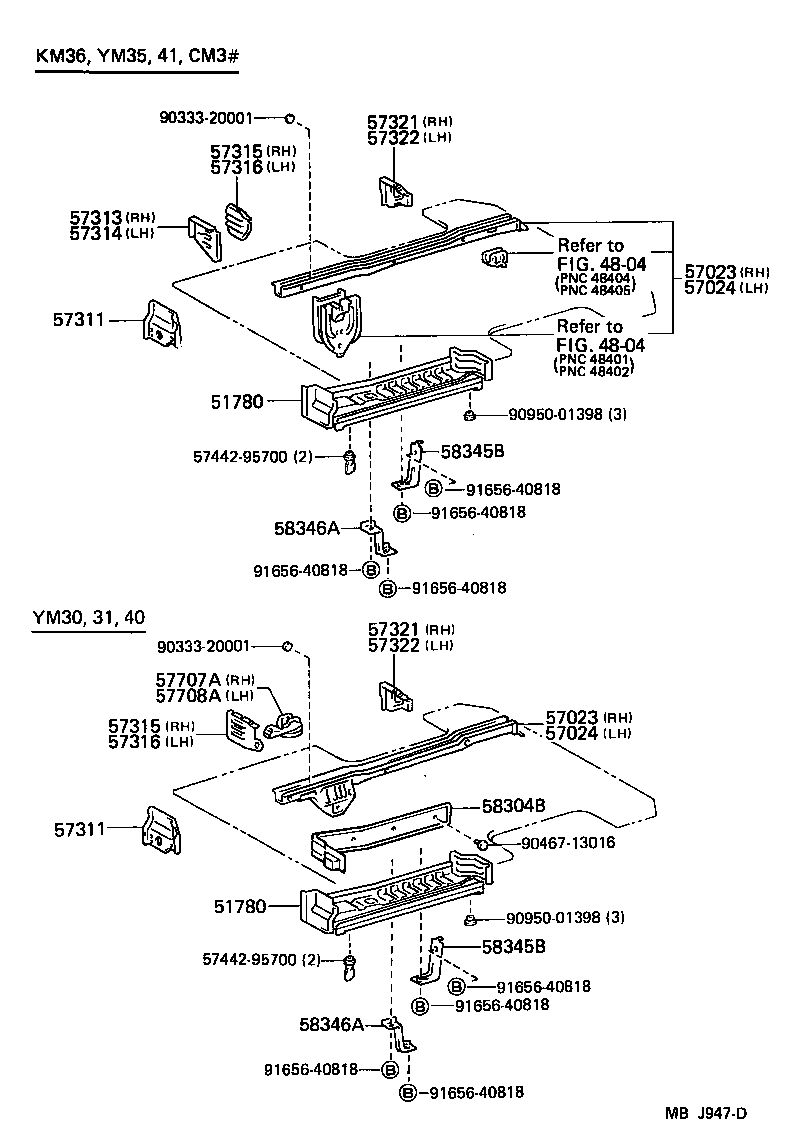

ILLUST NO. 2 OF 2(8509- )KM36..RHD..V4D ; (8509- )CM3#,YM3#,4#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51780 - STEP ASSY, FRONT, LH | ||||
| 51740-95702 |
KM36..03S,05S;KM36..RHD..06S;CM3#,YM31,35,41..RHD |
1 | ||
| 51740-95706 |
KM36,YM35..ARL |
1 | ||
| 51780 - STEP ASSY, FRONT, LH | ||||
| 51740-95702 |
KM36..03S,05S;KM36..RHD..06S;CM3#,YM31,35,41..RHD |
1 | ||
| 51740-95706 |
KM36,YM35..ARL |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95712 |
CM3#,KM3#,YM35 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95712 |
CM3#,KM3#,YM35 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95711 |
CM3#,KM3#,YM35 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95711 |
CM3#,KM3#,YM35 |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57311-95707 |
KM36..RHD..V4D;CM3#,YM3#,4#..RHD |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57311-95707 |
KM36..RHD..V4D;CM3#,YM3#,4#..RHD |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57315-95703 |
CM3#,KM36,YM35..RHD..V4D |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57316-95703 |
KM36..03S,05S;CM3#,YM35..RHD;KM36..RHD..06S |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57303-95702 |
CM35,KM36,YM35..ARL |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57303-95702 |
CM35,KM36,YM35..ARL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57304-95700 |
CM35,KM36,YM35..ARL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57304-95700 |
CM35,KM36,YM35..ARL |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57307-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57307-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 57322 - OUTRIGGER, NO.4 LH | ||||
| 57308-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 57322 - OUTRIGGER, NO.4 LH | ||||
| 57308-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-95700 |
YM3#,4# |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-95700 |
YM3#,4# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-95700 |
YM3#,4# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-95700 |
YM3#,4# |
1 | ||
| Common parts | ||||
| 57442-95700 | ||||
| 90333-20001 | ||||
| 90467-13016 | ||||
| 90950-01398 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 4804 | ||||

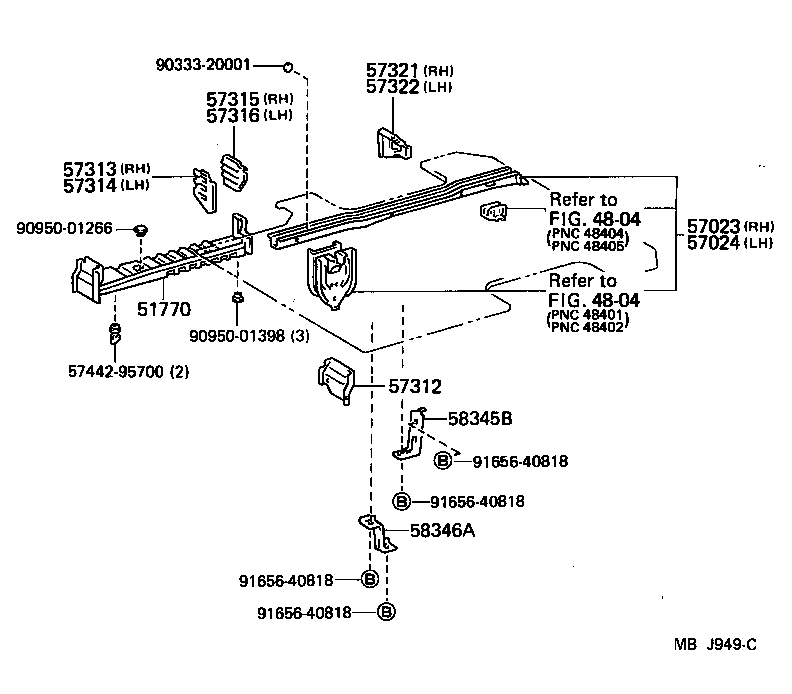

ILLUST NO. 2 OF 2(8509- )KM36..V4D ; (8509- )CM3#,KM37,YM31,35,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95712 |
CM3#,KM3#,YM35 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95711 |
CM3#,KM3#,YM35 |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57315-95703 |
CM3#,KM36,YM35..RHD..V4D |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57316-95703 |
KM36..03S,05S;CM3#,YM35..RHD;KM36..RHD..06S |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57303-95702 |
CM35,KM36,YM35..ARL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57304-95700 |
CM35,KM36,YM35..ARL |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57307-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 57322 - OUTRIGGER, NO.4 LH | ||||
| 57308-95704 |
CM35,KM36,YM35,41..ARL |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-95700 |
YM3#,4# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-95700 |
YM3#,4# |
1 | ||
| Common parts | ||||
| 57442-95700 | ||||
| 90333-20001 | ||||
| 90950-01266 | ||||
| 90950-01398 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 4804 | ||||

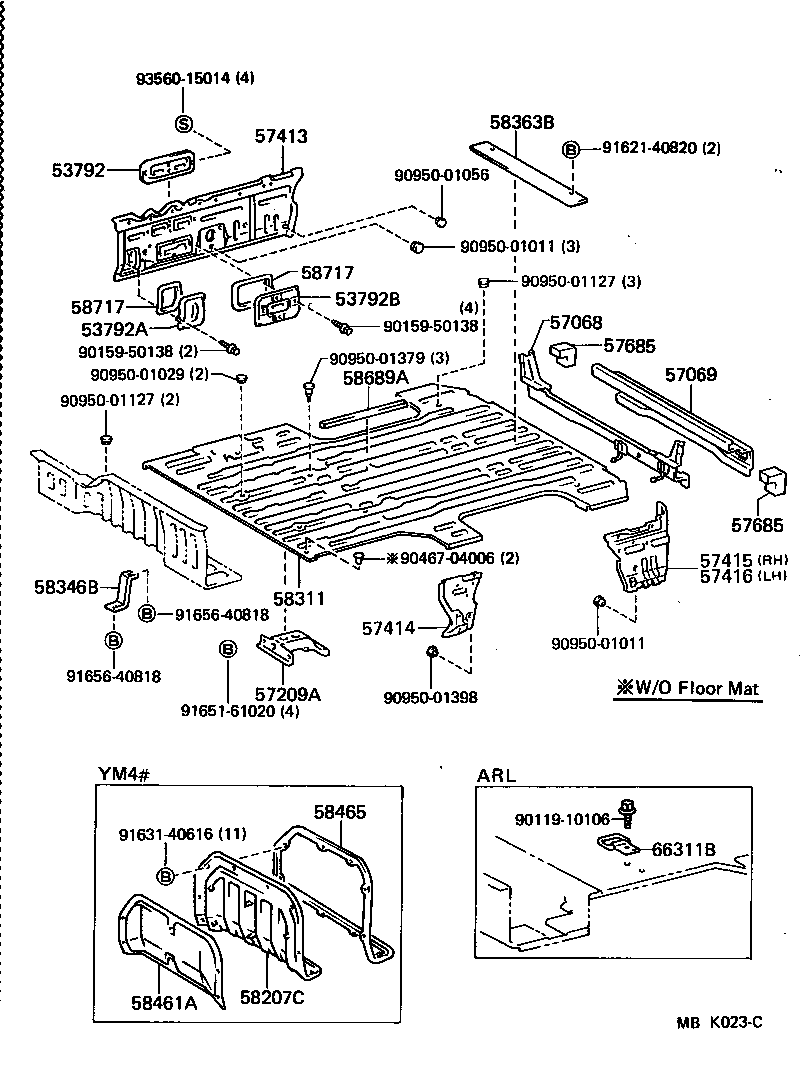

ILLUST NO. 1 OF 2(8509- )KM36..RHD..V4D ; (8509- )CM3#,YM3#,4#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95702 |
YM30,4#..ARL |
1 | ||
| 57068-95700 |
CM3#,KM3#,YM31,35 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95701 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-95703 |
YM30,35..4FC |
1 | ||
| 57209-95712 |
YM30,35..4FC |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95730 |
CM35,KM36,YM35..VSP..ARL |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95718 |
CM35,KM36,YM35..VSP..ARL |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95705 |
CM3#,KM3#,YM31,35,41 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-95705 |
CM3#,KM3#,YM31,35,41 |
1 | ||
| 57685 - DUST PROOF, REAR FLOOR CROSSMEMBER | ||||
| 57685-95700 |
CM35,KM3#,YM3#,4# |
2 | ||
| 57685 - DUST PROOF, REAR FLOOR CROSSMEMBER | ||||
| 57685-95700 |
CM35,KM3#,YM3#,4# |
2 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95G16 |
CM35,KM36,YM35..VSP..ARL |
1 | ||
| 58311-95G27 |
YM35..4FC |
1 | ||
| 58363B - BALANCER, REAR FLOOR, NO.1 | ||||
| 58363-95700 |
CM35,KM36,YM35,41..ARL RR |
1 | ||
| 58363-95701 |
CM35,KM36,YM35,41..ARL FR |
1 | ||
| 66311B - HOOK, ROPE | ||||
| 66311-95J00 |
CM35,KM36,YM35,41..ARL |
6 | ||
| Common parts | ||||
| 90119-10106 | ||||
| 90159-50138 | ||||
| 90467-04006 | ||||
| 90950-01011 | ||||
| 90950-01029 | ||||
| 90950-01056 | ||||
| 90950-01127 | ||||
| 90950-01379 | ||||
| 90950-01398 | ||||
| 91621-40820 | ||||
| 91631-40616 | ||||
| 91651-61020 | ||||
| 91656-40818 | ||||
| 93560-15014 | ||||
