YM35RV-MRSBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

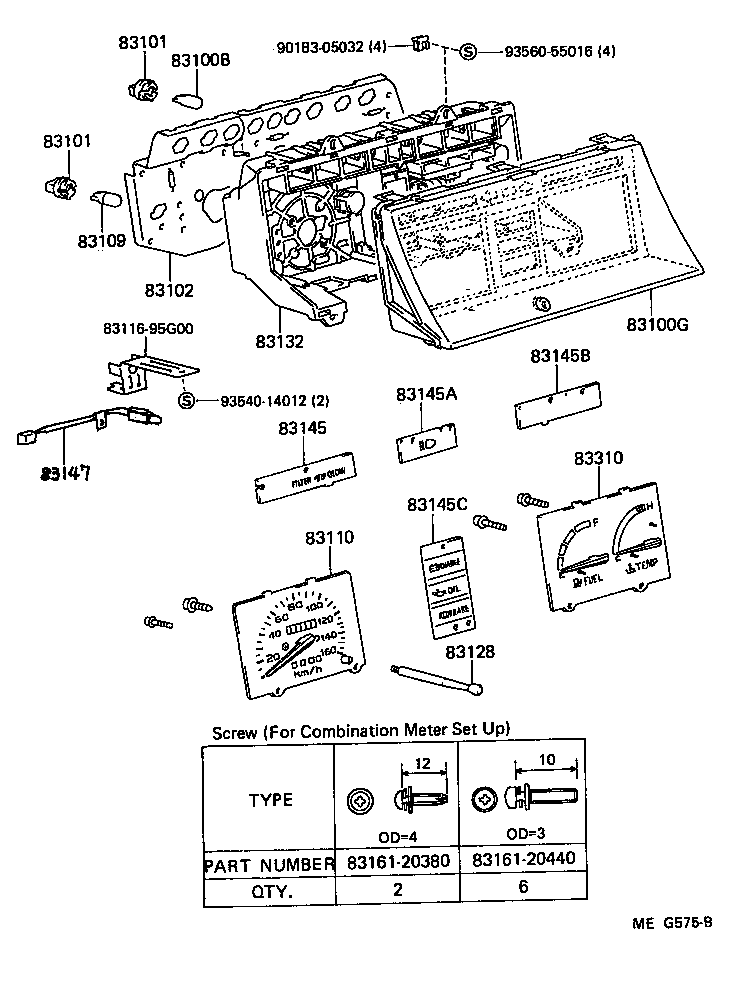

ILLUST NO. 1 OF 2(8509-8608)YM30,40 ; (8509- )CM3#,KM36,YM31,35,41..RHD ; (8608- )YM30..GEN

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83109 83110 8311695G00 83128 83132 83145 83145A 83145B 83145C 83147 8316120380 8316120440 83310 9018305032 9354014012 9356055016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CM3#,KM3#,YM3#,4#

12V 3.4W,12V 3.4W

 9
83100G - GLASS, COMBINATION METER
83134-95706

CM3#,KM36,YM31,35,41..RHD

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM3#,KM3#,YM3#,4#

BULB:12V 3.4W

 9
83101-20070

CM3#,KM3#,YM3#,4#

BULB:GREEN CAP,12V 3.4W

 4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM3#,KM3#,YM3#,4#

BULB:12V 3.4W

 9
83101-20070

CM3#,KM3#,YM3#,4#

BULB:GREEN CAP,12V 3.4W

 4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95719

KM36,YM30,35,4#..ARL

 1
83247-95719

KM36,YM30,35,41..ARL

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

CM3#,KM3#,YM3#,4#

12V3.4W W(GREEN CAP),GREEN CAP,12V 3.4W

 4
83110 - SPEEDOMETER ASSY
83110-95724

CM3#,KM36,YM31,35,41..RHD

KM

 1
83110-95719

KM36,YM30,35,4#..ARL

 1
83110-95719

KM36,YM35,41..ARL

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM3#,KM36,YM3#,4#..RHD

 1
83132 - CASE, COMBINATION METER
83132-95J02

CM3#,KM36,YM31,35,41..RHD

 1
83145 - LENS, METER, NO.1
83145-95721

YM31,35,41;KM36..RHD..GEN

 1
83145A - LENS, METER, NO.2
83145-95722

KM36,YM31,35,41..RHD

 1
83145B - LENS, METER, NO.3
83145-95740

CM35,KM36,YM35,41..MTM..ARL

 1
83145-95740

CM35,KM36,YM30,35,4#..MTM..ARL

 1
83145C - LENS, METER, NO.4
83145-95741

CM35,KM36,YM30,35,4#..ARL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95711

CM35,KM36,YM35,41..ARL

 1
83243-95711

CM35,KM36,YM30,35,4#..ARL

 1
Common parts
83116-95G00
83161-20380
83161-20440
90183-05032
93540-14012
93560-55016

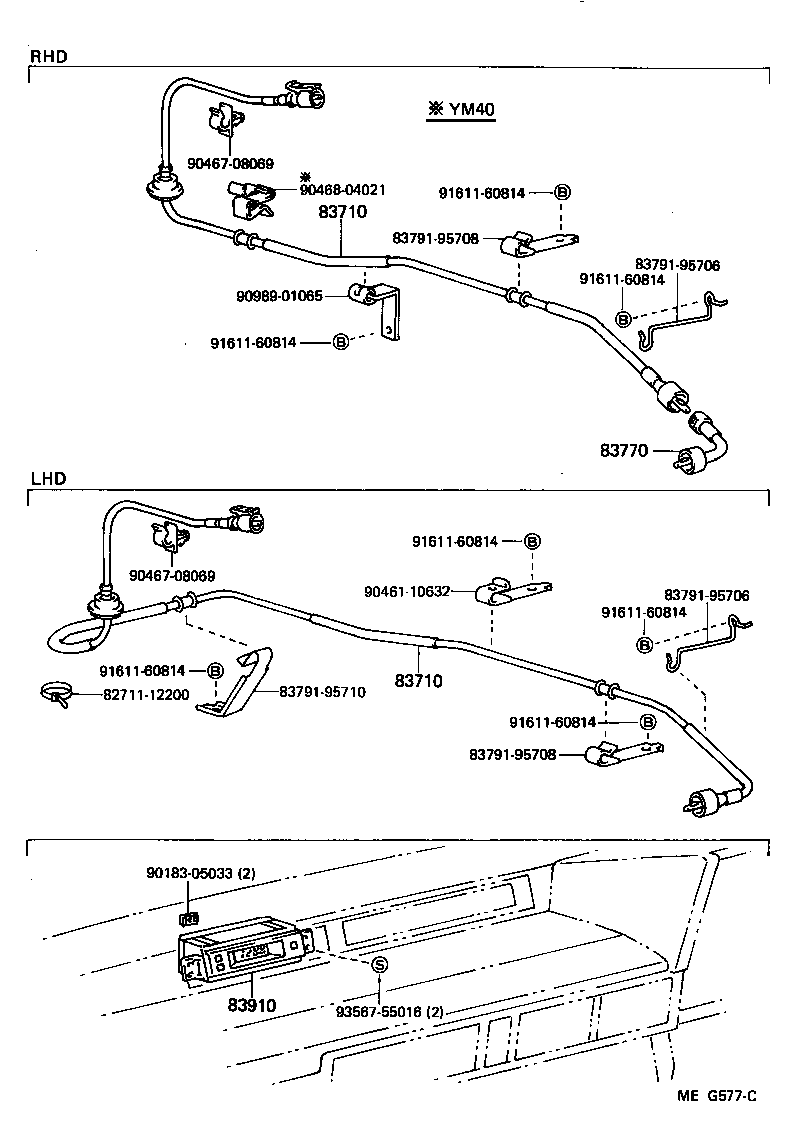

ILLUST NO. 2 OF 2(8509- )

Click highlighted areas on diagram

diagram 8271112200 83710 83710 83770 8379195706 8379195706 8379195708 8379195708 8379195710 83910 9018305033 9046110632 9046708069 9046708069 9046804021 9098901065 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9356755016
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95719

CM3#,YM3#..4FC,5F

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95719

CM3#,YM3#..4FC,5F

 1
83910 - CLOCK ASSY
83910-95705

CM3#,KM3#,YM3#,4#

 1
Common parts
82711-12200
83791-95706
83791-95708
83791-95710
90183-05033
90461-10632
90467-08069
90468-04021
90989-01065
91611-60814
93567-55016
